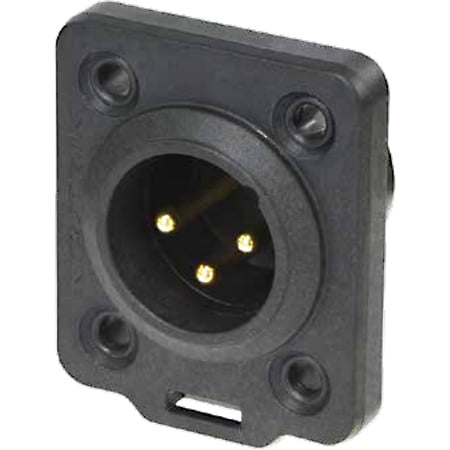

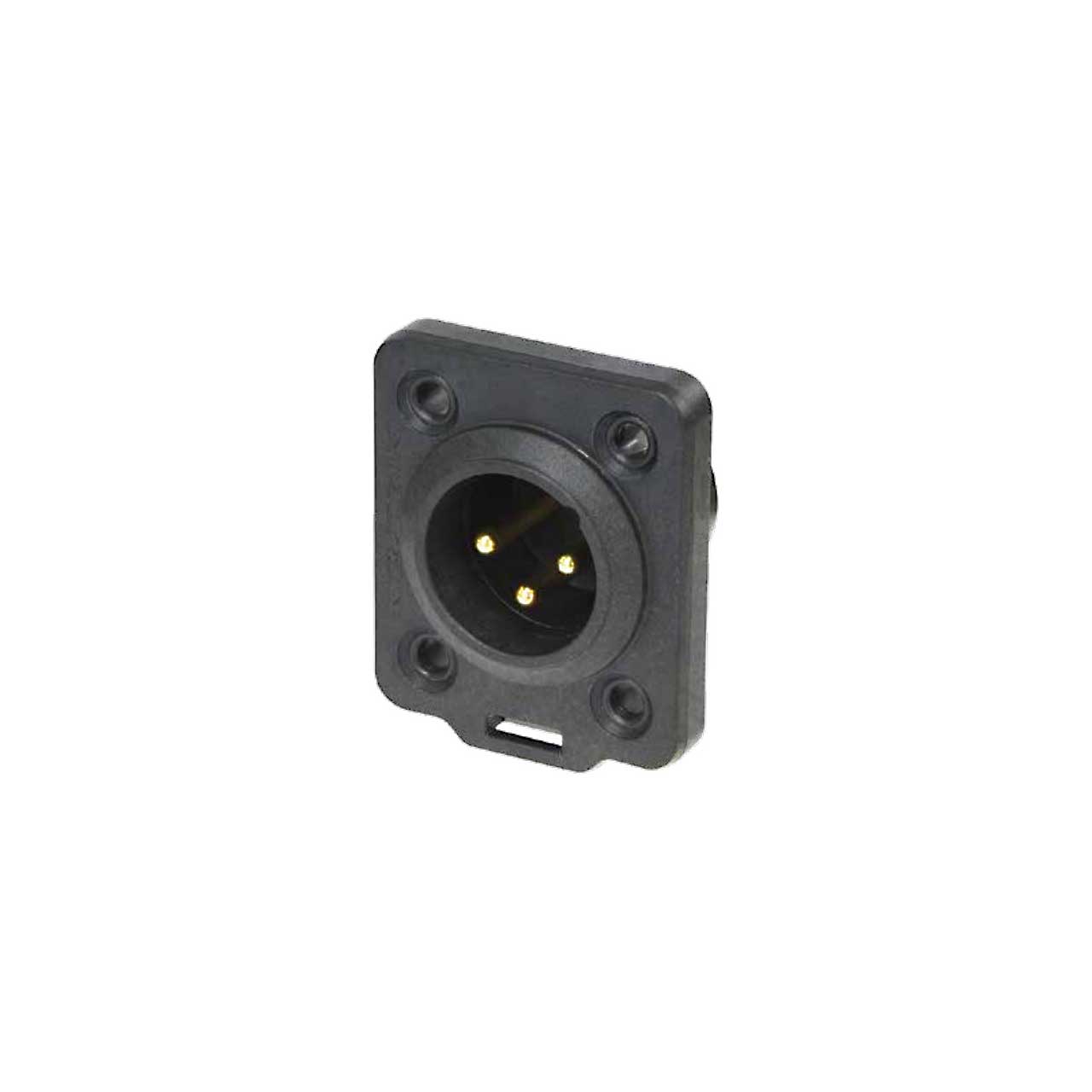

Neutrik NC3MDX-TOPS 3 pole male nickel/gold chassis connector True Outdoor Protected (TOP)

ITEM #: NC3MDX-TOP MFG #: NC3MDX-TOP

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$6.75

Our Price:

$5.79

Availability: In Stock
iAvailability Description Popup


NC3MDX-TOP - Overview

The entertainment industry is constantly evolving with increasing demands on interconnection systems. Neutrik took up the challenge and developed a new line of TRUE OUTDOOR PROTECTION (TOP) products for demanding outdoor applications. These ruggedized sealed connectors feature not only IP protection but also UV resistance approved according to UL50E. For safety reasons, connectors have to be protected from outside influences like dust, foreign objects, moisture, water and sunlight, particularly in harsh enviorments. Neutrik TOP connector series handles it all.

  • Features:

    • Heavy-duty sealed XLR connector range
    • 3 pin cable connector
    • Outdoor protection acc. IP65 and UL50E
    • Maintain sealing when in use and when
    • disconnected
    • Uses high impact UV resistant materials per UL
    • Gold plated contacts
    • Optional dust protection cap

  • Specifications:

    • Electrical
    • Capacitance between contacts = 4 pF
    • Contact resistance = 5 mO
    • Dielectric strength 1,5 kVdc
    • Insulation resistance > 10 GO (initial)
    • Rated current per contact 16 A
    • Rated voltage < 50 V
      Mechanical
    • Insertion force = 220 N
    • Withdrawal force = 20 N
    • Lifetime > 1000 mating cycles
    • Wiring Solder contacts
    • Locking device Latch lock
    • Mounting direction Front mounting
    • Chassis shape D
      Material
    • Contact plating 0.2 æm Au over 2 æm Ni
    • Contacts Brass (CuZn39Pb3)
    • Insert Polyamide (PA 6.6 30 % GR)
    • Locking element Stainless steel
    • Gasket TPE
    • Shell Polyamide (PA 6.6 30 % GR)
      Environmental
    • Flammability UL94 V-0
    • Standard compliance IEC 61076-2-103
    • Protection class IP65, UL50E
    • Solderability Complies with IEC 68-2-20
    • Temperature range -30 °C to +80 °C
