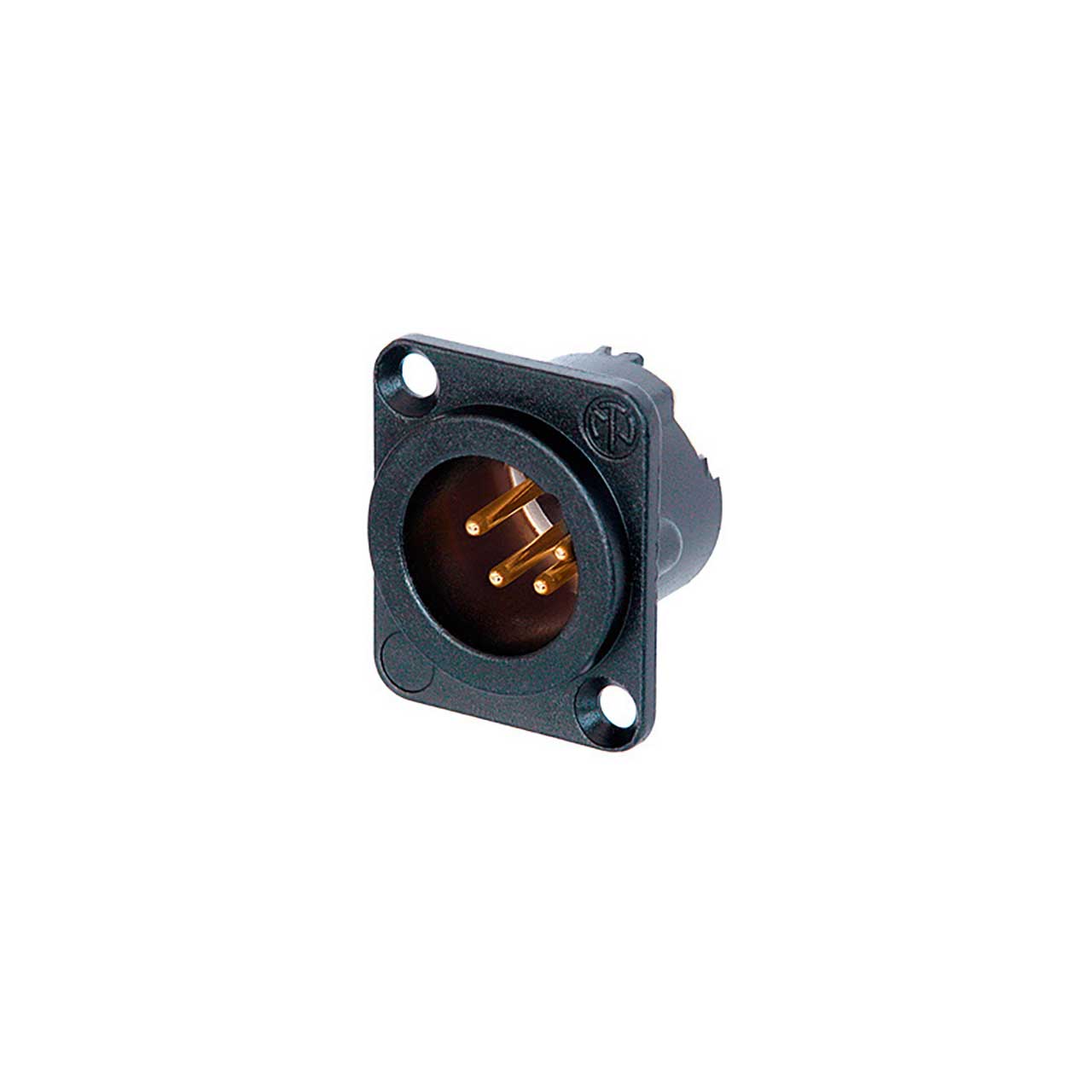

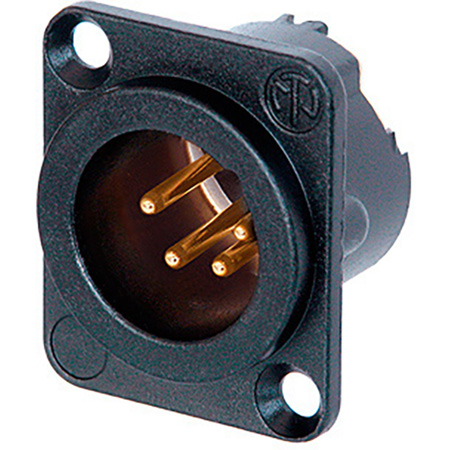

Neutrik NC4MD-LX-B 4-Pin XLR Male Panel/Chassis Mount Connector - Duplex Ground - Black/Gold

NC4MD-LX-B - Overview

• Features:

  • All metal housing offers best overall RF protection and electromagnetic shielding
  • Duplex ground contact for excellent contact integrity between chassis and cable connector
  • Male connector's retention bar replaces plastic design with all metal version improving pull-out force
  • Larger solder contacts for easier termination
  • Optional connection to easily join pin1 to chassis ground
  • D-style housing provides installation compatibility with industry standard D mounting dimensions


• Specifications:

  • Product
  • Title: NC4MD-LX-B
  • Connection Type: XLR
  • Gender: male


  • Electrical
  • Capacitance between contacts: < 7 pF
  • Contact resistance: 5 mΩ (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 ΩO (initial)
  • Rated current per contact: 10 A
  • Rated voltage: < 50 V


  • Mechanical
  • Insertion force: < 20 N
  • Withdrawal force: < 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.5 mm²
  • Wiresize: max. 16 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Chassis shape: D


  • Material
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn35Pb2)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium


  • Environmental
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
