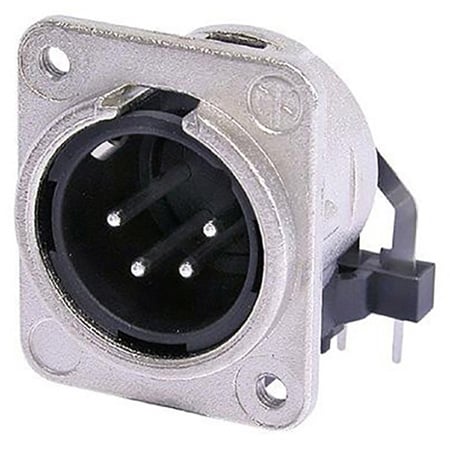

Neutrik NC4MDM3-H 4-Pin XLR Male Horizontal PCB M3 Mount - Nickel/Silver

NC4MDM3-H - Overview

• Features:

  • Robust "D" metal shell
  • PCB mount termination
  • Standardized D sized 24 mm panel cutout


• Specifications:

  • Electrical
  • Capacitance Between Contacts: ≤7 pF
  • Contact Resistance: ≤5mΩ
  • Dielectric Strength: 1,5 kVdc
  • Insulation Resistance: >10GΩ (initial)
  • Rated Current per Contact: 10A
  • Rated Voltage: <50V

    Mechanical
  • Insertion Force: ≤20 N
  • Withdrawal Force: ≤20 N
  • Lifetime: >1000 mating cycles
  • Wiring: Horizontal PCB mount
  • Locking Device: Latch lock
  • Mounting Direction: Rear mounting
  • Chassis Shape: D
  • Mounting: Mounting holes with M3 threads

    Material
  • Contact Plating: 2µm Ag over 2µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA66)
  • Locking Element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Nickel

    Environmental
  • Approvals: UL
  • Flammability: UL 94 V-0
  • Standard Compliance: IEC 61076-2-103
  • Protection Class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)
