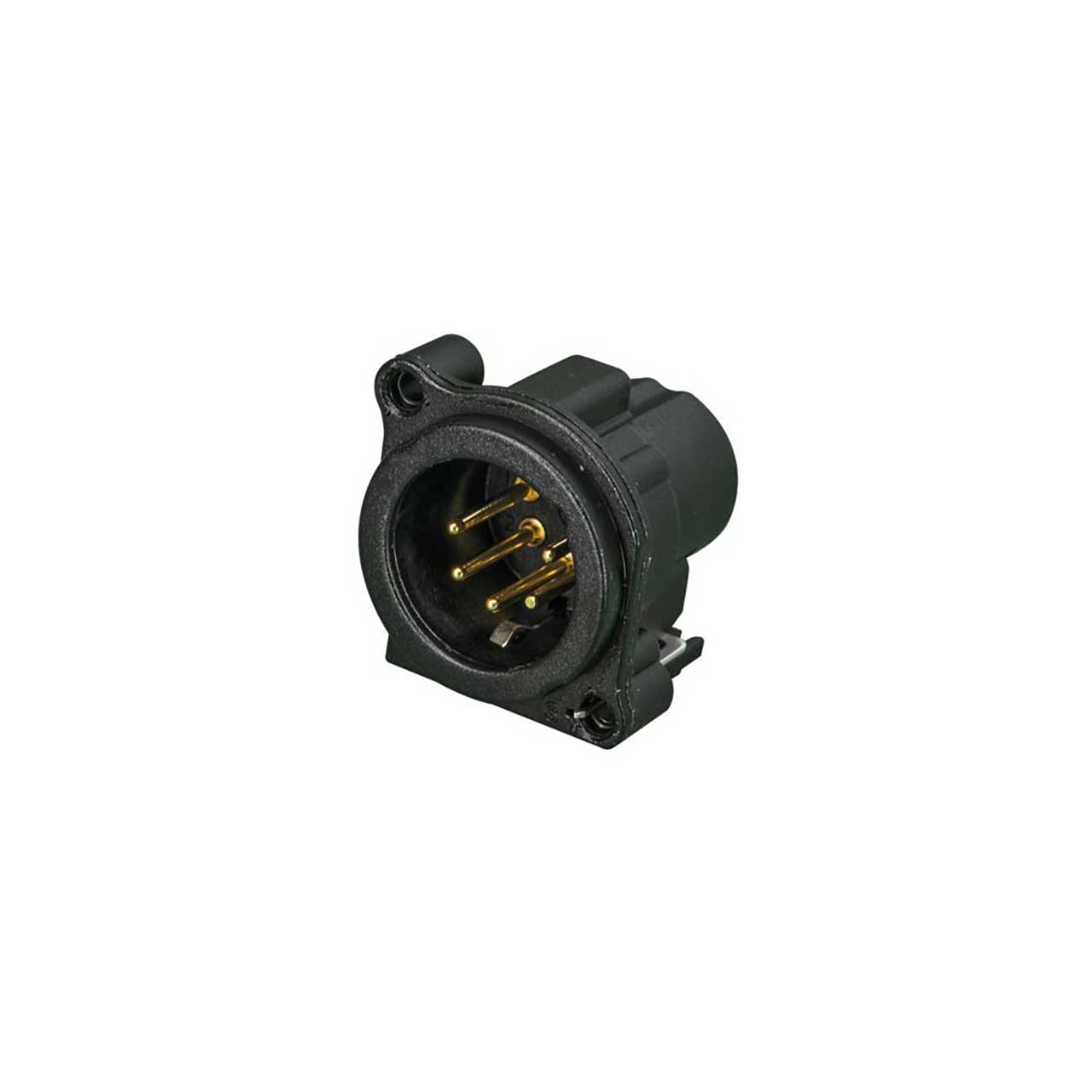

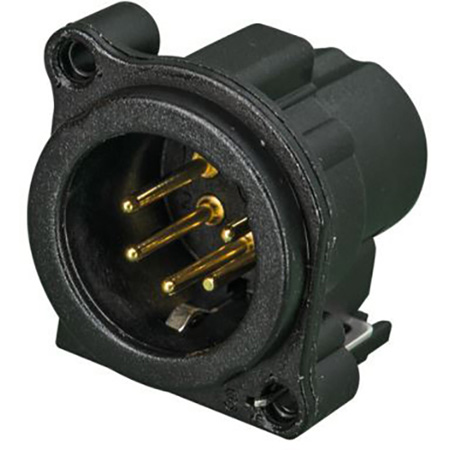

Neutrik NC5MBV-B 5-Pin XLR Male - Vertical PCB Mount Connector - Black/Gold

NC5MBV-B - Overview

• Features:

  • Smallest XLR receptacles, highest packing density
  • Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
  • Housing flammability UL94HB


• Specifications:

  • Connection Type: XLR
  • Gender: male


  • Electrical
  • Capacitance between contacts: ≤ 7 pF
  • Contact resistance: ≤ 5 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 3 A
  • Rated voltage: < 50 V
  • Grounding Options: Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1


  • Mechanical
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: vertical PCB mount
  • Locking device: Latch lock
  • Mounting direction: Rear mounting
  • Chassis shape: B
  • Mounting: A-Screw


  • Material
  • Contacts: Brass (CuZn35Pb2)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Ring: Zinc diecast (ZnAl4Cu1)
  • Flange: Black Chromium


  • Environmental
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
