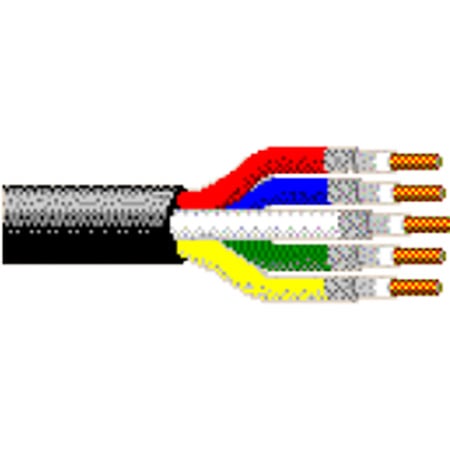

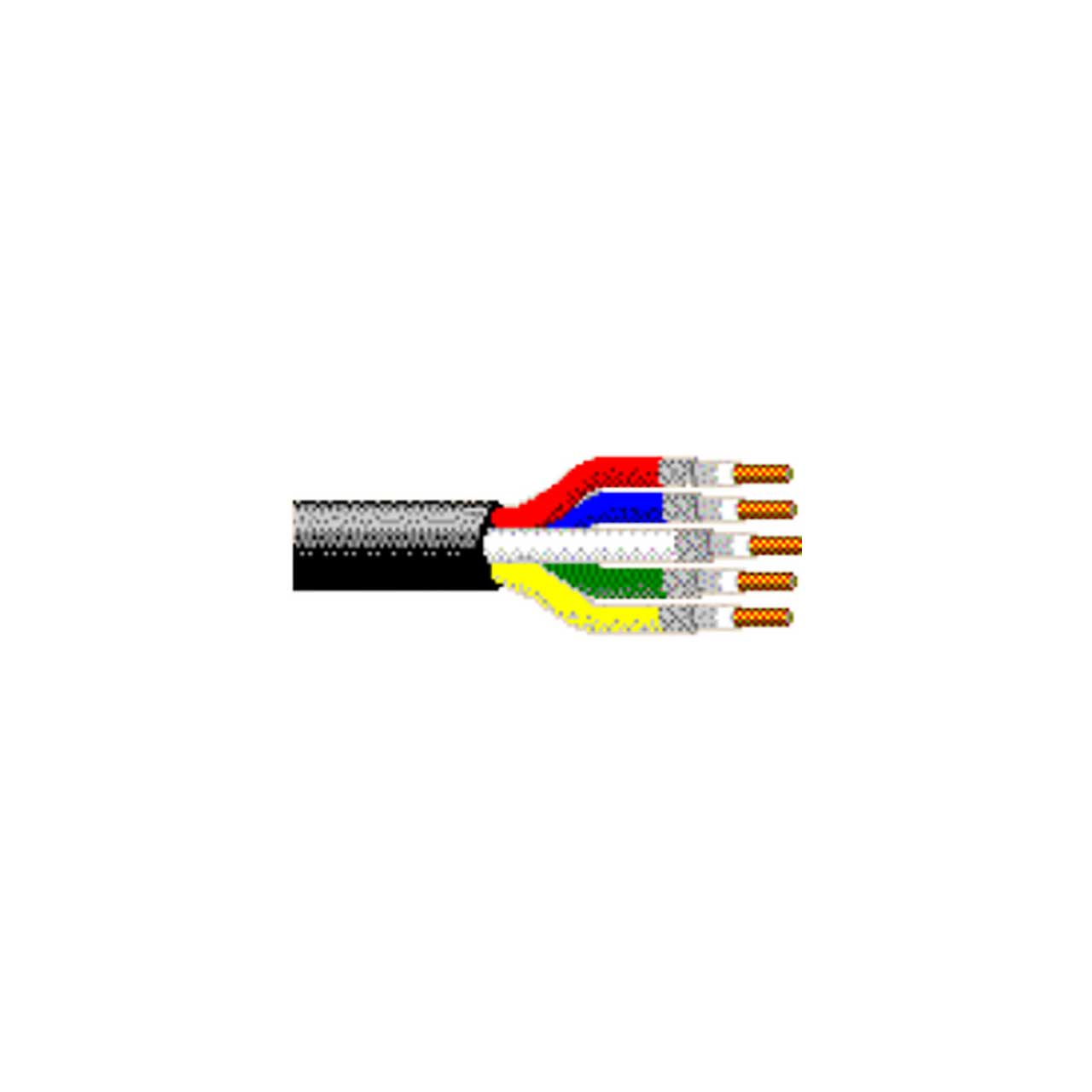

Belden 7789A VideoFLEX 23AWG Sub-miniature 5 Channel HD/SDI Digital Coax Snake Cable - Per Foot

ITEM #: BL-7789A MFG #: 7789A

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$8.20

Our Price:

$7.03

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

7789A - Overview

Belden 7789A is a Digital Coax Snake Cable. It's riser-CMR rated and features 5-Sub-miniature 23 AWG channels with solid bare copper conductors, a foam HDPE core, Duofoil® +95% tinned copper braid and a PVC jacket. It's perfect for SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p, SDI/HDTV Digital Video, High Definition (HD) and Standard Definition (SDI).

  • Features:

    • Digital Coax Snake Cable
    • Riser-CMR
    • 5-Sub-miniature 23 AWG
    • Solid bare copper conductors
    • Foam HDPE core
    • Duofoil® +95% tinned copper braid
    • PVC jacket


  • Specifications:

    • Operating Temperature Range: -35°C To +75°C
    • UL Temperature Rating: 60°C
    • Non-UL Temperature Rating: 75°C
    • Bulk Cable Weight: 136 lbs/1000 ft.
    • Max. Recommended Pulling Tension: 180 lbs.
    • Min. Bend Radius/Minor Axis: 5.500 in.
    • Bundled Number of Coax: 5
    • RG Type: Mini
    • AWG: 23
    • Stranding: solid
    • Conductor Material: BC - Bare Copper
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Inner Shield Material: Aluminum Foil-Polyester Tape-Aluminum Foil/TC - Tinned Copper
    • Inner Jacket Material: PVC - Polyvinyl Chloride
    • Outer Shield Material: Unshielded
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Plenum (Y/N): N
    • Nom. Characteristic Impedance: 75 +/- 3Ω
