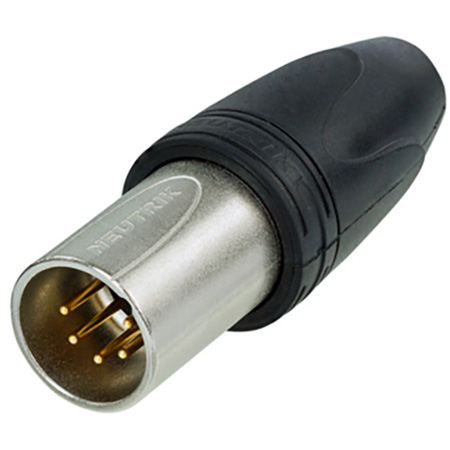

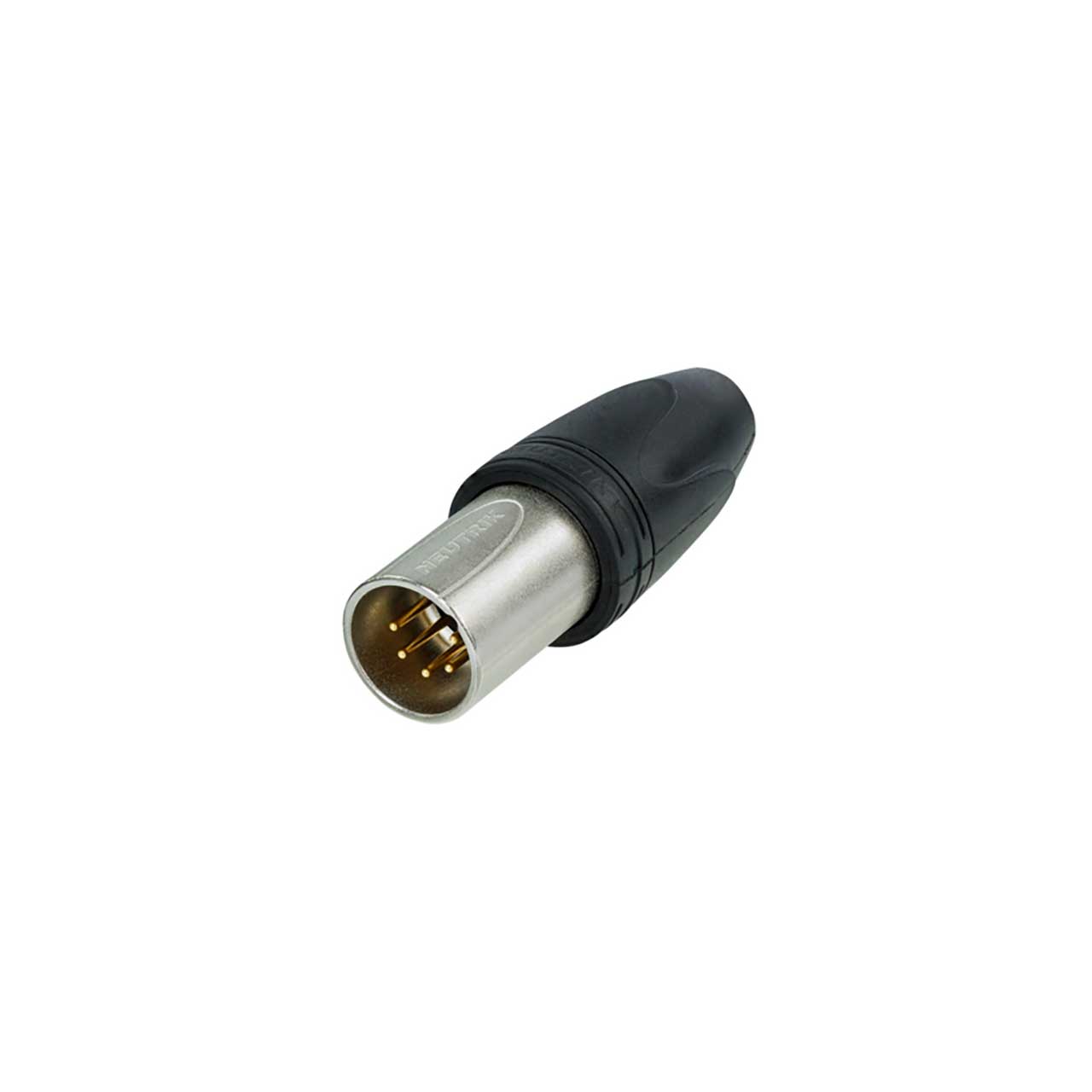

NEUTRIK NC5MXX-HD-D Heavy Duty Male 5 Pole XLR Cable Connector for Outdoor Use - 25 Pack

NC5MXX-HD-D - Overview

• Features:

  • Rubber sealing jacket protects against water ingress and mechanical shock
  • Gold contacts
  • Dust and water ingress sealing according to IP67 in combination with HD cable connector NC5FXX-HD


• Specifications:

  • Electrical
  • Capacitance Between Contacts: ≤ 7 pF
  • Contact Resistance: ≤ 3 mΩ
  • Dielectric Strength: 1.5 kVdc
  • Insulation Resistance: > 10 GΩ (initial), > 1 GΩ(after damp heat test)
  • Number of Electronical Contacts: 5
  • Rated Current Per Contact: 7.5 A
  • Rated Voltage: < 50 V ac

    Mechanical
  • Cable O.D: 6.0 - 8.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: 1000 mating cycles
  • Wiresize: max. 1.0 mm²
  • Wiresize: max. 18 AWG
  • Wiring: Solder contacts
  • Locking Device: Latch lock

    Material
  • Boot: PA / PU
  • Contact Plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking Element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Nickel
  • Strain Relief: Polyacetal (POM)
  • Sealing Jacket: EPDM

    Environmental
  • Flammability: UL 94 HB
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -30 °C to +80 °C
  • Manufacturing Standard: IEC 61076-2-103
