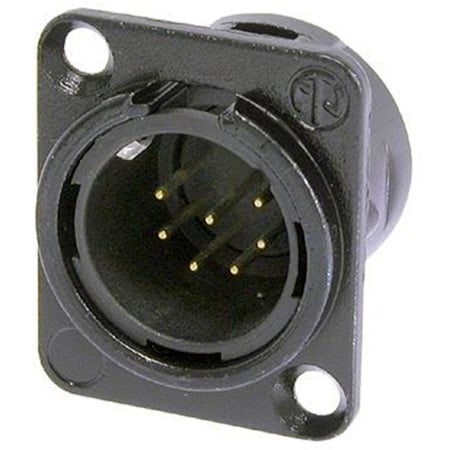

Neutrik NC7MD-L-B-1 7-Pin XLR Male Panel/Chassis Mount Connector - Black/Gold

ITEM #: NC7MD-L-B-1 MFG #: NC7MD-L-B-1

Primary Image
Neutrik Americas
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$16.97

Our Price:

$14.54

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NC7MD-L-B-1 - Overview

The Neutrik NC7MD-L-B-1 is a 7-pole male XLR D-size panel mount receptacle with solder cups, black metal housing, and gold contacts.

  • Features:

    • Robust "D" metal shell
    • Solder cups on 3 - 7 pole version
    • Standardized D sized 24mm panel cutout


  • Specifications:

    • Electrical
    • Capacitance Between Contacts: ≤9pF
    • Contact Resistance: ≤5mΩ
    • Dielectric Strength: 1,5 kVdc
    • Insulation Resistance: >10GΩ (initial)
    • Rated Current per Contact: 5A
    • Rated Voltage: <50V

      Mechanical
    • Insertion Force: ≤20N
    • Withdrawal Force: ≤20N
    • Lifetime: >1000 mating cycles
    • Wiresize: Max. 1.0mm²
    • Wiresize: Max. 18 AWG
    • Wiring: Solder contacts
    • Locking Device: Latch lock
    • Chassis Shape: D

      Material
    • Contact Plating: 0.2µm Au hard alloy over 2µm Ni
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking Element: Steel Ck67
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Coating: Black KTL

      Environmental
    • Approvals: UL
    • Flammability: UL 94 HB
    • Standard Compliance: IEC 61076-2-103
    • Protection Class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature Range: -22°F - 176°F (-30°C - 80°C)
