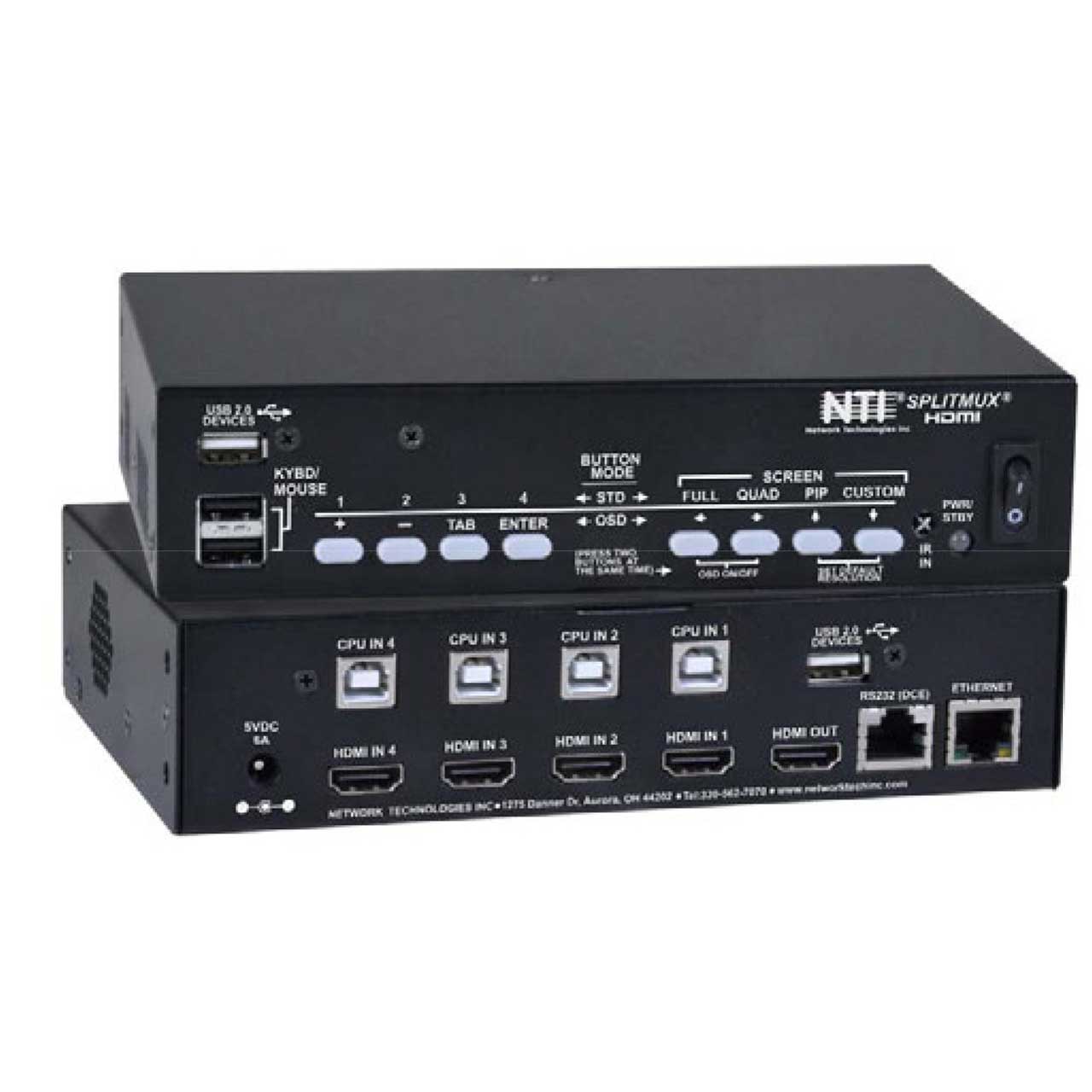

NTI SPLITMUX-USBHD-4RT HDMI Quad Screen Multiviewer with Built-In KVM switch Desktop

SPLITMUX-USBHD-4RT - Overview

• Features:

  • Quad, Picture in Picture, Full Screen, and Custom display modes.
  • „Custom Display Mode: the size, position and selection of any or all windows are customizable.
  • „2- and 3-source viewing is possible with this method.
  • „Maintain input aspect ratio if desired-no stretching necessary.
  • Switch one of the four attached computers to a shared USB keyboard and mouse for operation.
  • „Supports 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.
  • HDCP compliant.
  • „Fluid, real-time video performance with up to 60 frames per second (fps) in all four quadrants.
  • „Zoom, pan, and crop the image from any source to focus on key areas.
  • „Switch audio independently of video from connected HDMI sources.
  • A customized text label can be added for each video window to provide easy input identification (UMD).
  • „Control the multiviewer through Ethernet, RS232 serial port, keyboard commands, on screen display (OSD), front panel buttons, or IR remote.
  • „Built-in 2-port USB hub - switch devices between connected computers.
  • Compliant with USB 2.0 (high-speed and low/full speed) standards.
  • „Cascade multiviewers to display video from any number of video sources on one screen.
  • Backup and restore multiviewer configurations.
  • „Supported output resolutions can be selected or set to auto detect optimal resolution from the monitor’s EDID.
  • „Available options: desktop unit, 1RU rackmount unit, dual side-by-side rackmount units in 1RU


• Specifications:

  • Hosts
  • „Four female HDMI connectors.
  • „Four female USB Type B connectors.
  • „Supports USB computers: Boots PCs, SUNs, and MACs simultaneously.
  • „Supported video input resolutions: 2K Cinema (2048x1080 @ 60Hz), HDTV resolutions to 1080p, Computer resolutions to 1920x1200.
  • „Supports HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
  • „Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • „A DVI source can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the multiviewer.
  • Use a video + audio to HDMI video converter to pass embedded HDMI audio into the multiviewer (see Compatible NTI Products below).
    Monitor
  • „One female HDMI connector.
  • „Supported video output resolutions:
  • 2K Cinema (2048x1080 @ 60Hz)
  • HDTV resolutions to 1080p
  • Computer resolutions to 1920x1200
  • „HDMI-embedded audio switching (four-channel stereo, non-mixing or one channel stereo, mixing).
  • Switch audio independently of video from connected HDMI sources.
  • Multiple audio sources can be simultaneously active in any display mode or preset layout.
  • „A DVI display can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the display.
  • Use a video + audio to HDMI video converter to pass embedded HDMI audio into the multiviewer (see Compatible NTI Products below).
    Devices
  • „Two female USB Type A connectors for keyboard and mouse.
  • Keyboard and mouse are hot-pluggable.
  • „Two female USB Type A connectors for USB peripheral devices (printers, scanners, security cameras, flash drives, etc.)
  • Connect any type of USB device - fully transparent USB connectors.
  • Switch USB 2.0 devices between connected computers.
  • In Full Screen mode, USB touch screen monitors can be used to control the connected active computer.
  • „Provides support for high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
    Protocols
  • „HTTP, HTTPS
  • „TCP/IP, DHCP, UDP, ARP
  • „IPV4
    Power/Dimensions
  • „Power: 110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
  • „Power consumption: 20W
  • Dimensions WxDxH (in): 7.35x4.98x1.75 (187x126x45 mm)

  • Environmental
  • „Operating temperature: 32°F to 122°F (0°C to 50°C).
  • „Storage temperature: -22°F to 140°F (-30°C to 60°C).
  • „Operating and storage relative humidity: 17 to 90% non-condensing RH.
    Regulatory Approval
  • „CE, RoHS
  • „TAA compliant
    Compatible NTI Products
  • „Combine NTI’s video converters and splitters for multiple video sources and display signals
  • DVI-D to HDMI Single Link Interface Cable (DVI-HD-xx-MM). The cable does not pass audio to the multiviewer.
  • DVI + Stereo Audio to HDMI Converter (DVIA-HD-CNVTR-LC)
  • DVI + Digital Audio to HDMI Converter (DVI-HD-CNVTR)
  • Composite Video + Audio to HDMI Converter (CVA-HD-LC)
  • VGA + Audio to HDMI Converter Cable (VGAA-HD-ULC)
  • VGA/Component Video/HDMI Scaler/Converter (PCHD-HDMI-SCALER)


• Item Includes:

  • Multiviewer
  • „1x - power adapter
  • „1x - DB9 female to RJ45 female adapter
  • „1x - 5ft CAT5e super flat cable
  • „1x - IR remote control
  • „Manual


• Warranty:

  • 2 Years
