NTI ST-C5USBVT Transparent 4-Port USB Extender with VGA Video

ST-C5USBVT - Overview

• Features:

  • Supports fully transparent USB connections - supports all USB computers (PC, SUN and MAC) and their associated peripherals
  • Extend devices such as keyboards, mice, printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc
  • Using CAT5e/6 cable, extend USB 1.1/1.0 devices to 180 feet and USB 2.0 devices to 150 feet
  • Using CAT6a/7 cable, extend USB 1.1/1.0 devices to 200 feet and USB 2.0 devices to 180 feet
  • Supports local and remote VGA monitors
  • Supports resolutions to 2048x1536
  • DDC2B support for local or remote monitor
  • Compliant with USB 2.0 (low/full speed) standards
  • Supports Plug-n-Play specification
  • Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2
  • Transmits signals over one CATx cable
  • Mounting brackets included for easy surface/wall mounting


• Specifications:

  • Local Unit
  • Host Connection
  • Supports USB computers (PC, SUN and MAC) with VGA video.
  • ST-C5USBVT: one male 15-pin HD and one female USB Type B connectors.
  • Local Access
  • Crisp and clear 2048x1536 video resolution.
  • ST-C5USBVT: one female 15-pin HD connector for local VGA monitor.

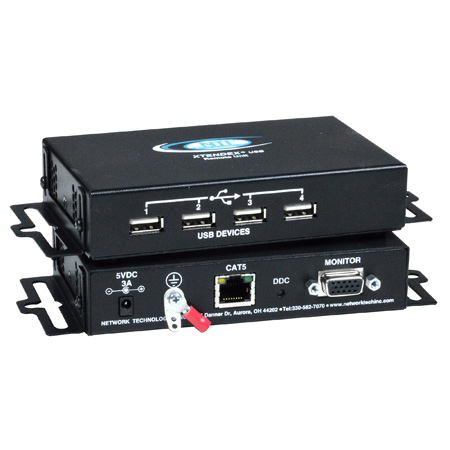

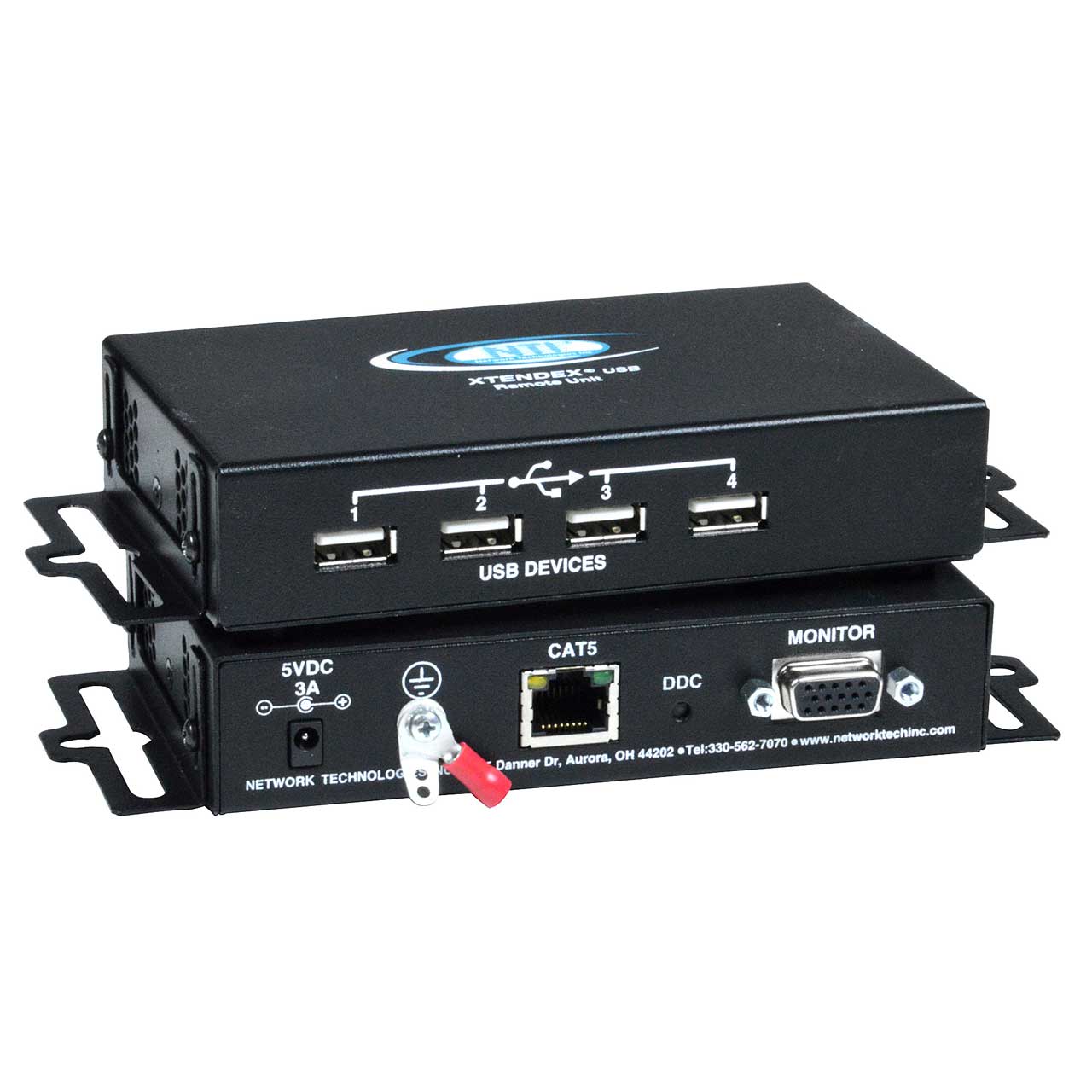

  • Remote Unit
  • One female 15-pin HD and four female USB Type A connectors.
  • Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
  • Compatible with USB touch screen monitors, including HP Compaq L2105tm and Elo 1515L.
  • Supports resolutions to 2048x1536; refer to the resolution chart for resolutions at different lengths.
  • Video quality adjustment for different lengths of CATx cable is done manually.


  • Cables
  • One 3.28-foot (1-meter) USB Type A male to USB Type B male, and one 3-foot (0.91-meter) 15-pin HD VGA male to male cables included.
  • Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).


  • Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and storage relative humidity: 0 to 90% non-condensing RH.
  • Dimensions WxDxH (in): ST-C5USBVT: 5.14x3.07x1.09
  • Regulatory Approvals: CE, RoHS, TAA compliant.


  • Power
  • ST-C5USBVT:
  • Local unit: powered from attached computer via USB.
  • Remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US, EURO, UK or AUS AC adapter included.)


  • MTBF
  • ST-C5USBVT (local): 42,675 hours.
  • ST-C5USBVT (remote): 44,623 hours.


• Item Includes:

  • 1x ST-C5USBVT
  • 1x Country-specific power cord
  • 1x USB2-AB-1M-5T 1 Meter USB Type A Male-USB Type B Male cable
  • 1x VEXT-3 15HD Male-to-15HD Female 3 foot cable (Qty 2 in models with dual video support only)
  • 2x SA-3-MM 3.5MM male-to-male audio cables (models with audio support only)
  • 1x DB9M-RJ45F Serial Adapter RJ45 Female-DB9 Male (models with S232 support only)
  • 1x DB9F-RJ45F Serial Adapter RJ45 Female-DB9 Female (models with RS232 support only)
  • 2x 3 foot RJ45-to-RJ45 CAT5 Patch Cables (models with RS232 support only)
  • 1x CD containing a pdf of this manual


• Warranty:

  • 2 years
