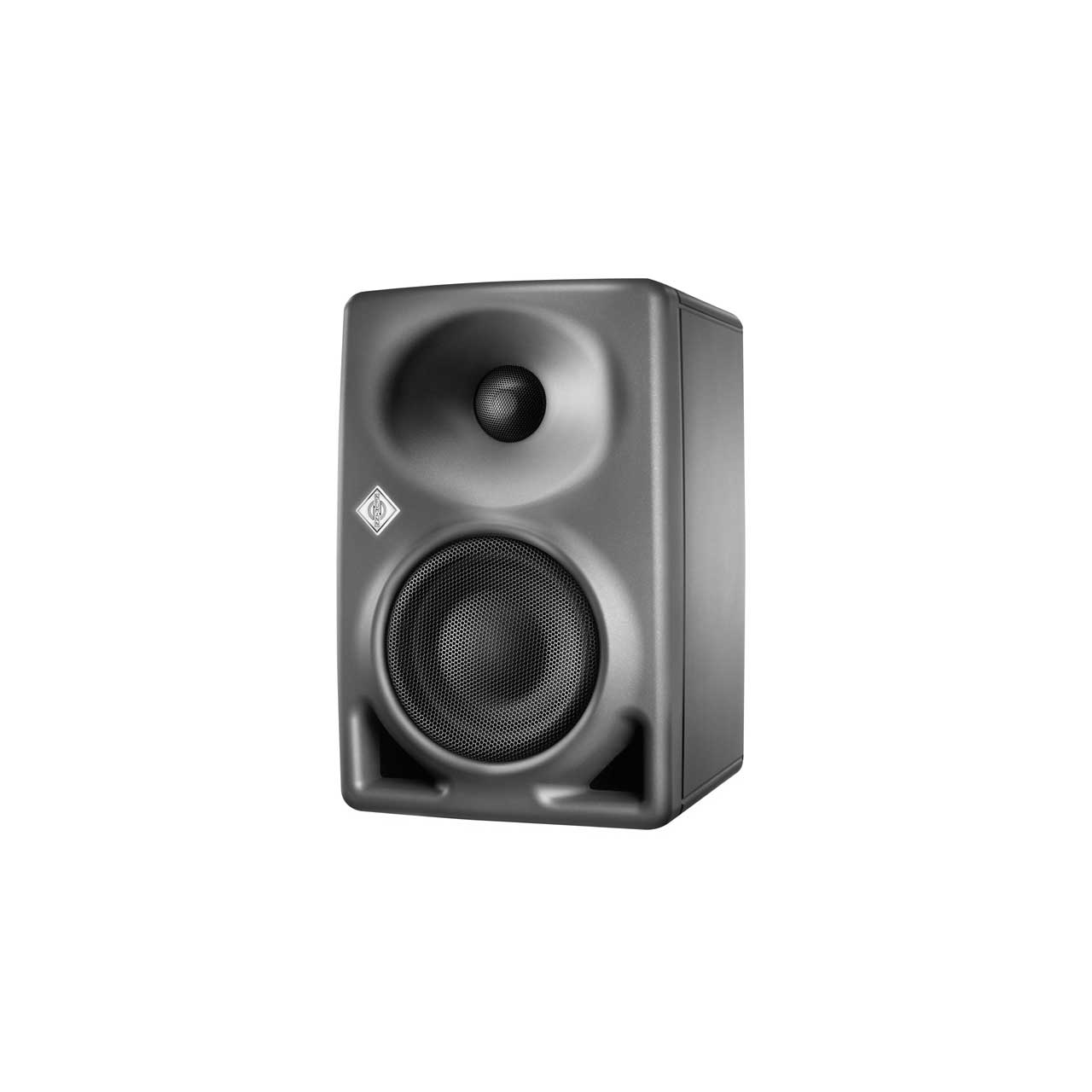

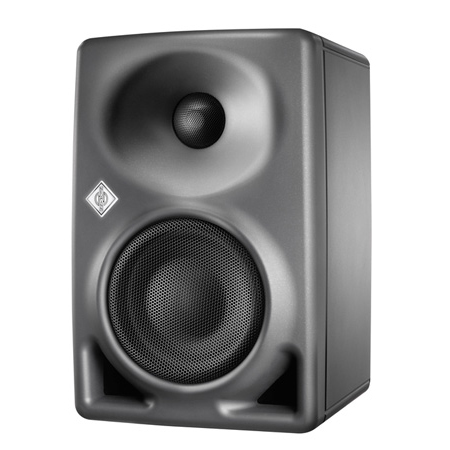

Neumann KH-80-DSP Two-Way Active DSP Studio Monitor

KH-80-DSP - Overview

• Features:

  • New in-house simulated drivers with metal grilles
  • Powerful alloy fabric tweeter dome
  • Elliptical Mathematically Modeled Dispersion (MMD) waveguide, with wide horizontal and narrow vertical dispersion
  • Long throw composite sandwich cone bass driver with Extremely Linear Force Factor (ELFF)
  • Two-color + dimmable Neumann logo
  • Compact polycarbonate composite cabinet
  • Large front panel ports
  • One-piece front panel with no discontinuities
  • Powerful highly efficient amplifiers with large headroom
  • Independent thermo limiters for woofer and tweeter to protect the voice coils and power amplifiers
  • Production consistency due to individual alignment in final test

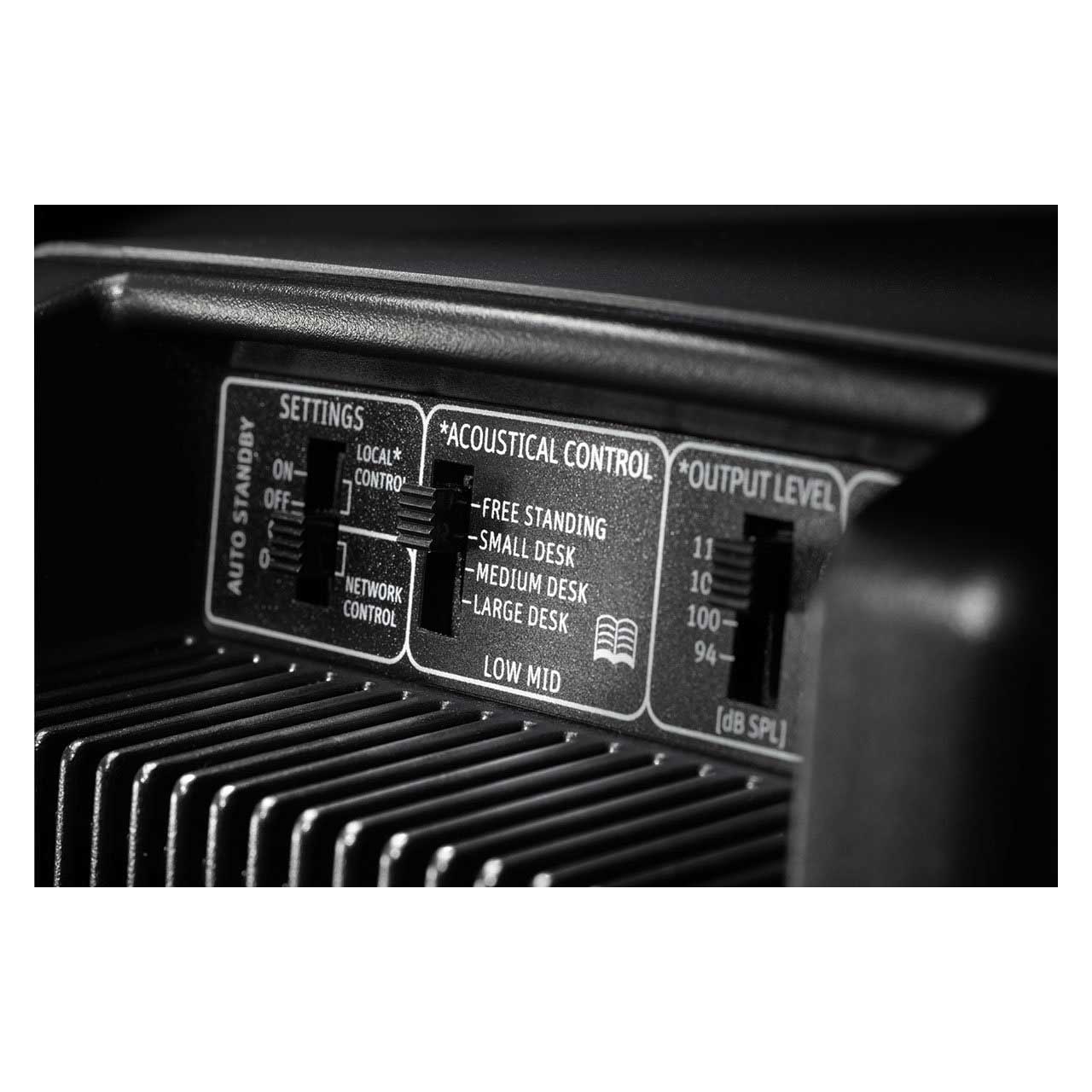

  • 4-position low-mid acoustical control
  • 8 x Precision Alignment acoustical controls accessible via control network
  • Wide range input gain and output level controls
  • Completely symmetrical internal signal chain
  • Universal switched-mode power supply (100 - 240 V)


• Specifications:

  • Acoustics
  • -6 dB free field frequency response: 53 Hz - 22 kHz, ± 6 dB
  • -3 dB free field frequency response: 57 Hz - 21 kHz, ± 3 dB
  • Pass band free field frequency response: 59 Hz - 20 kHz, ± 2 dB
  • Max. SPL in full space / calc. in half space at 3% THD at 1m: 102.8 / 108.8 dB SPL: (averaged between 100 Hz and 6 kHz)
  • Bass capability: Max. SPL in half space at 3% THD at 1m: 92.1 dB SPL (averaged between 50 Hz and 100 Hz)
  • Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions: 104 dB(C) SPL
  • Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair): 93 dB(C) SPL (full range), 100 dB(C) SPL (with subwoofer)
  • Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair): 88 / 93 dB(C) SPL (full range), 91 / 96 dB(C) SPL (with subwoofer)

    Electronics
  • Bass amplifier output power (THD+N, 0.1%, 10%): 90 W, 120 W
  • Treble amplifier output power (THD+N, 0.1%, 10%): 50 W, 70 W
  • Controller design: Digital, active
  • Crossover Frequency: 1.8 kHz
  • Equalization - Low Mid: 0, -1.5, -3, -4.5 dB
  • Equalization - via Neumann.Control software: 8 x full parametric IIR + low / high shelf global balance

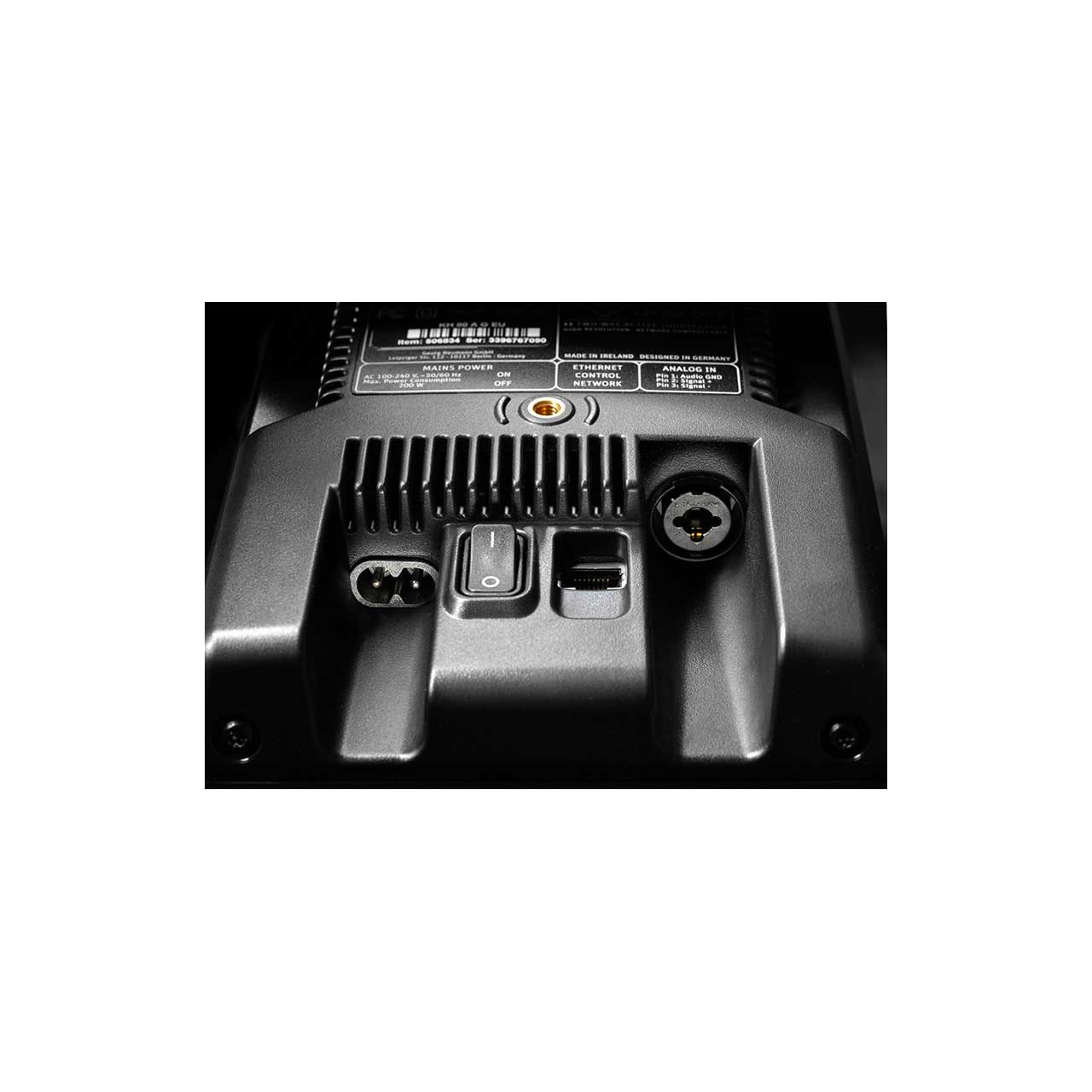

  • Input: XLR / 6.3 mm (&rac14;") Jack, analog electronically balanced
  • Impedance: 14k Ohms
  • Input gain control (sensitivity): 0 dB to -15 dB
  • Output level control: 94, 100, 108, 114 dB SPL
  • CMRR: >56 dB at 15kHz
  • Max. input level: +24 dBu for 94 dB SPL setting
  • Digital internal sampling rate 48 kHz
  • Dynamic range D-A; woofer, tweeter 114 dB, 117 dB
  • Mains Power Supply, voltage; frequency 100-240V; 50/60 Hz
  • Standby: Disabled, 90 mins (default), or user defined in software

    Mechanics
  • Cabinet surface finish, color (front/back): Painted composite polycarbonate material, Anthracite/Black
  • Operating conditions: +50° F to +104° F, <75% RH, non-condensing
  • Transport/storage conditions: -13° F to 158° F, <90% RH, non-condensing
  • Woofer: 4" with integrated black metal grille
  • Tweeter: 1" with integrated black metal grille
  • Product dimensions (height x width x depth): 9 1/8" x 6" x 7 5/8"
  • Product weight: 7 lbs 8 oz
  • Packed dimensions (height x width x depth): 13 5/8" x 10 7/8" x 9 5/8"
  • Packed weight: 9 lbs 1 oz


• Item Includes:

  • 1x KH 80 DSP A
  • 1x Mains cable (European, UK, US, or CCC and KC)
  • 4x Self-adhesive feet
  • 1x Getting Started Quickly guide
  • 1x Safety booklet


• GTIN:

  0615104271012
