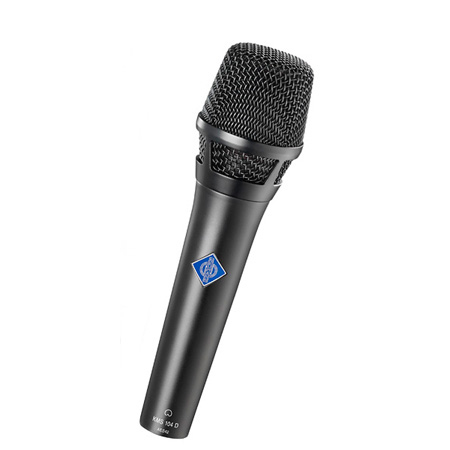

Neumann KMS 104 D Digital Cardioid Handheld w/ K 104 Capsule; KMS Pouch - Black

ITEM #: NEUM-KMS104D MFG #: KMS-104-D-MT

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NEUM-KMS104D

KMS-104-D-MT - Overview

The microphones KMS 104 D and KMS 105 D are the transition of the well-established KMS 104/105 analog microphones into the digital domain. Based on the AES42 standard, these microphones are an ideal choice for live and on-stage applications.

They provide all of the features of their analog counterparts. Additionally, they offer the advantages of the digital circuit technology, such as extended dynamic range, a more robust operation (EMC safe) and the avoidance of clipping as a result of the integrated peak limiter/ compressor.

Use of one of the digital microphone interfaces together with the Remote Control Software (RCS) permits pre-programmed settings to be stored in the microphones.

  • Features:

    • Neumann sound on stage
    • Excellent transparency for vocals/speech
    • Cardioid/Supercardioid polar pattern with excellent feedback rejection
    • Without off-axis coloration
    • Effective pop shielding without any side effects
    • Set includes stand clamp
    • The legendary Neumann sound in the digital realm. Pure Neumann capsule sound.
    • The satisfaction of recording the uncolored original, with no "bottlenecks" between the capsule and the recording system.
    • The guarantee of having one of the best A/D converters available.
    • Anti-clipping processing ensures handling safety, and reduces stress.
    • Reduced time requirements and personnel costs, particularly due to faster post production processing.
    • Lower investment costs, since separate A/D converters and preamps are no longer needed. This also means space and weight savings (e.g. in the OB van).

  • Specifications:

    • Acoustic transducer: Pressure gradient transducer
    • Directional characteristic: Cardioid/Supercardioid
    • Frequency response: 60 Hz to 20 kHz
    • Free-field sensitivity1):-47 dBFS
    • Equivalent noise level, CCIR3): 27 dB
    • Equivalent noise level, A-weighted3): 16 dB-A
    • Signal-to-noise ratio2), CCIR3): 67 dB
    • Signal-to-noise ratio2), A-weighted3): 78 dB
    • Maximum SPL at 0 dBFS: 141 dBSPL
    • Dynamic range, A-weighted4): 125 dB

    • Latency:
    • 44,1/48 kHz: 41 samples
    • 88,2/96 kHz: 49 samples
    • 176,4/192 kHz: 99 samples

    • Preset:
    • Sampling rates: 48 kHz
    • Gain: 10 dB (variable with DMI-2)
    • Compressor on, Attack time 100 ms, Release time 0.5 s,
    • Threshold -10 dBFS, Ratio 2:1

    • Supply voltage range: +6 V to +10.5 V
    • Current consumption: max. 150 mA
    • Weight: approx. 300 g, Diameter: 48 mm, Length: 180 mm

  • GTIN:

    0615104086449
