Netgear GS116PP-100NAS 16-Port Gigabit PoE+ Compliant Unmanaged Switch

ITEM #: NG-GS116PP100NAS MFG #: GS116PP-100NAS

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$389.97

Our Price:

$270.28

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


GS116PP-100NAS - Overview

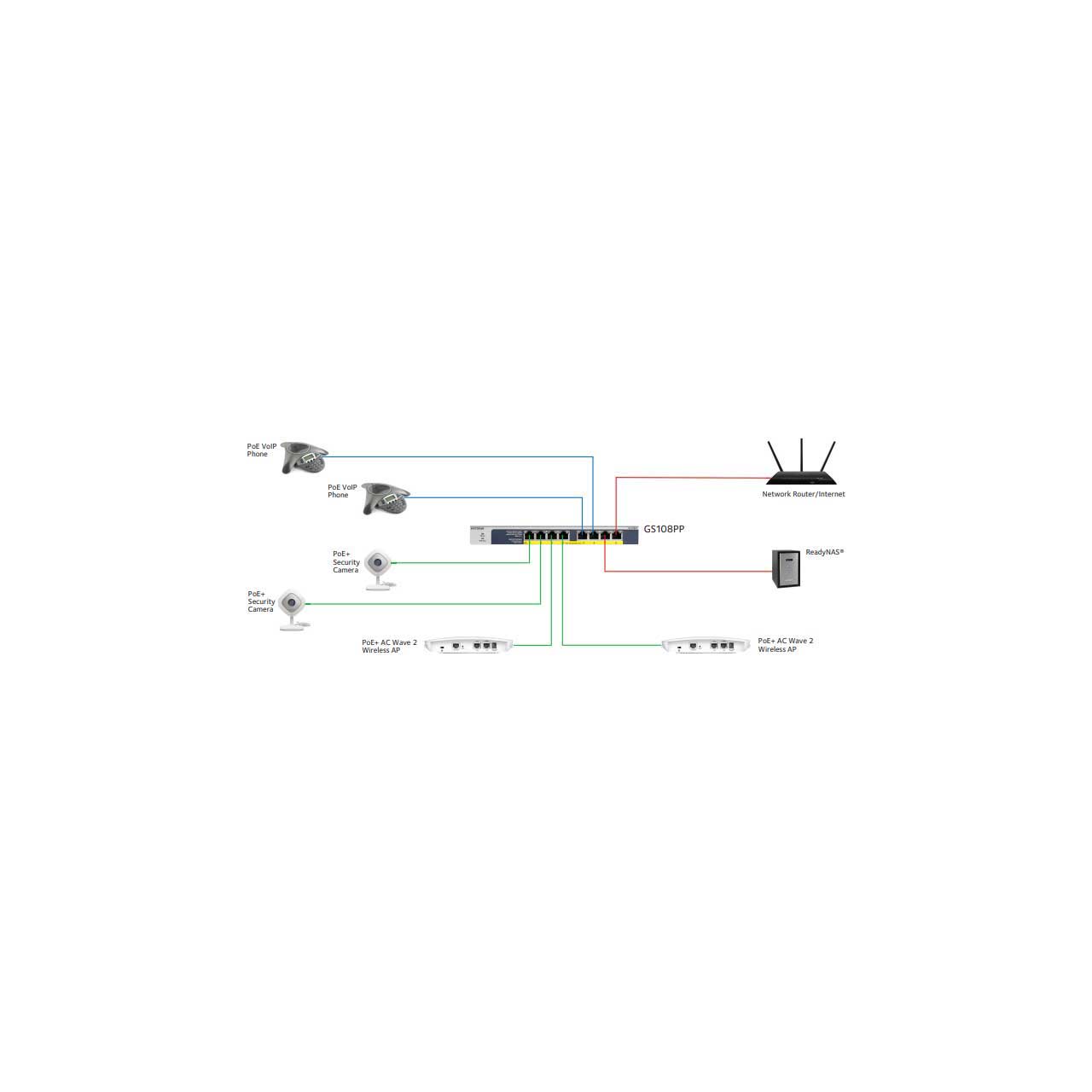

The NETGEAR Gigabit Unmanaged Switch series helps businesses cost effectively increase power budget to expand their network. Powered by the industry's first flexible PoE+ integrated technology, you can increase or decrease the PoE budget by simply buying a new power supply, effectively futureproofing small business networks and budgets. All ports support PoE/PoE+ that makes them the perfect switches for deploying Wireless APs, Pan/Tilt/Zoom and fixed IP Cameras, VoIP Phones, access-limited security door locks or any other IoT PoE powered devices.

The small form factor combined with the rack-mount and wall-mount accessories give you the flexibility to place these switches in small cabinets, in a 19" rack, on a wall or on your desk.

  • Features:

    • Simple setup with no software or configuration needed
    • 16 PoE+ ports with 183W total power budget, and includes NETGEAR FlexPoE allowing to reduce the power budget to 155W or even 76W (w/separately purchased power supply modules)
    • Mount on rack, desktop, or wall
    • Durable quality, space saver, and quietness for peace of mind
    • Choice of Fast Ethernet and Gigabit Ethernet connectivity
    • Energy-efficient technology for power savings
    • PoE power auto-balance - the switch automatically balances the PoE power based on the device needs independent of PoE class detected, at a very granular level
    • Auto-MDI/MDIX eliminates the need for crossover cables
    • Non-blocking switching architecture for maximum throughput at wire speed
    • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
    • Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices

  • Specifications:

    • Technical Specs:
    • Gigabit Ethernet RJ-45 Copper ports(10M/100M/1G) - 1000BASE-T: 16
    • PoE/PoE+ Ports: 16 PoE+(183W PoE budget)
    • Power Supply: External Input 54V 3.7A(200W)
    • Power Supply Supported(External):
      - Input 54V 3.7A (200W)
      - Input 54V 2.4A (130W)
      - Input 54V 1.66A (90W)
    • Form Factor: Desktop/Rackmount/Wall-mount

      Product Specs:
    • Gigabit Ports: 16
    • Max MAC Entries: 4K
    • Buffer Size: 1MB
    • Energy Efficient Ethernet(IEEE 902.3az compliant): Yes

      PoE Support:
    • 802.3af: Ports 1-16
    • 802.3at: Ports 1-16
    • PoE Max Power Per Port: Up to 15.4w for 802.3af and 30W for 802.3at
    • Total PoE Power Budget: 183W
    • Forwarding Modes: Store-and-forward
    • Bandwidth: 32 Gbps
    • Jumbo Frame Support: Yes
    • Acoustic Noise (ANSI-S10.12): 0(Fanless)
    • Mean Time Between Failures (MTBF): 2,088,514 Hours

      Power Consumption:
    • Max Power (worst case, all ports used, line-rate traffic)(Watts): 200W
    • Min Power (Link-down standby)(Watts): 2.68W
    • Heat Dissipation (Max and Min)(BTU/hr): 680.58 BTU/9.14 BTU
    • Short Cable Power Reduction: Yes
    • Auto Power-Down: Yes
    • Fan(s): 0(Fanless)

      Environmental Specs:
    • Operating Temp: 0° to 50°C (32° to 122°F)
    • Humidity: 90% maximum relative humidity (RH), non-condensing
    • Storage Temp: -20° to 70°C (- 4° to 158°F)
    • Humidity(Relative): 95% maximum relative humidity (RH), non-condensing

      Physical Specs:
    • Dimensions (WxDxH): 286 x 102 x 27 mm (11.26 x 4.02 x 1.06 in)
    • Weight: 0.88 kg (1.94 lb)

  • Item Includes:

    • 1x GS116PP Unmanaged Switch
    • 1x Power adapter (localized to the country of sale)
    • 1x Wall installation kit & Rack-mount kit
    • 1x Quick install guide

  • Warranty:

    • Limited Lifetime Warranty
