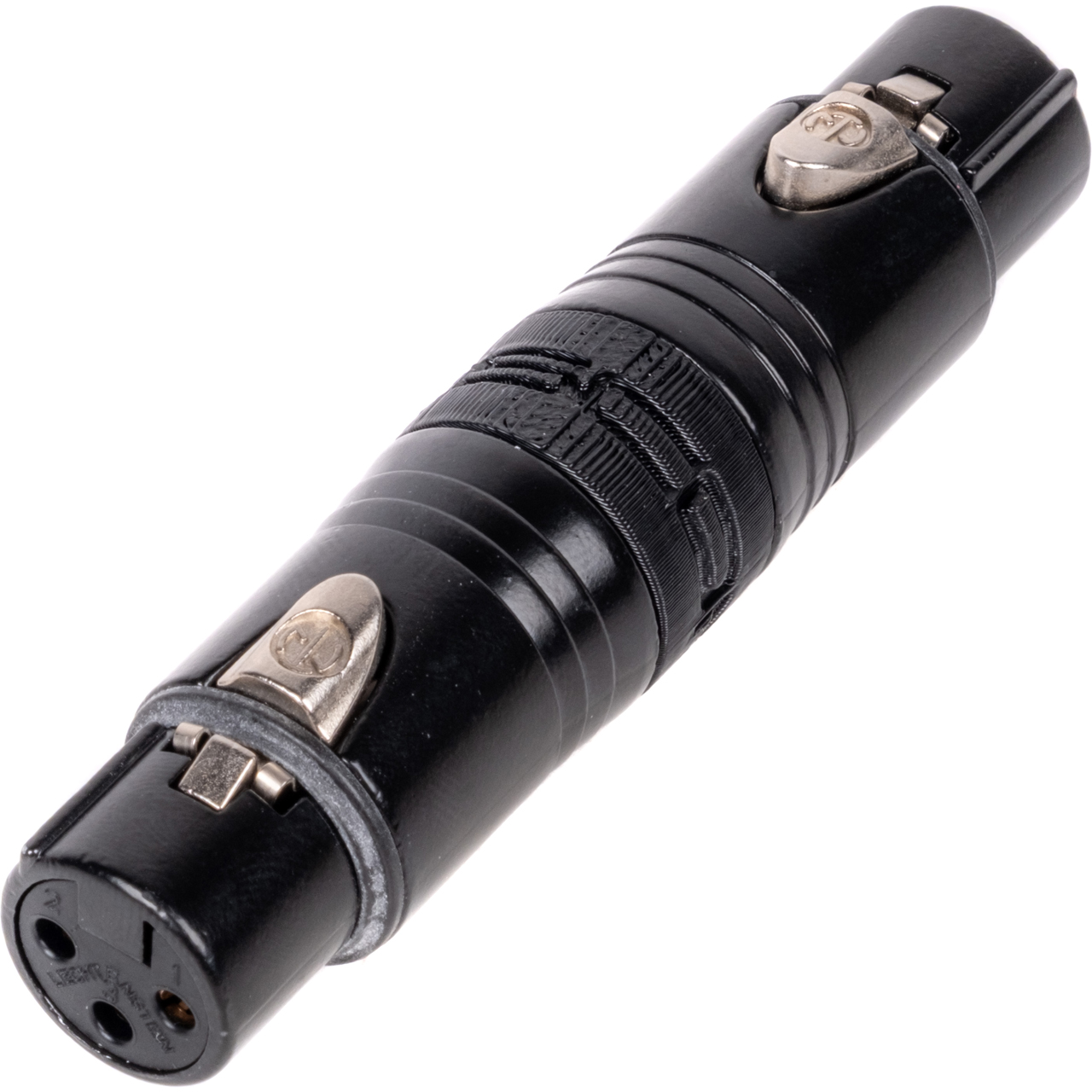

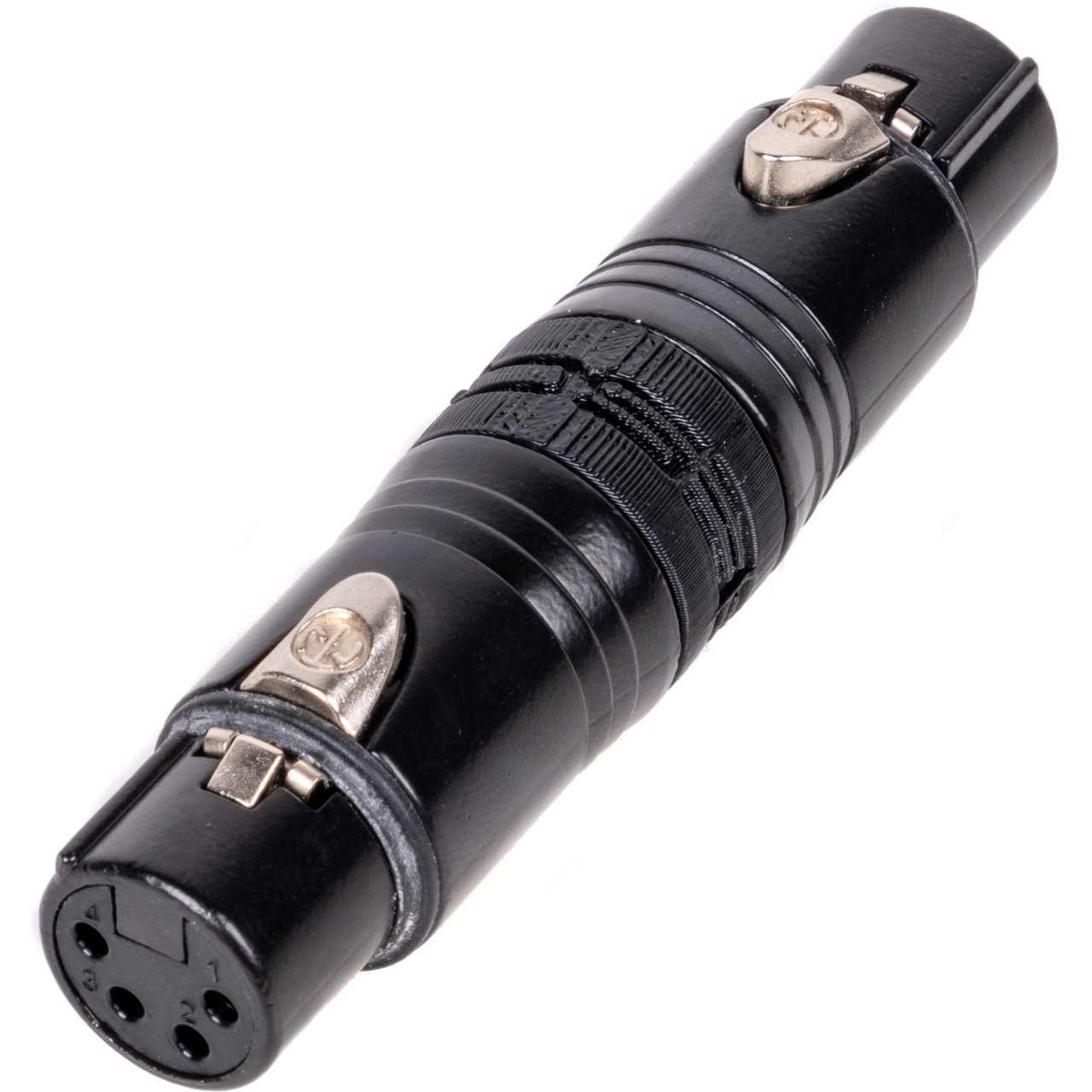

Sescom 3-Pin Female to 4-Pin Female Inline XLR Adapter Barrel

NHA3F4F - Overview

• Features:

  • 3-Pin Female to 4-Pin Female Inline XLR Adapter
  • These adapters Create Seamless Connection Between a Cable with 3-Pin or 4-Pin Cable Ends
  • Allows for Convenient Headset and Communication Unit Adaptation in the Field


• Specifications:

  • Neutrik Connectors:
  • Capacitance between Contacts: (3-Pin) ≤ 4 pF (4 & 5-Pin) ≤ 7 pF
  • Contact Resistance: ≤ 3 mΩ
  • Dielectric Strength: 1.5 kVdc
  • Insulation Resistance: > 10 GΩ (initial)
  • Rated Voltage: < 50 V
  • Insertion Force: ≤ 20 N
  • Withdrawal Force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Locking Device: Latch lock
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA66)
  • Locking Element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Black chromium
  • Flammability: UL 94 V-0
  • Standard Compliance: IEC 61076-2-103
  • Protection Class: IP 40
  • Temperature Range: -30 °C to +80 °C


• Warranty:

  • 1 Year
