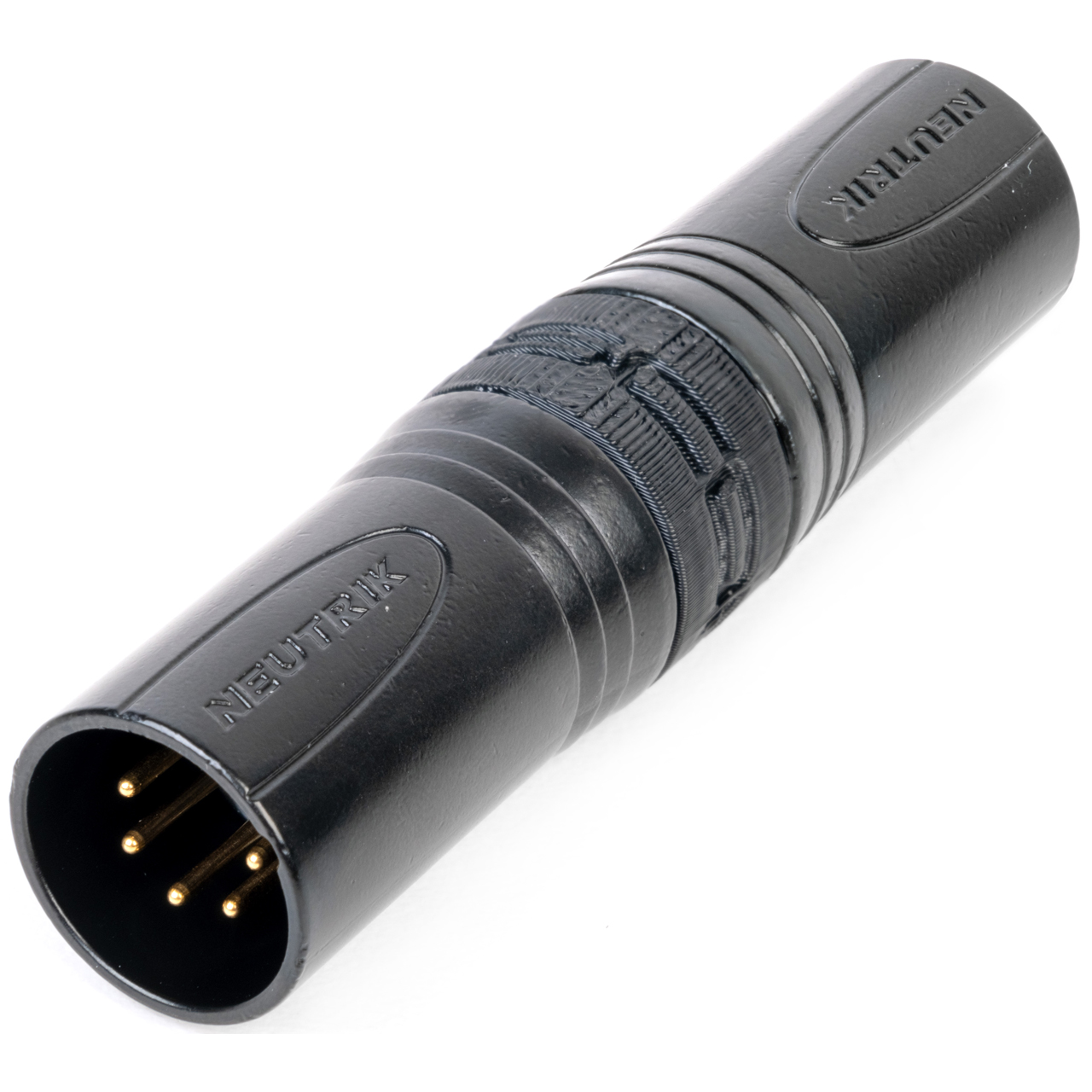

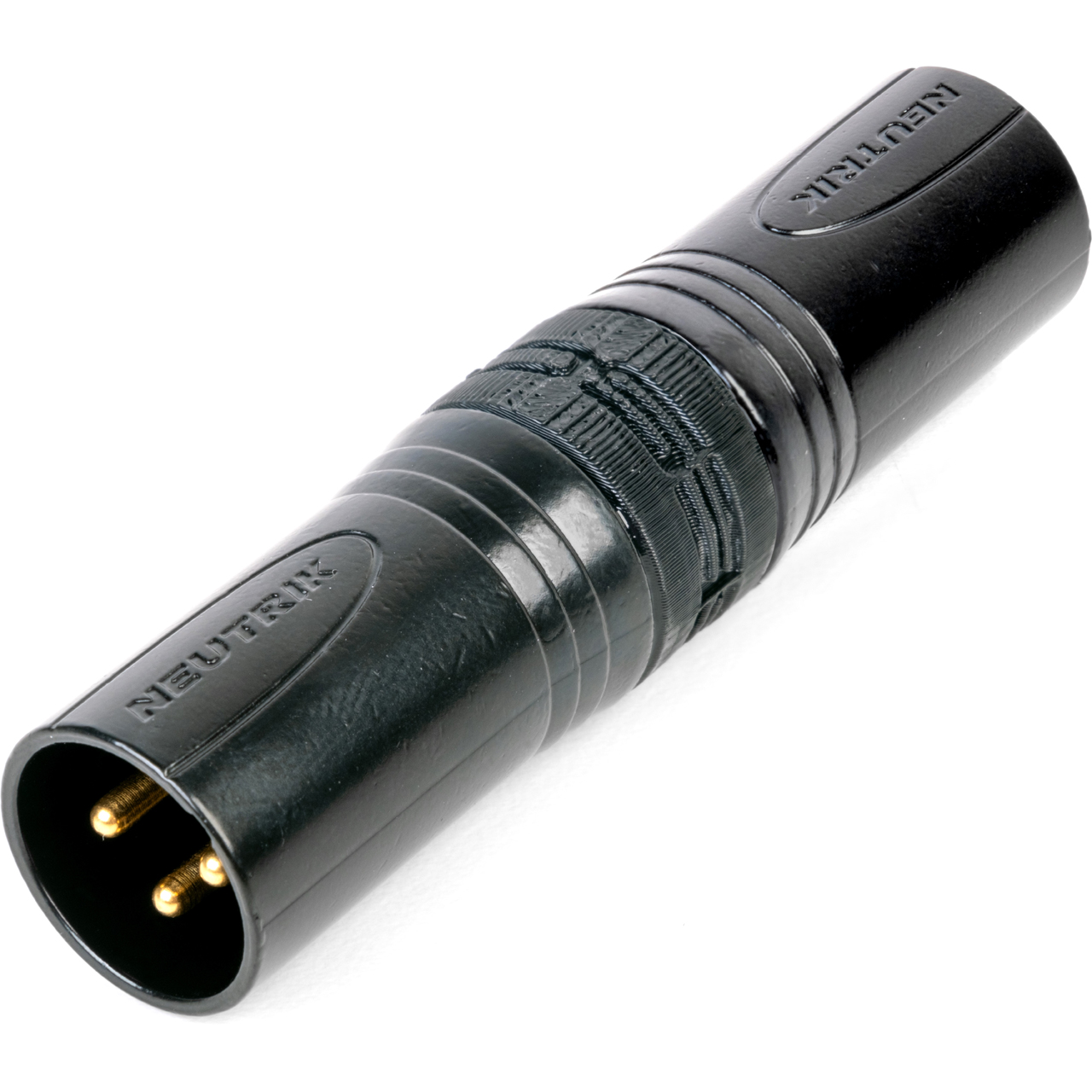

Sescom 3-Pin Male to 5-Pin Male Inline XLR Adapter Barrel

ITEM #: NHA3M5M MFG #: NHA3M5M

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Sescom
Free Shipping with $49 Minimum Order

List Price:

$48.95

Our Price:

$45.49

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NHA3M5M - Overview

Extend cables or adapt odd connections on the fly with the NHA3M5M 3-Pin male to 5-Pin male inline XLR adapter barrel from Sescom. Designed for long term durability featuring Neutrik black and gold XLR connectors.

  • Features:

    • 3-Pin Male to 5-Pin Male Inline XLR Adapter
    • These adapters Create Seamless Connection Between a Cable with 3-Pin or 5-Pin Cable Ends
    • Allows for Convenient Headset and Communication Unit Adaptation in the Field


  • Specifications:

    • Neutrik Connectors:
    • Capacitance between Contacts: (3-Pin) ≤ 4 pF (4 & 5-Pin) ≤ 7 pF
    • Contact Resistance: ≤ 3 mΩ
    • Dielectric Strength: 1.5 kVdc
    • Insulation Resistance: > 10 GΩ (initial)
    • Rated Voltage: < 50 V
    • Insertion Force: ≤ 20 N
    • Withdrawal Force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Locking Device: Latch lock
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA66)
    • Locking Element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: Black chromium
    • Flammability: UL 94 V-0
    • Standard Compliance: IEC 61076-2-103
    • Protection Class: IP 40
    • Temperature Range: -30 °C to +80 °C


  • Warranty:

    • 1 Year
