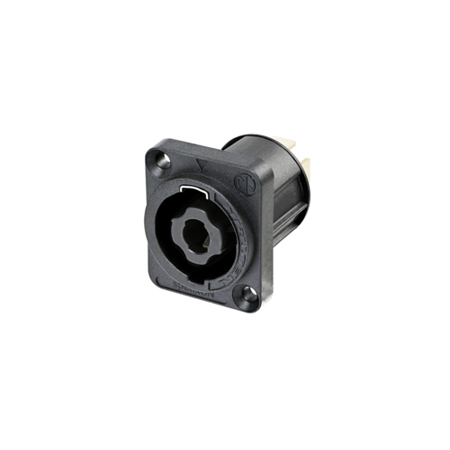

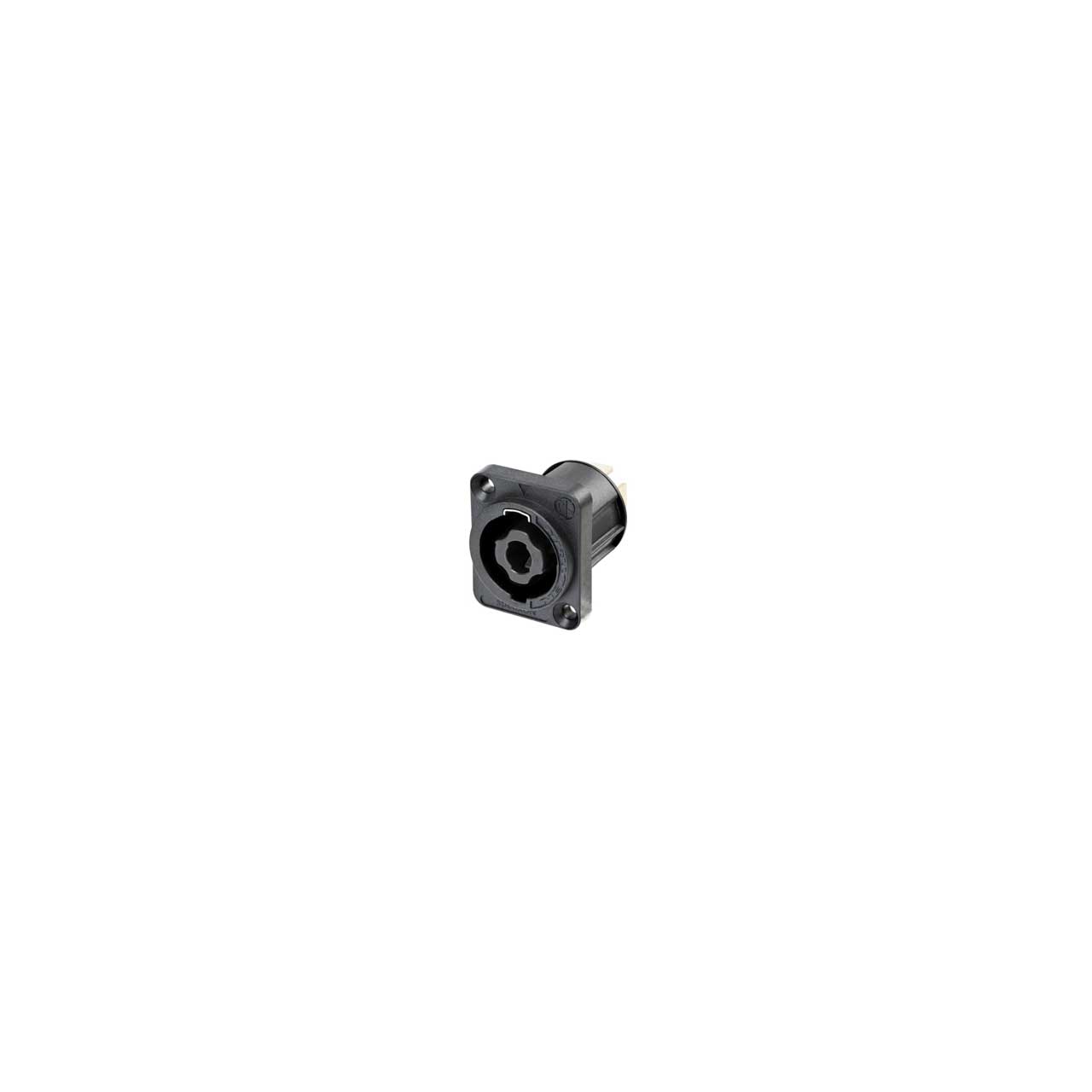

Neutrik NL4MPXX-UC 4 Pole Male Chassis Connector for 30A rms Continuous - Black D-size Flange - Countersunk Thru Holes

Name: Neutrik NL4MPXX-UC 4 Pole Male Chassis Connector for 30A rms Continuous - Black D-size Flange - Countersunk Thru Holes
Brand: Neutrik Americas
SKU: NL4MPXX-UC
Price: 6.55 USD
Availability: InStock

ITEM #: NL4MPXX-UC MFG #: NL4MPXX-UC

Neutrik Americas

List Price:

$6.99

Our Price:

$6.55

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NL4MPXX-UC - Overview

The Neutrik NL4MPXX-UC 4 pole male chassis connector for 30 A rms continuous. Black D-size flange, countersunk thru holes, 1/4" flat tabs (termination e.g. with Faston tab Tyco part # 41829)

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Attention: speakON is NOT to be used as an AC mains or power supply connector!

Features:
- IEC 61984 certified, IEC 6236/-1 compliant
- Glass reinforced V-0 materials - extremely robust and durable
- Precise keyway for secure mating with metal insert in locking area
- Airtight design - optimized for speaker applications
Specifications:
- Gender: male
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 2.8 kVac
- Insulation resistance: >0.1 GΩ (after dampheat)
- Rated current per contact: 30 A rms continuous
- Rated voltage: 250 V ac
- Attention: speakON is NOT to be used as an AC mains or power supply connector!
- Lifetime: > 5000 mating cycles
- Termination: 1/4" flat tabs
- Locking device: Quick Lock
- Mounting direction: Rear (e.g. MFD) / front mounting
- Chassis shape: D
- Layout: standard hole position, thru holes
- Contact plating: Ag
- Contacts: Copper Alloy
- Shell: Polyamide (PA 66)
- Temperature range: -30 °C to +80 °C
- Flammability: UL 94 V-0
Item Includes:
- 1x Neturik NL4MPXX-UC 4 Pole Male Chassis Connector for 30A rms Continuous - Black D-size Flange - Countersunk Thru Holes
