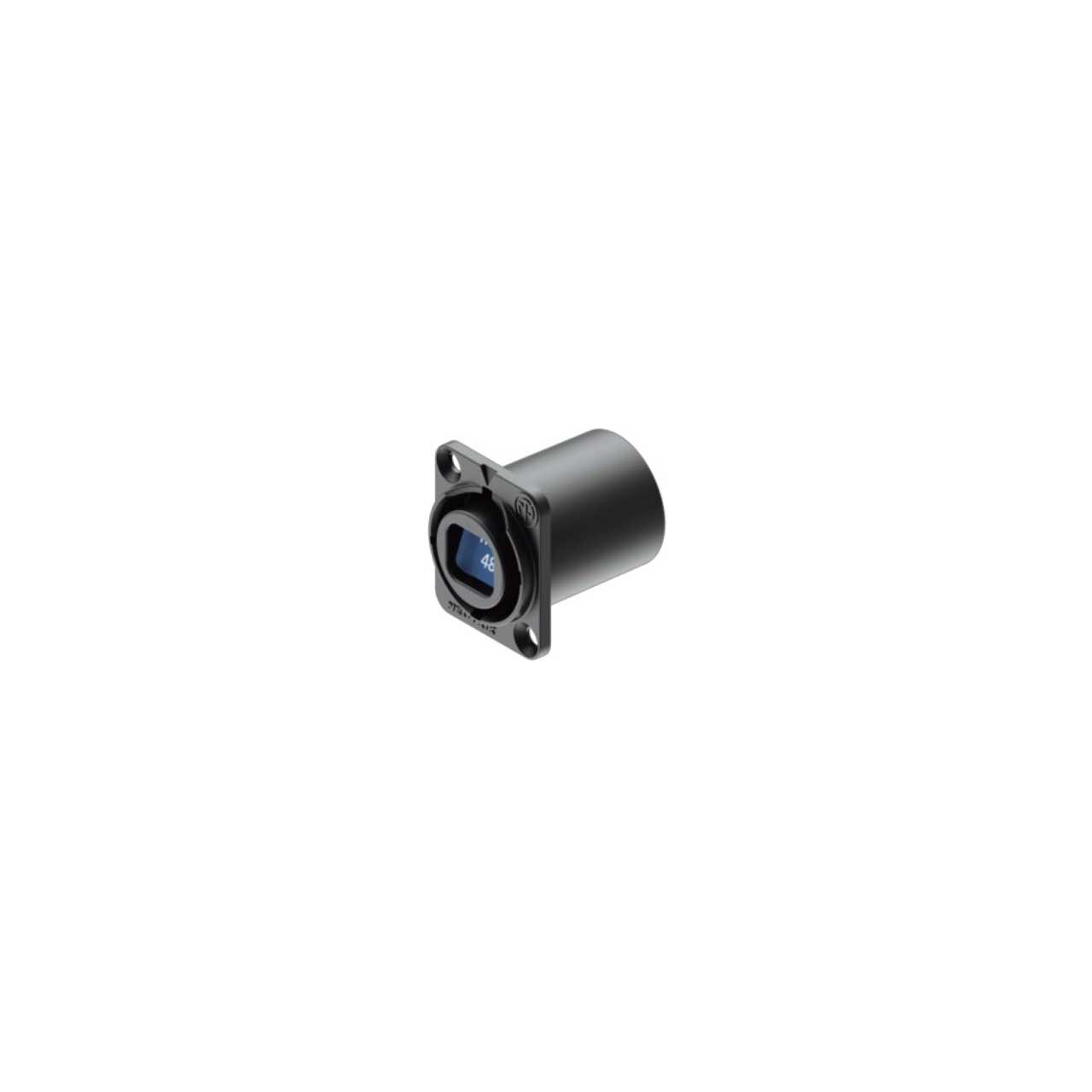

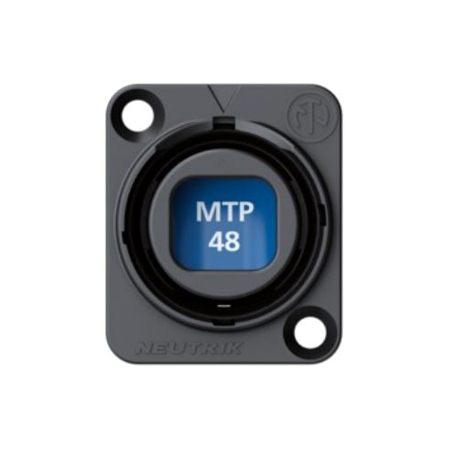

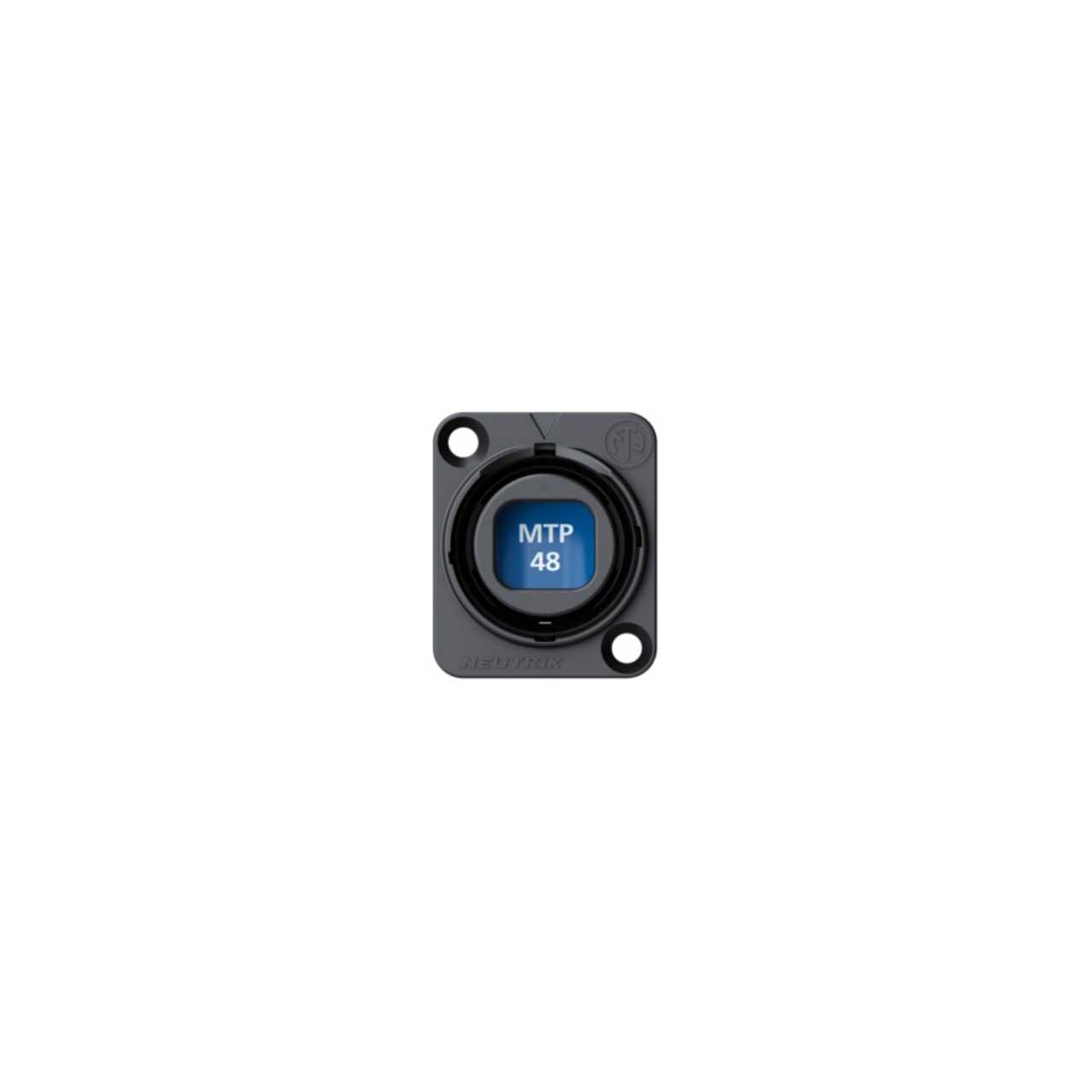

Neutrik NO48FDW-A opticalCON MTP 48 Fiber Chassis - Black - IP 65 Rated

NO48FDW-A - Overview

• Features:

  • Ruggedized and dirt-protected 48-channel fiber optic connection system
  • For point-to-point multichannel routing
  • Laser protective metal shutter seals dust proof with two-component rubber gasket
  • IP65 ingress protection in mated condition with SCDP-
  • *Accommodates standard MTPr ELITE MALE with 20 N springforce connectors on the rear for simple installation


• Specifications:

  • Gender: female
  • Insertion force: < 45 N
  • Withdrawal force: < 45 N
  • Lifetime (typ.): 2,500 mating cycles
  • Locking force: 1,000 N
  • Locking device: Push-Pull
  • Mounting direction: Front mounting
  • Chassis shape: D
  • Flammability: UL 94 V-0
  • Temperature range: -40 °C to +75 °C
  • Insertion loss: < 0.9 dB / connection
