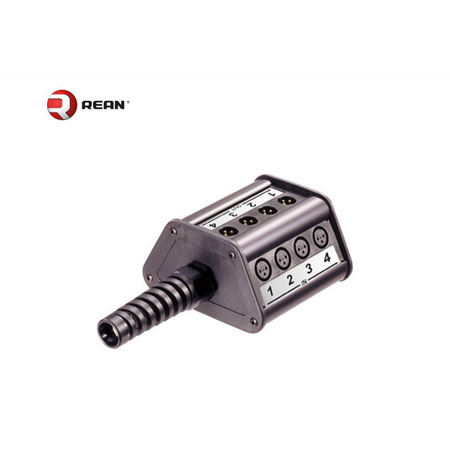

REAN NSB1A-8/4 Stage Box with 8 Inputs and 4 Outputs Style A

ITEM #: NSB1A-84 MFG #: NSB1A-8/4

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Rean
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$95.05

Our Price:

$57.00

Quantity Pricing

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NSB1A-8/4 - Overview

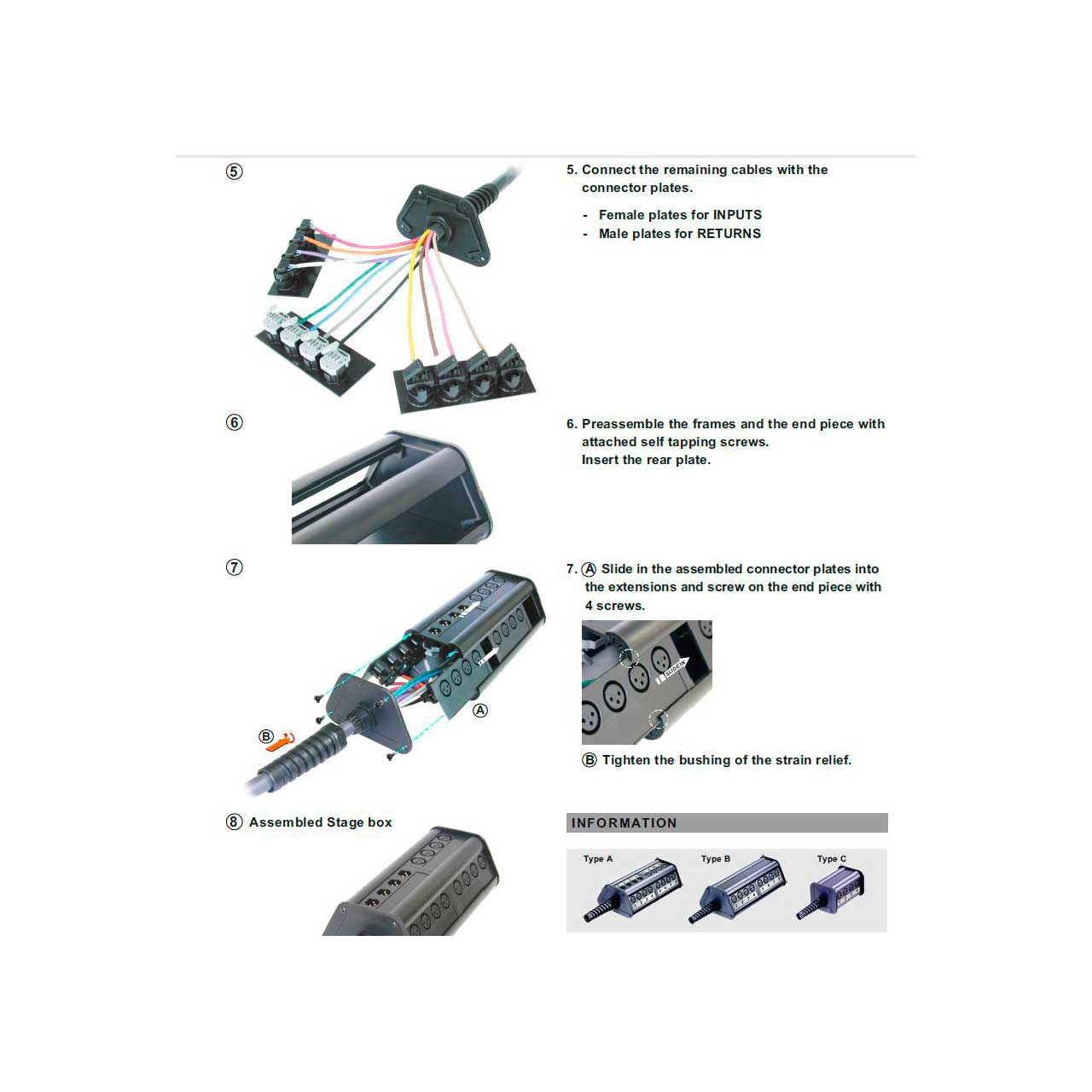

The REAN NSB1A-8/4 Stage Box system is a robust 3-pole XLR receptacle system that eliminates stripping and tinning and speeds up stage and press installs! Rapid assembly is a key feature of the design. The Stage Box is designed to be assembled in an individual combination of connectors for IN and OUT and length. All boxes are approximately 3" high.

  • Features:

    • Type A, length 1, 8 IN (female/send) and 4 OUT (male/return)
    • Width: 134 mm, height: 79 mm, length: 132 mm


  • Specifications:

    • Contact resistance: < 5 mΩ
    • Dielectric strength: 0.5 kVdc
    • Insulation resistance: ≥ 1 GΩ
    • Rated current per contact: 2 A
    • Cable O.D.: 10 - 14 mm multicore
    • Insertion force: ≤ 10 N
    • Withdrawal force: ≥ 10 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: 0.22 and 0.14 mm²
    • Wiresize: 24 and 26 AWG
    • Shell: Aluminium
    • Quad plates: POM
    • End Pieces: Thermoplastic
    • Temperature range: -25 °C to +70 °C
