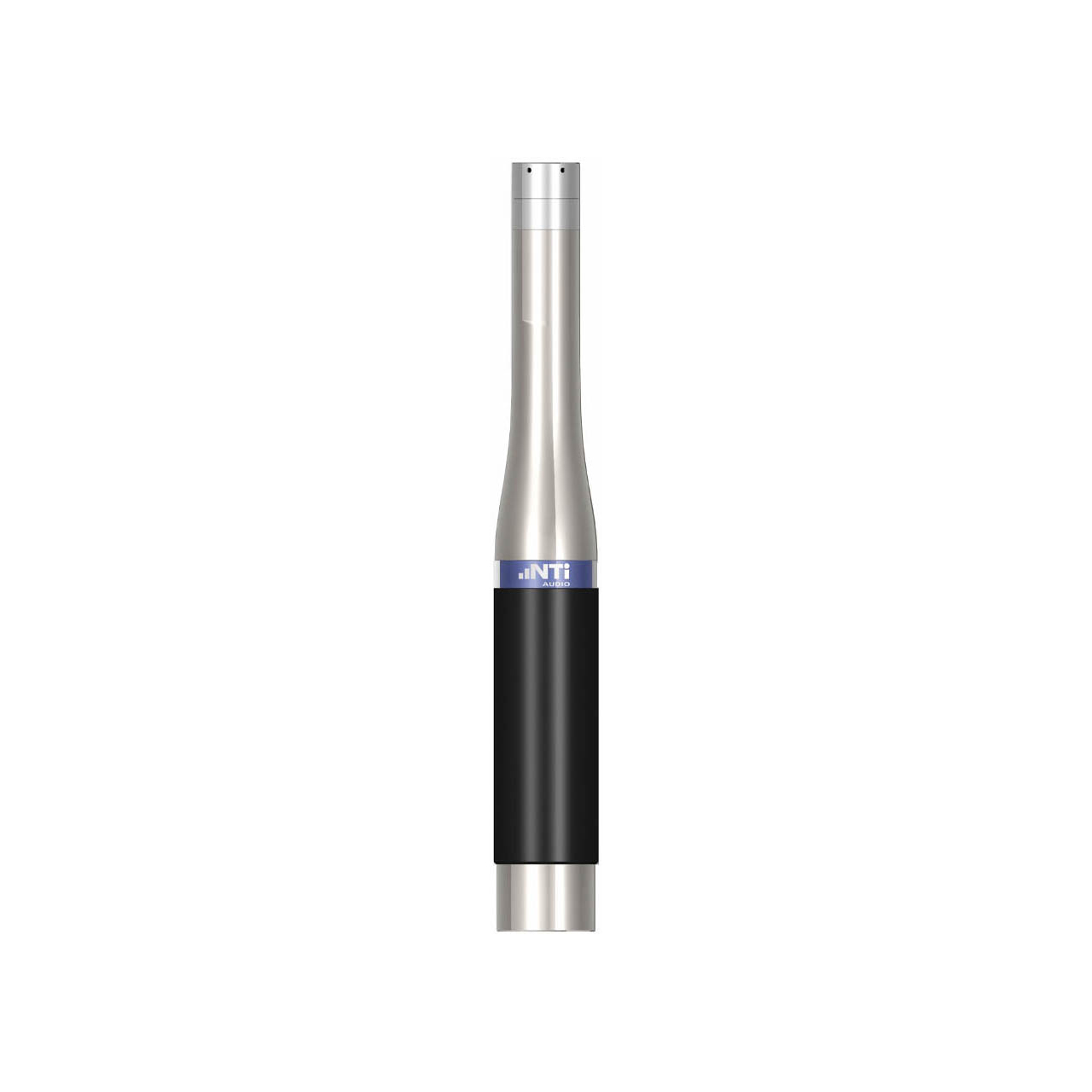

NTI Audio M2215 High SPL Omnidirectional Measurement Microphone for XL2 - Class 1 Frequency Response

Name: NTI Audio M2215 High SPL Omnidirectional Measurement Microphone for XL2 - Class 1 Frequency Response
Brand: NTi Audio
SKU: NTI-M2215
Price: 1867.00 USD
Availability: PreSale

ITEM #: NTI-M2215 MFG #: M2215

NTi Audio

Our Price:

$1,867.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

M2215 - Overview

The NTI Audio M2215 is a calibrated, 1/2" omni-directional measurement microphone with class 1 frequency response. It runs from 48V Phantom power and contains an electronic data sheet. It has a wide dynamic range from 25 dBSPL up to 153 dBSPL.

The measurement microphones are optimized for a flat, free-field response in the frequency range 5 Hz - 20 kHz. Models for acoustic measurements of up to 155 dB are available.

All microphones are omni-directional and 48V phantom powered. The Sound Level Meter microphones include an electronic data sheet. The Automated Sensor Detection (ASD) of the Analyzer automatically reads this data sheet, and recognizes the microphone model, sensitivity and calibration data. This ensures accurate measurement results.

Features:
- Omni-directional, free-field microphone
- Phantom power 48 VDC
- Frequency range 5 Hz - 20 kHz
- 48V phantom powered
Specifications:
- Classification with XL2 according to IEC 61672, ANSI S1.4: Frequency Response Class 1
- Consisting Of: PreAmplfier MA220 + Capsule 7056
- Microphone Type: Omnidirectional, pre-polarized condenser, free field microphone
- Capsule/Transducer: 1/2" detachable with 60UNS2 thread, type WS2F according IEC 61094-4
- PreAmp Type: MA220
- Flatness Tolerance Bands Typical:
  - ±1dB @ 5Hz - 20Hz
  - ±1dB @ >20Hz - 4kHz
  - ±1.5dB @ >4kHz - 10kHz
  - ±2dB @ >10kHz - 16kHz
  - ±3dB @ >16kHz - 20kHz
- Frequency Range: 5Hz - 20kHz
- Residual Noise Floor typical: 25dB(A)
- Maximum SPL @ THD 3%, 1kHz, S_typical: 153 dBSPL
- Sensitivity typical @ 1kHz: -42 dBV/Pa ±3dB (8 mV/Pa)
- Temperature Coefficient: < ±0.015 dB / °C
- Temperature Range: 14°F - 122°F (-10°C - +50°C)
- Pressure Coefficient: -0.02 dB / kPa
- Influence of Humidity (non-condensing): < ±0.05 dB
- Humidity: 5% - 90% RH, non-condensing
- Long-term Stability: > 250 years/dB
- Power Supply: 48V DC phantom power
- Current Consumption Typical: 2.3mA
- Output Impedance: 100Ω balanced
- Connector: Balanced 3-pole XLR
- Diameter Dimensions: 0.8" (20.5mm)
- Length Dimensions: 5.9" (150mm)
- Weight: 0.22lbs (3.53oz)
- Environmental Protection: IP51
Item Includes:
- 1x NTI Audio M2215 High Level Measurement Microphone
- 1x Electronic Data Sheet
Warranty:
- 3 Year Limited Warranty

M2215 - Required Accessories

NTI Audio XL2 Audio and Acoustic Analyzer - Microphone Not Included
NTI-XL2
Our Price: $1,810.00

M2215 - Recommended Accessories

NTI 600 000 018 Calibration Certificate for XL2/Measurement Mics/MR-PRO/MR2/TalkBox
NTI-600-000-018
Our Price: $104.00
NTI Power Supply for MR2/ MR-PRO/ DR2 or XL2 with US Plug
NTI-PS
Our Price: $40.00
Pelican 1500WF Protector Case with Foam - Black
BPL1500B
Our Price: $189.95
NTI 600 000 600 XL2 Limit Light for Live Sound Monitoring
NTI-600-000-600
Our Price: $536.00
Sescom Mic Cable Canare Star-Quad 3-Pin XLR Male to 3-Pin XLR Female - Black - 15 Foot
SC15XXJ
Our Price: $21.95
Premium Fiber Optic Toslink Digital Audio Cable - 5 Foot
OPM-305
Our Price: $25.95
NTI 600 000 335 XL2 Ready-Case
NTI-XL2-RCASE
Our Price: $81.00
NTI Soft Pouch for MR-PRO and MR2
NTI-SOFTPOUCH
Our Price: $42.00
NTI Audio STI-PA Speech Intelligibility Option for XL2
NTI-STI-PA
Our Price: $1,264.00
Sescom Pro Audio Hum Eliminator Inline with Isolation
IL-19
Our Price: $50.49
Chemtronics ES1020 Ultrajet Canned Air Disposable 10 Ounce Aerosol
ES1020
Our Price: $22.83
Morley MHUMX Hum Exterminator
EB-HUMX
Our Price: $89.00
Mackie MTEST-1 7-IN-1 Cable Tester
MCK-MTEST-1
Our Price: $34.99
Pelican 1920B LED Flashlight - Black
PEL-1920
Our Price: $40.95
NTI M2211 Measurement Microphone for XL2 Analyzer - Class 1
NTI-M2211
Our Price: $1,540.00
Laser Lite Ear Plugs 100 pk
NS117-4560
Our Price: $51.25
Goby Labs GLS-104 Microphone Cleaner Sanitizer - 4 Fluid Ounces
HOS-GLS-104
Our Price: $10.95
Hex Base Studio Boom Stand
SMS7650
Our Price: $273.95
K&M 16080 Ear Phone Holding Device - Black
KM-16080
Our Price: $23.99
On Stage Stands TCM1500 Tablet & Smart Phone Holder
OSS-TCM1500
Our Price: $31.95
Techspray 1673-10S Ozone Safe Economy Duster 10 Ounce (Flammable)
TESP-1673-10S
Our Price: $8.42
Atlas MS-10C All-Purpose 35in - 63in Chrome Mic Stand
MS-10C
Our Price: $67.99

M2215 - Reviews

M2215 - Attachments

NTI Audio M2215 User Manual

Overview

M2215 - Overview

The measurement microphones are optimized for a flat, free-field response in the frequency range 5 Hz - 20 kHz. Models for acoustic measurements of up to 155 dB are available.

Features:
- Omni-directional, free-field microphone
- Phantom power 48 VDC
- Frequency range 5 Hz - 20 kHz
- 48V phantom powered
Specifications:
- Classification with XL2 according to IEC 61672, ANSI S1.4: Frequency Response Class 1
- Consisting Of: PreAmplfier MA220 + Capsule 7056
- Microphone Type: Omnidirectional, pre-polarized condenser, free field microphone
- Capsule/Transducer: 1/2" detachable with 60UNS2 thread, type WS2F according IEC 61094-4
- PreAmp Type: MA220
- Flatness Tolerance Bands Typical:
  - ±1dB @ 5Hz - 20Hz
  - ±1dB @ >20Hz - 4kHz
  - ±1.5dB @ >4kHz - 10kHz
  - ±2dB @ >10kHz - 16kHz
  - ±3dB @ >16kHz - 20kHz
- Frequency Range: 5Hz - 20kHz
- Residual Noise Floor typical: 25dB(A)
- Maximum SPL @ THD 3%, 1kHz, S_typical: 153 dBSPL
- Sensitivity typical @ 1kHz: -42 dBV/Pa ±3dB (8 mV/Pa)
- Temperature Coefficient: < ±0.015 dB / °C
- Temperature Range: 14°F - 122°F (-10°C - +50°C)
- Pressure Coefficient: -0.02 dB / kPa
- Influence of Humidity (non-condensing): < ±0.05 dB
- Humidity: 5% - 90% RH, non-condensing
- Long-term Stability: > 250 years/dB
- Power Supply: 48V DC phantom power
- Current Consumption Typical: 2.3mA
- Output Impedance: 100Ω balanced
- Connector: Balanced 3-pole XLR
- Diameter Dimensions: 0.8" (20.5mm)
- Length Dimensions: 5.9" (150mm)
- Weight: 0.22lbs (3.53oz)
- Environmental Protection: IP51
Item Includes:
- 1x NTI Audio M2215 High Level Measurement Microphone
- 1x Electronic Data Sheet
Warranty:
- 3 Year Limited Warranty
