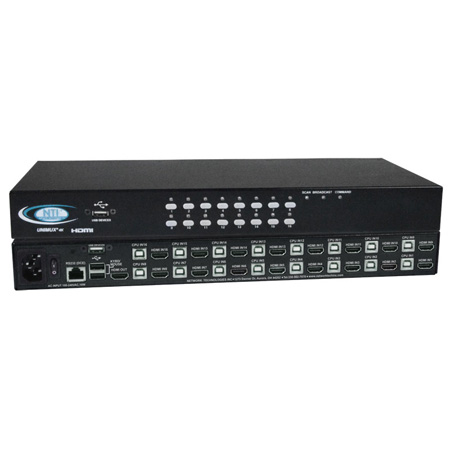

NTI UNIMUX-HD4K-16 4K HDMI USB KVM Switch - 16 Port

UNIMUX-HD4K-16 - Overview

• Features:

  • Control 16 HDMI USB computers or devices from one user station
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080 (60Hz) and HDTV resolutions to 1080p (60Hz).
  • Compatible with USB computers (PC, SUN and MAC).
  • Switch sources through the front panel buttons, hot-key keyboard commands, OSD, or RS232.
  • Two transparent USB 2.0 ports (low/full/high speed), in addition to keyboard and mouse ports, for connecting USB devices such as printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
  • Features NTI's patented true autoboot USB switching - all attached computers can be booted simultaneously.
  • High quality steel construction.
  • Flash upgradeable.
  • 1U 19" Rackmount kit included.


• Specifications:

  • Hosts
  • Female HDMI-A connectors.
  • Supports USB-enabled computers (PC, SUN, and MAC) with HDMI video.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Compliant with HDMI 1.4 and HDCP 1.4 standards.

    Monitor
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080 (60Hz), and HDTV resolutions to 1080p (60Hz).
  • One female HDMI-A connector.
  • Compliant with HDMI 1.4 and HDCP 1.4 standards.

    Devices
  • Two female USB 1.1 Type A connectors for keyboard and mouse.
  • Supports full-speed (12 Mbps) or low-speed (1.5 Mbps) USB keyboard and mouse.
  • Compatible with most USB keyboards and mice, including USB IntelliMouse.
  • Keyboard and mouse are hot-pluggable.
  • Supports SUN and MAC extra keys.
  • Two transparent female USB 2.0 Type A connectors for additional USB devices.
  • Supports high-speed (480 Mbps), full-speed (12 Mbps) and low-speed (1.5 Mbps) USB devices including, but not limited to, touchscreens monitors, CAC card readers, printers, scanners, and thumb drives.

    Protocols
  • HTTP, HTTPS
  • TCP/IP, DHCP, UDP, ARP
  • IPV4

    Power
  • 110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
  • Power consumption: 10W

    Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

    Regulatory Approval
  • CE, RoHS
  • TAA compliant

    Cables
  • Interface cables between your computers and the switch are required for proper operation. (Cables not included)

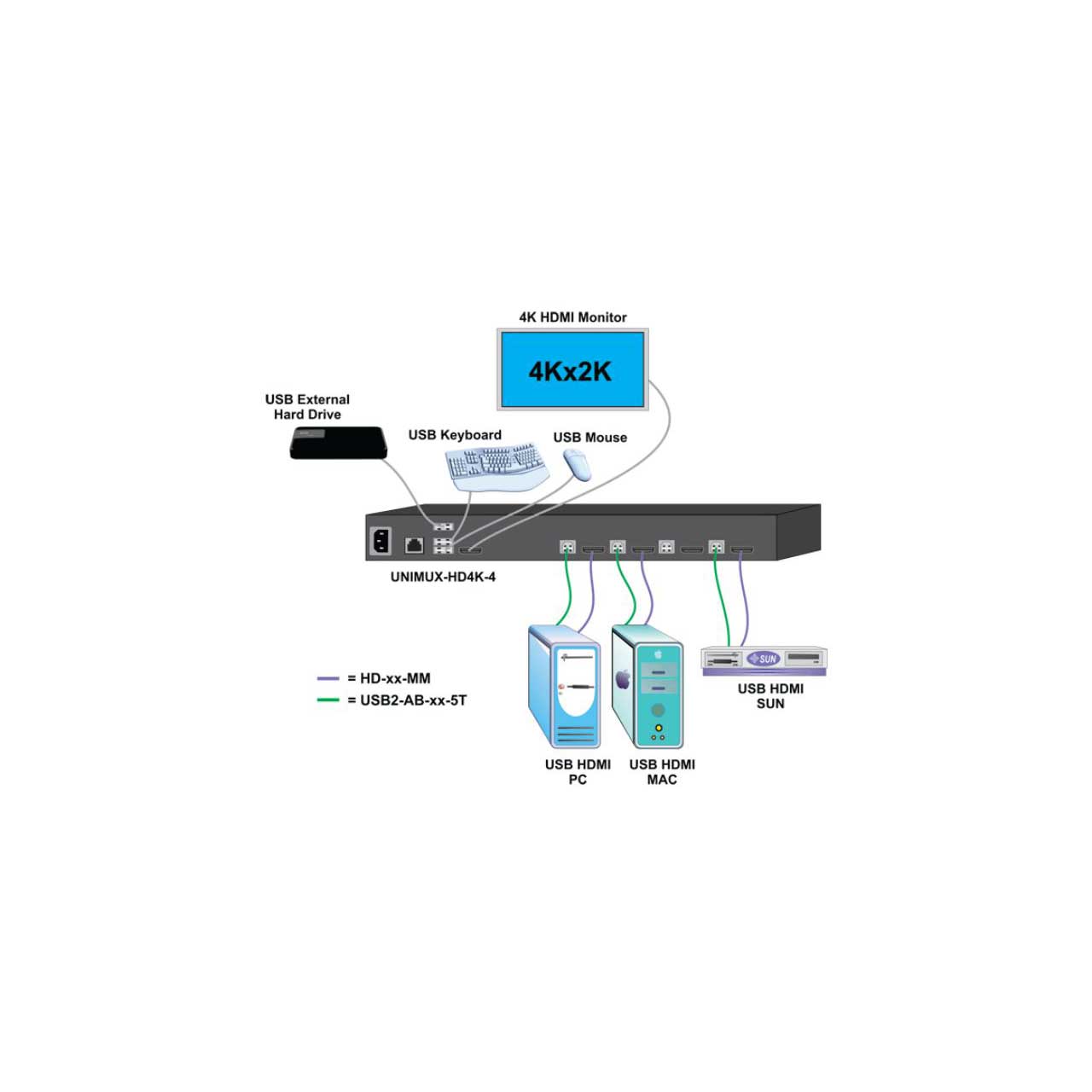

  • Use male-to-male HDMI cables (HD-xx-MM) and male USB Type A to male USB Type B cables (USB2-AB-0-5M-5T) to connect HDMI USB computers to the switch.
  • 5-foot (1.5-meter) CAT5e patch cable and RJ45F-DB9F adapter included for RS232 control.

    Compatible NTI Products
  • Combine NTI's extenders, switches, splitters and cables for complex applications.
  • Ultra Low-Cost VGA + Audio to HDMI Converter Cable (VGAA-HD-ULC)
  • Use to connect VGA PC to switch.
  • VGAA-HD-ULC is not hot-pluggable - PC will need to be restarted.

    Physical
  • Without supplied rackmount kit: 15.32"W x 6.82"D x 1.75"H (389 x 173 x 44 mm)
  • With supplied rackmount kit: 19"W x 6.82"D x 1.75"H (483 x 173 x 44 mm)
  • Weight: 5.2 lbs


• Item Includes:

  • 1x UNIMUX-HD4K-16 USB 4K Video KVM Switch
  • 1x Rack mount kit
  • 1x US Power Cord
  • 1x DB9 Female-to-RJ45 Female adapter
  • 1x 5 foot RJ45-to-RJ45 CAT5 patch cable
  • 4x Rubber feet


• Warranty:

  • 2-Year Standard
