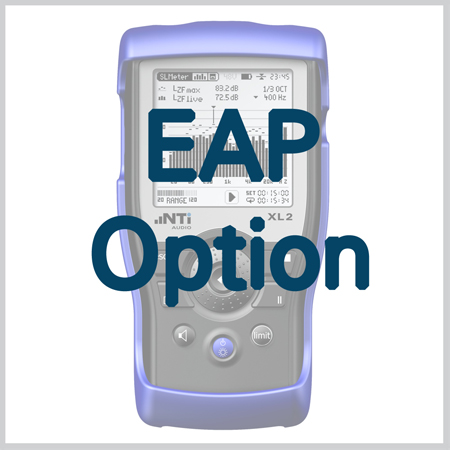

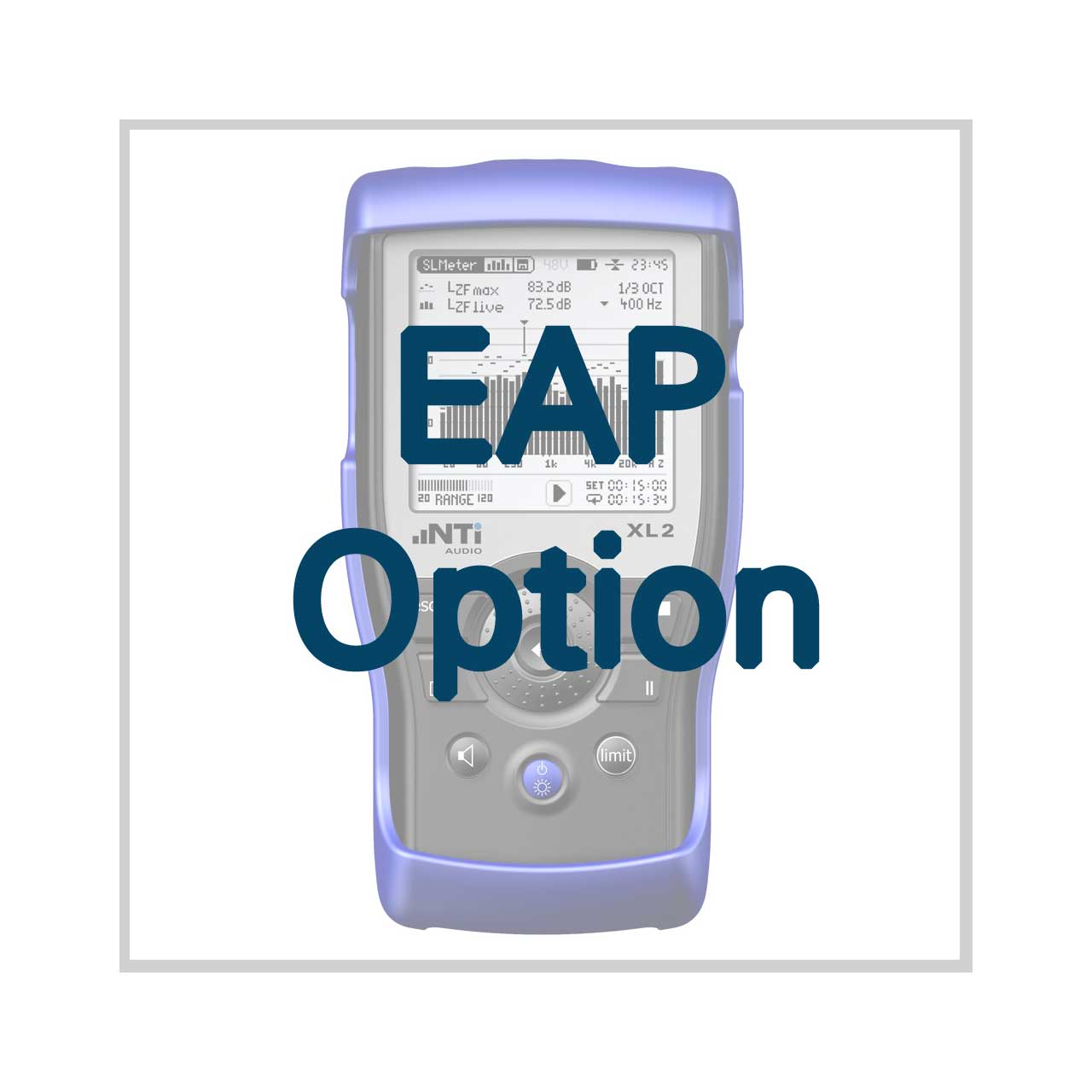

NTI 600-000-339 XL2 Extended Acoustic Pack - EAP Option for the XL2 Analyzer

ITEM #: NTI-XL2-EAP MFG #: 600 000 339

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$879.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • This item is not returnable. See Terms & Conditions for details.


600 000 339 - Overview

Extended Acoustic Pack

The Extended Acoustic Pack supports the daily tasks of acoustic consultants. It offers additional features for sound level logging and acoustic measurements, such as recording linear wav-files, percentile statistics, sound exposure level, 100 ms logging, event monitoring, reverberation time RT60 in 1/3 octave resolution, Zoom-FFT with 0.4 Hz resolution and many more.
The Extended Acoustic Pack, when installed on your XL2, supports the daily tasks of acoustic consultants. It offers additional features for sound level logging and acoustic measurements, such as recording linear wav-files, percentile statistics, sound exposure level, 100 ms logging, event monitoring, reverberation time in 1/3 octave resolution, Zoom-FFT with 0.4 Hz resolution and many more.

  • Features:

    • SLMeter/RTA function
    • Recording of wav-files (24 bit, 48 kHz), a new wav-file is started after each hour (max. wav-file size 512 MB)
    • Percentile statistics for wide band, 1/1 and 1/3 octave spectrum: 1%, 5%, 10%, 50%, 90%, 95%, 99%
    • Sound Exposure Level LAE
    • 100 ms logging
    • Event-triggered audio and data recording
    • Time weighting: Impulse (LxI, LxIeq with x= A, C, Z)
    • True peak level in 1/1 and 1/3 octave resolution
    • Clock-impulse maximum level (TaktMax) and values as specified in DIN 45645-1
    • FFT function
    • High-resolution Zoom-FFT with selectable frequency ranges and resolution up to 0.4 Hz in the range of 5 Hz to 20 kHz
    • RT60 function
    • Reverberation time RT60 in 1/3 octave resolution
