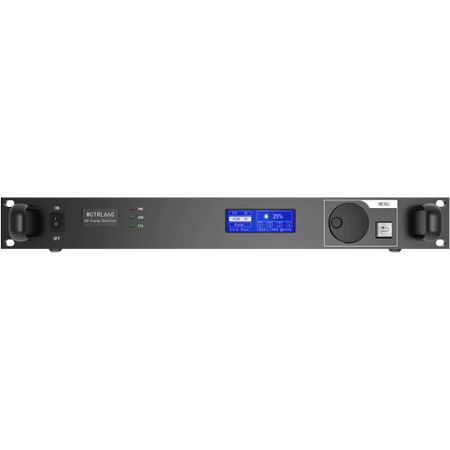

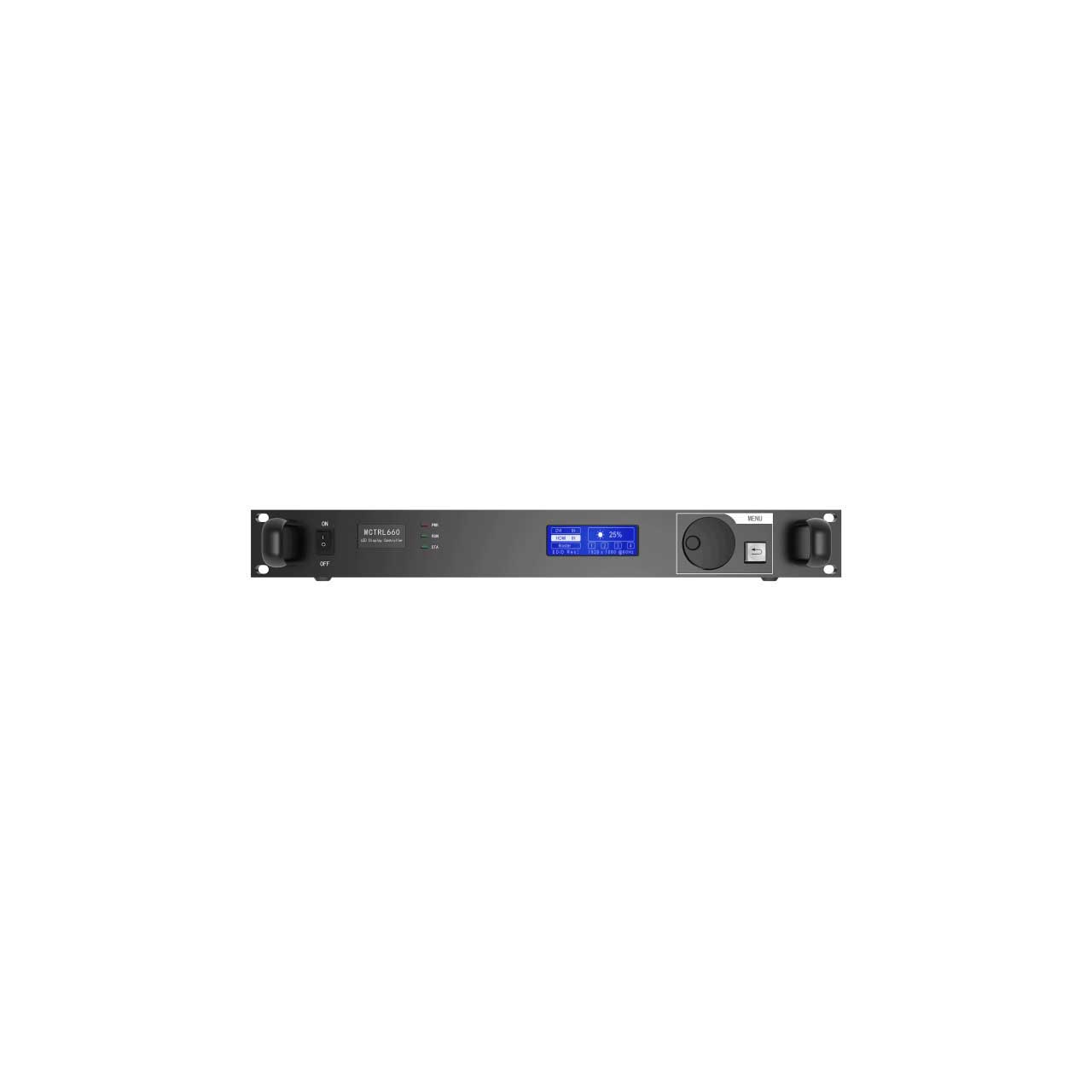

Novastar MCTRL660 1920x1200 HDMI/DVI LED Display Controller for Digital Signage

Name: Novastar MCTRL660 1920x1200 HDMI/DVI LED Display Controller for Digital Signage
Brand: Novastar
SKU: NVA-MCTRL660
Price: 799.99 USD
Availability: PreSale

ITEM #: NVA-MCTRL660 MFG #: MCTRL660

Novastar

List Price:

$1,199.95

Our Price:

$799.99

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

MCTRL660 - Overview

Novastar MCTRL660 is a controller developed by NovaStar with a single-unit loading capacity of 1920x1200@60Hz. MCTRL600 utilizes UART to cascade and control multiple units. Suitable for a variety of applications, especially rental and fixed installations such as stage broadcasts, monitoring centers, sports arenas, and more.

The MCTRL660 adopts an innovative architecture to implement smart screen configuration without using a computer, allowing a screen to be configured within 30 seconds. It also allows users to adjust screen brightness manually, which is faster and more convenient.

True hot backup, No flickering, no blackout - One-button upload of settings and parameters

Features:
- 12bit/10bit HDMI input, DVI input
- HDMI.DVI loop output for cascading or monitoring
- HDCP Blue-ray directly input
- 8bit video source loading capacity of 1920x1200@60Hz.
- 12bit video source loading capacity of 1440x900@60Hz
- Support for custom resolutions: 3840 pixels of H resolution, 3840 pixels of V resolution

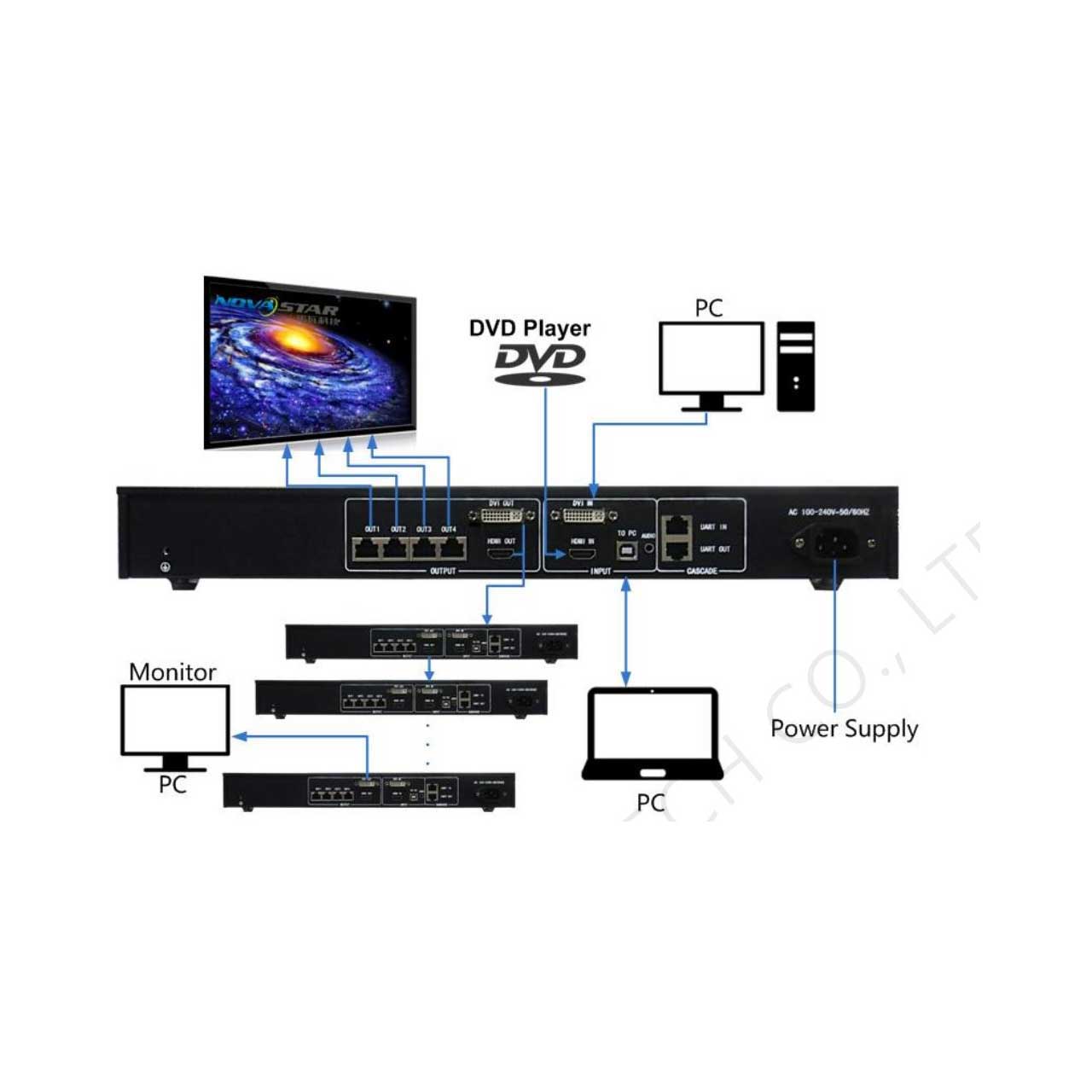

- Supports cascading for control of multiple units
- Support for multiple signal formats: RGB, YCrCb4:2:2, YCrCb4:4:4
- Certifications, CE, RoHS, FCC, UL, EAC
- Adopts NovaStar G4 engine to realize a perfect display image with no flickering or scanning lines, as well as fine quality and good sense of depth.
Specifications:
- Inputs
- DVI In:
  Single-link DVI connector
  Resolution up to 1920x1200@60Hz and downward compatible
  Custom resolutions supported: Resolution with maximum width: 3840x600@60Hz / Resolution with maximum height: 800x2560@60Hz
- Audio
  Audio input connector
- HDMI In
  HDMI 1.3 compliant
  Resolution up to 1920x1080@60Hz and downward compatible
  Custom resolutions supported: Resolution with maximum width: 3840x600@60Hz / Resolution with maximum height: 800x2560@60Hz
  l Support HDCP 1.4.

  Output
- RJ45 x4
- 4 Gigabit Ethernet outputs
- Maximum loading capacity of a single Ethernet port: 650,000 pixels
- Support redundancy between Ethernet ports.

  Control
- To PC: Type-B USB port for connecting to PC
- UART In: Input port for cascading devices
- UART Out: Output port for cascading devices. Up to 20 controllers can be cascaded.

  Power
- AC 100V~240V-50/60Hz
Item Includes:
- 1x Novastar MCTRL660 1920x1200 HDMI/DVI LED Display Controller
GTIN:
0818651027754

MCTRL660 - Recommended Accessories

Absen KL1.2II 25 x 14 x 2.55 Inch LED Digital Signage Display - 1.25mm Pixel Pitch - 512 x 288 - 800nit
ABS-KL1-2II
Our Price: $2,599.00
Connectronics CAT6A Snagless Molded 600MHz UTP 10 Gigabit Ethernet Patch Cable - 10 Foot - Black
CAT6A-010-BK
Our Price: $7.95
Connectronics ULTRA High Speed 8K HDMI 2.1 AM/AM Cable - 6 Foot
HDMI-21-06FT
Our Price: $7.49
Connectronics Dual Link DVI-D Male to DVI-D Male Cable 6Ft
DVID-DVID-6
Our Price: $7.99
CE Labs MP90R 4K HDMI High Definition Digital Signage Media Player
CEL-MP90R
Our Price: $450.00
USB 2.0 Cable Type A to Type B 6 Feet
USB-AB-6
Our Price: $3.92
West Penn 254246 23 AWG 4 Pair Cat6 Plenum Cable 1000 Ft. Reel in Box Black
WP-254246-1000
Our Price: $342.15
Peerless-AV DS-VW765-LAND 40-65 Inch Landscape Full-Svc Video Wall Mount
PER-DS-VW765-L
Our Price: $639.00
Triplett CTX200 PocketCAT RJ45 Ethernet - BNC COAX Network Cable Tester
BYB-CTX200
Our Price: $64.99

MCTRL660 - Reviews

MCTRL660 - Attachments

Please see the MCTRL660 Spec Sheet (pdf)
Please see the MCTRL660 Users Manual (pdf)
