Decimator Design DMON-16S Mini 3G/HD/SD-SDI 1 to 16 Multi-Viewer with SDI and HDMI out

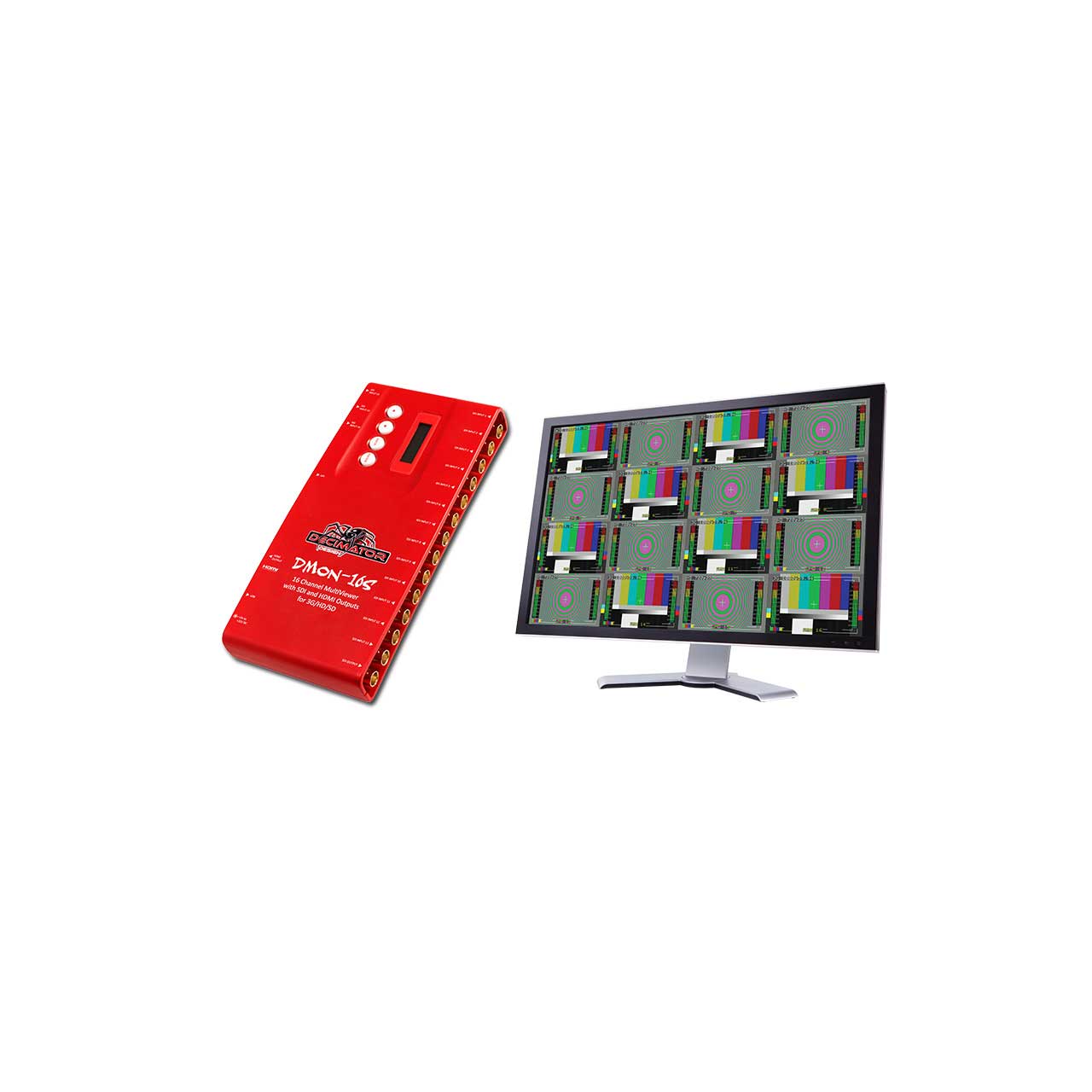

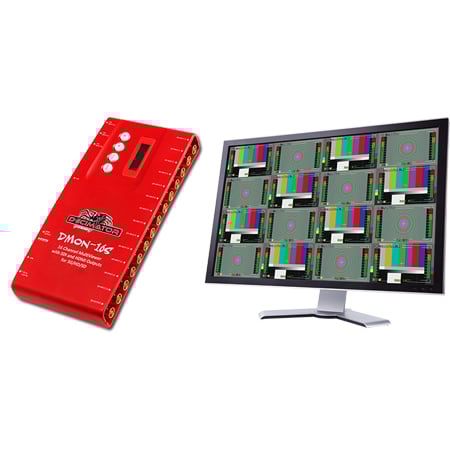

DMON-16S - Overview

• Features:

  • USB Control Panel Version 3.0.0 Mac OS X for OS-X 10.15.3 Catalina 64-bit
  • Support for both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
  • Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer or 16 to 1 input multiplexer
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Safe Action and Safe Title overlay per window with individual enables and adjustment
  • Center Cross overlay per window with individual enable
  • Audio ID overlay
  • Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
  • Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
  • Load and restore Custom Layouts
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen and Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per window
  • Pass-Through mode allowing any of the 16 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs


• Specifications:

  SDI Input & Output Formats
  • 3G:
    - SMPTE [email protected] and 2.967Gb/s
    - 1080p@60/59.94/50Hz
  • HD:
    - SMPTE 292M/274M/[email protected] and 1.435Gb/s
    - 1080i@60/59.94/50Hz
    - 1080p/psf@30/29.97/25/24/23.98Hz
    - 720p@60/59.94/50/30/29.97/25/24/23.98Hz
  • SD:
    - SMPTE 259M@270Mb/s
    - 625i50
    - 525i59.94


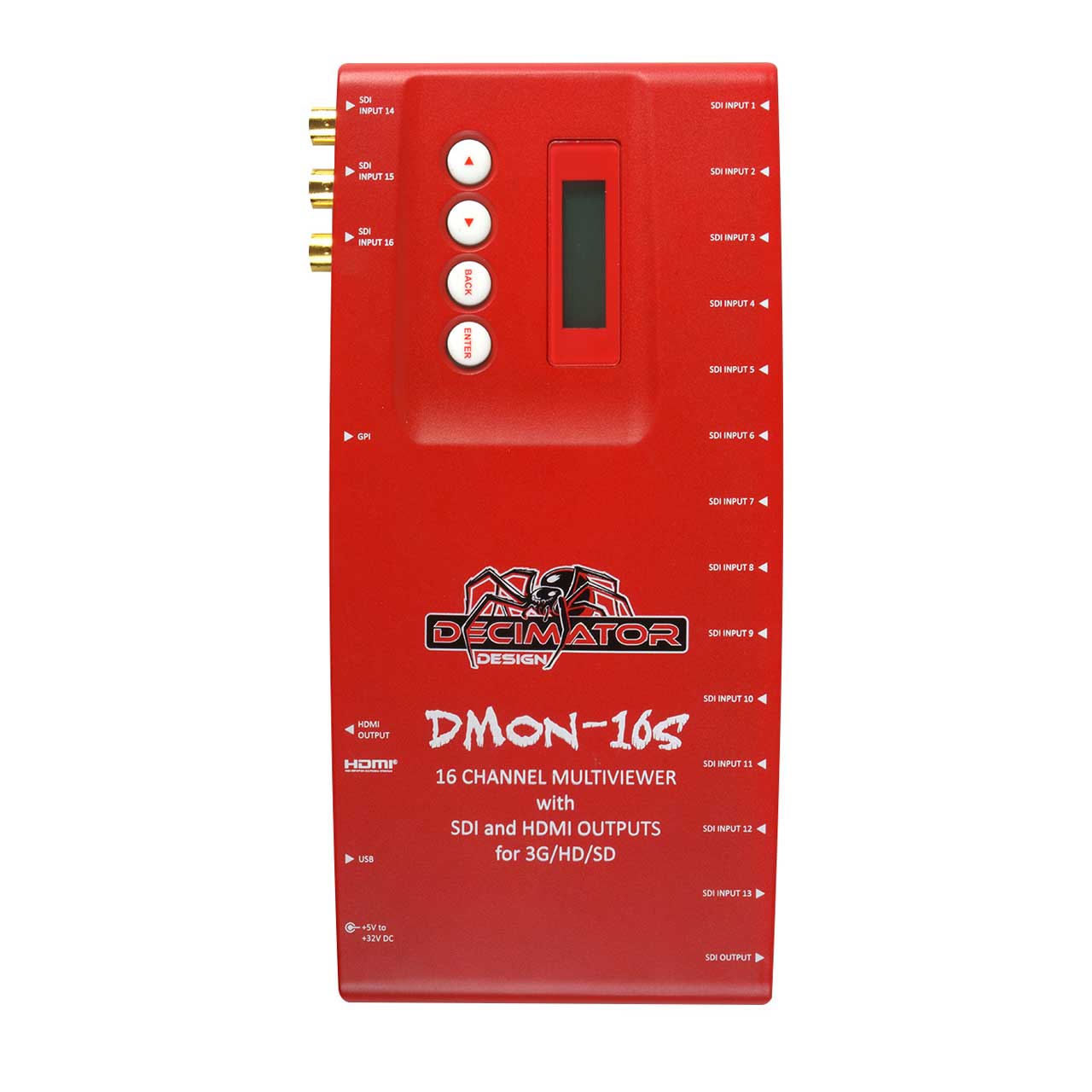

  • Inputs:
    - 16x (3G/HD/SD)-SDI
    - Input Equalization > 100M using Belden 1694A
    - USB for control and updates

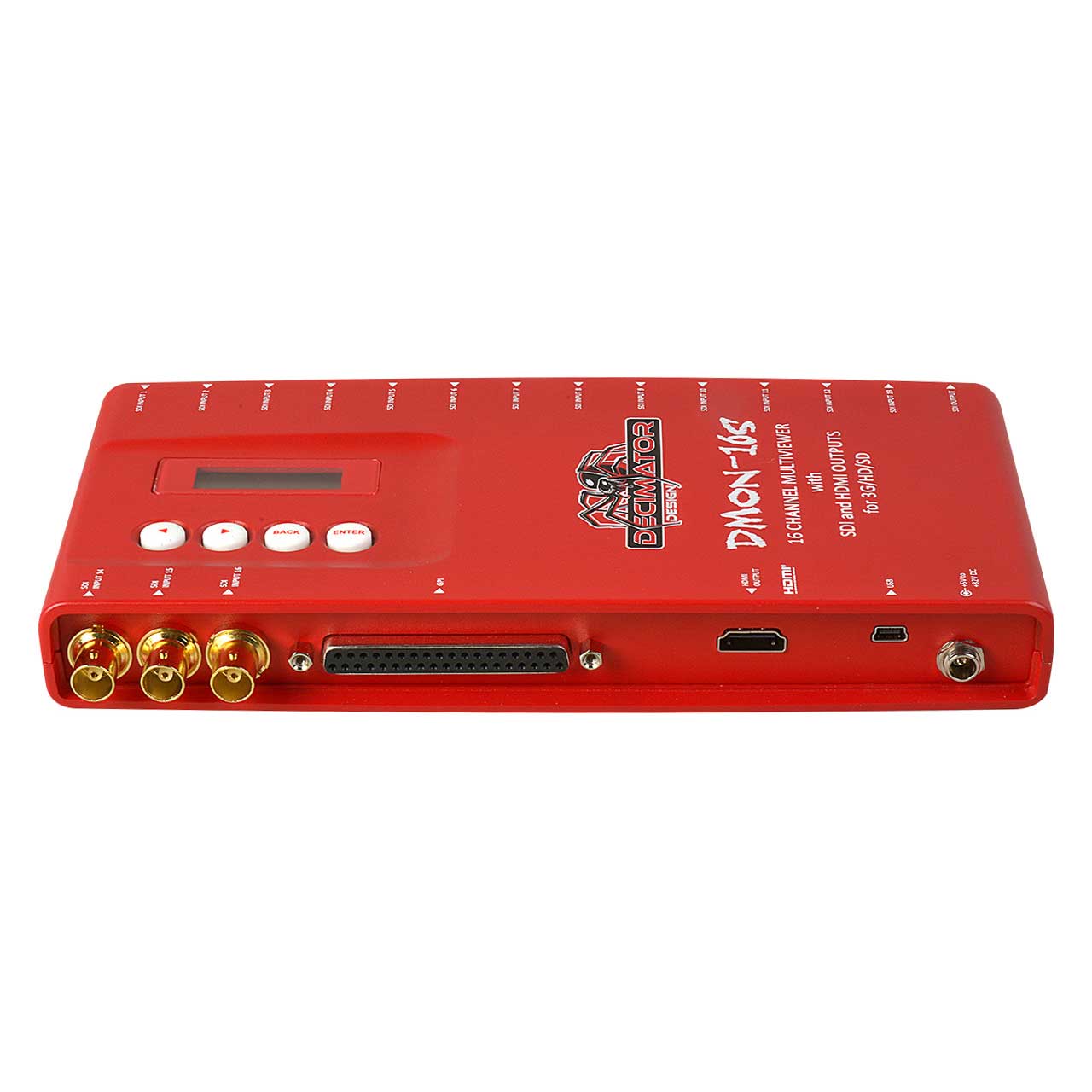

  • Outputs:
    - 1x HDMI Type A
    - 1x SDI (3G/HD/SD)-SDI
  • HDMI Output Formats:
    - 1080p@60/59.94/50Hz
    - 1080i@60/59.94/50Hz
    - 1080p@30/29.97/25/24/23.98Hz
    - 720p@60/59.94/50/30/29.97/25
    - 625i50
    - 525i59.94
  • Power:
    - +5V to +32V DC
    - Positive Center Pin

    LCD/Button Menu Options
  • HDMI output type
  • Output Select
  • Multi-Viewer Output Format
  • Multi-Viewer Number of Windows
  • Multi-Viewer Layout
  • Multi-Viewer Audio Source
  • Multi-Viewer Reference
  • Full Screen is Scaled
  • Input Routing
  • GPI mode
  • Setup

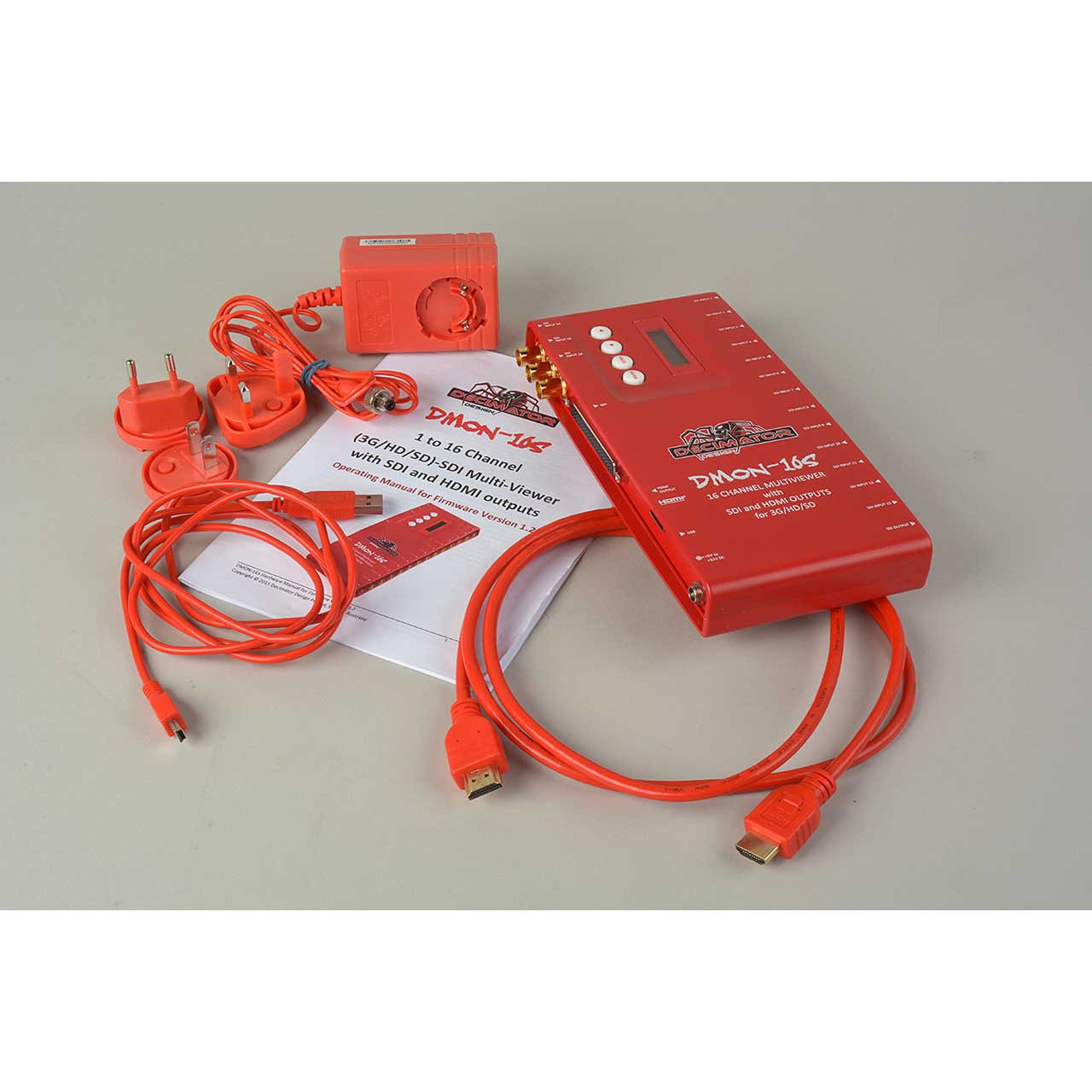

• Item Includes:

  • 1x Decimator DMON-16S Multiviewer
  • 1x Decimator DMON-16S
  • 1x Power Supply


• GTIN:

  5060417390144
