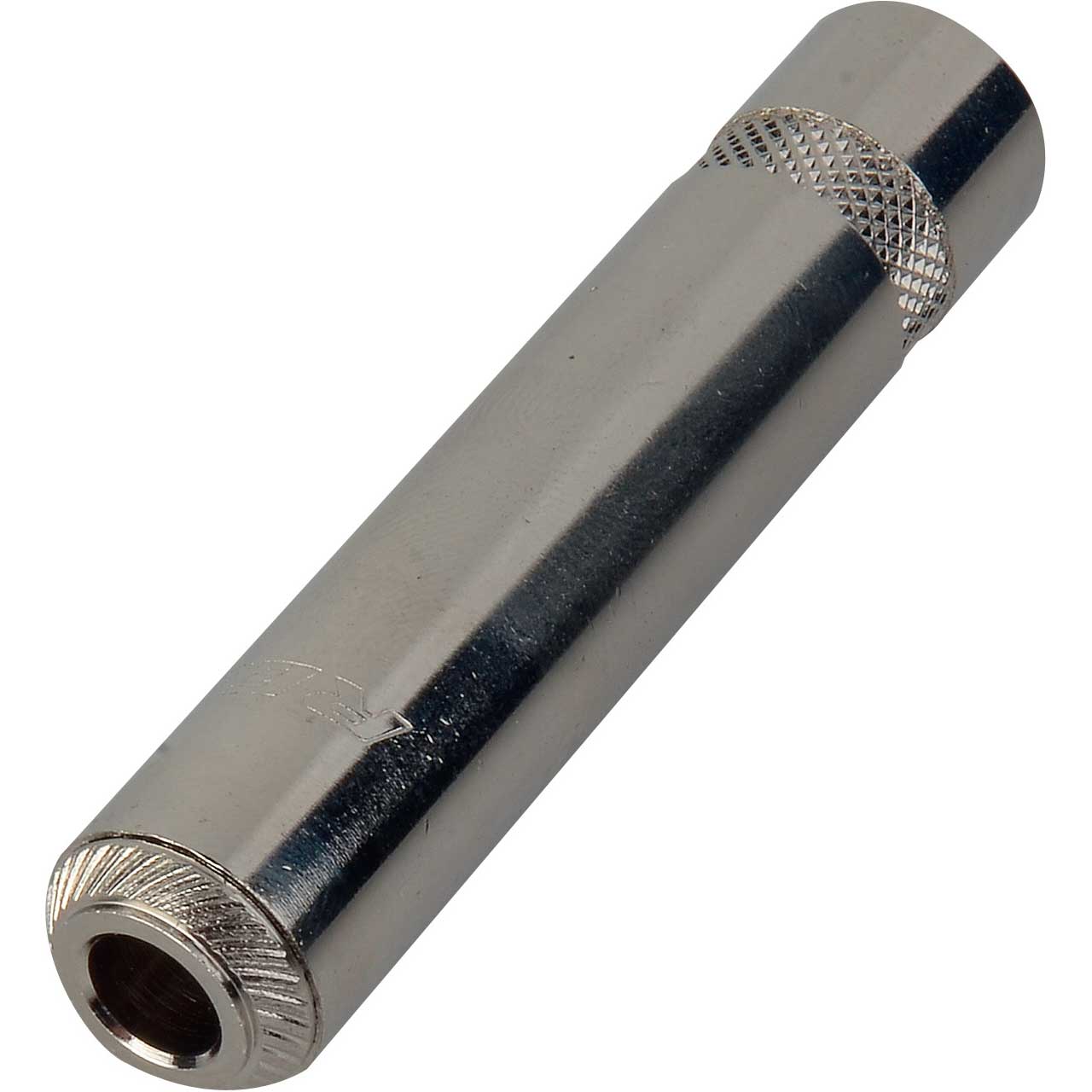

Rean NYS2203P Full Metal 3-Pole 1/4 Inch Cable Jack to 1/4 Inch Stereo TRS Female Cable Jack

NYS2203P - Overview

• Features:

  • Robust and reliable jacks in metal or plastic housing
  • Horizontal and vertical PCB-mount
  • Extra long-threaded bushing for thick panel
  • and guitar bodies
  • Plastic nut or chrome ferrule nut
  • Kinked solder pins secure jack to PCB


• Specifications:

  • Connector Type: Jack
  • Gender: Female
  • Contact Resistance: < 10 m Ohm
  • Dielectric Strength: 0,5 kVdc
  • Rated Current per Contact: 1 A
  • Cable O.D. = 6 mm
  • Insertion force: = 20 N
  • Withdrawal Force: > 10 N
  • Lifetime: > 1000 mating cycles
  • Wire Size: 24 AWG
  • Contact Plating: SnCe
  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6 30 % GR)
  • Shell: Brass (CuZn39Pb3), gal Ni plated
  • Strain relief: CRIMP type snce plated
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -20 °C to +70 °C
