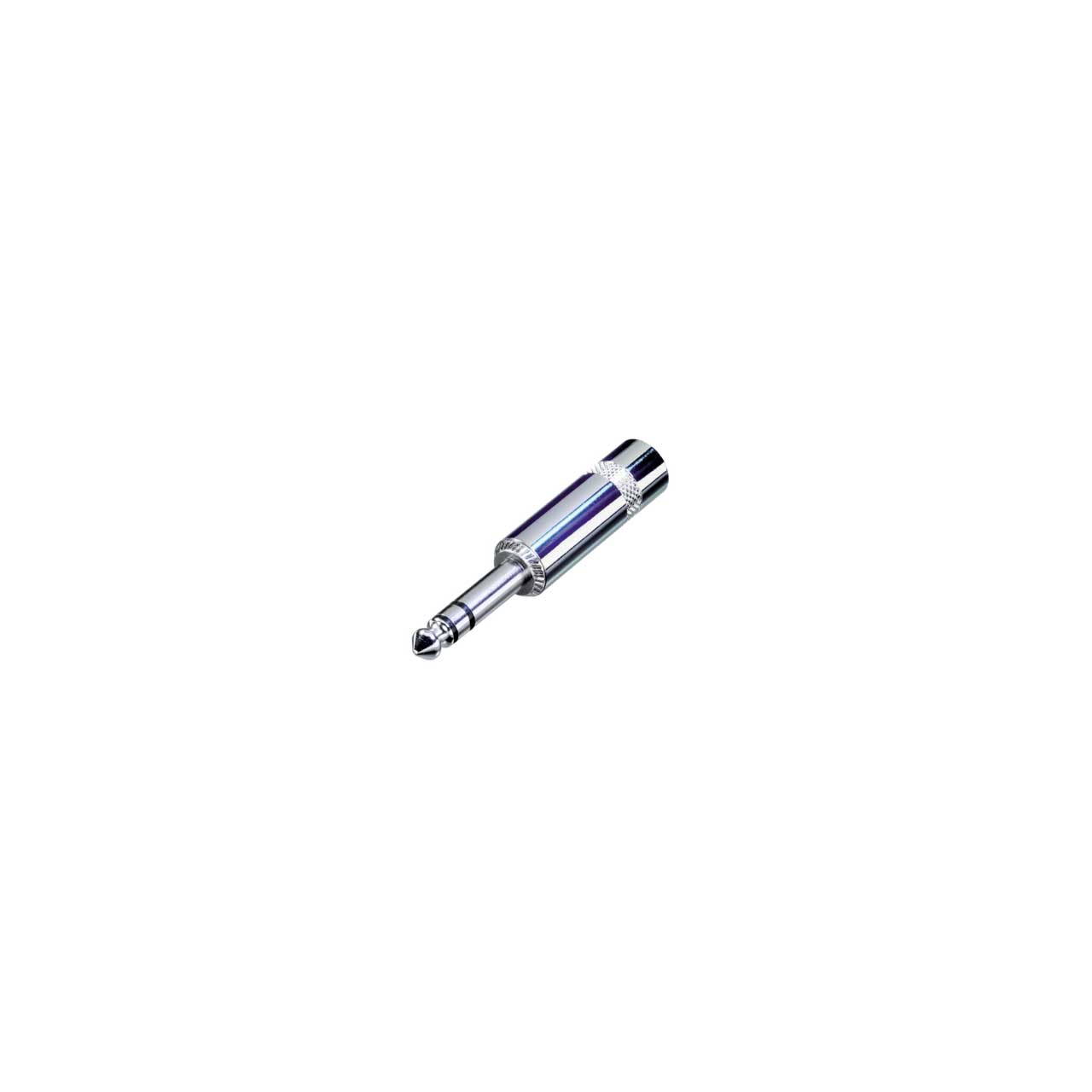

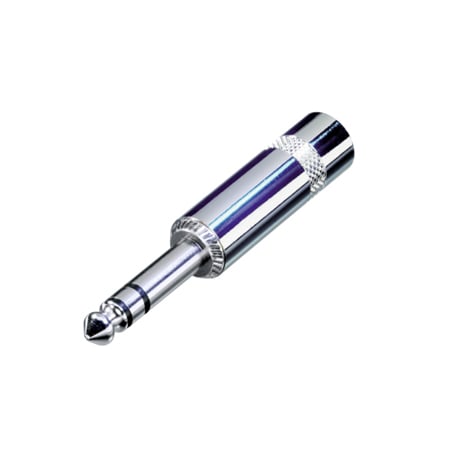

Rean NYS228 1/4 Inch TRS Connector with Long Barrel - Nickel/Silver

ITEM #: NYS-228 MFG #: NYS228

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$3.50

Our Price:

$2.10

Availability: In Stock
iAvailability Description Popup


    NYS228 - Overview

    The Rean NYS228 is the Stereo (TRS) version of the NYS 224 with black and gold plated contacts, the REAN NYS 228BG is perfect for cables up to 6mm in outside diameter. It is a commercial grade 1/4" plug manufactured to EIA RS-453 / IEC 60603-11 standards.

    With the REAN brand, you get the backing of the world's leading supplier of professional audio and video connectors - Neutrik - at an excellent cost-performance ratio and reliable functionality. The REAN connector is widely respected for its low profile design and ease of integration and assembly.

    • Features:

      • TRS 1/4" Plug with Black and Gold Contacts
      • Commercial 1/4" plugs and adapters
      • All connectors according to EIA RS-453 / IEC 60603-11
      • Short and long turned brass handles
      • Plastic handle with flexible strain relief
      • Heavy duty cable clamp for best strain relief
      • Low profile design
      • Ease of integration and assembly.

    • Specifications:

      • Electrical
      • Contact Resistance =10 mO
      • Insulation Resistance: >200 MΩ(Initial)
      • Dielectric Strength 500 V dc 50HZ

        Mechanical
      • Insertion and Withdrawal Force: 5-40N
      • Lifetime: >5,000 Mating Cycles

        Material
      • Tip: Brass
      • Bushing: PA66+30%GF
      • Insert: Brass
      • Sleeve: Brass
      • Insulation: PVC
      • Threaded Nut: Brass
      • Insulator: PA66+30%GF
      • Housing: Zinc
      • Soldering Contact: Brass
      • Cable Clamp: Steel
      • Tip Nickel: Plating
      • Insert: Nickel Plating
      • Sleeve: Nickel Plating
      • Threaded Nut: Nickel Plating
      • Housing: Nickel Plating
      • Soldering Contact: Tin and Cer
      • Cable Clamp: Tin and Cer
