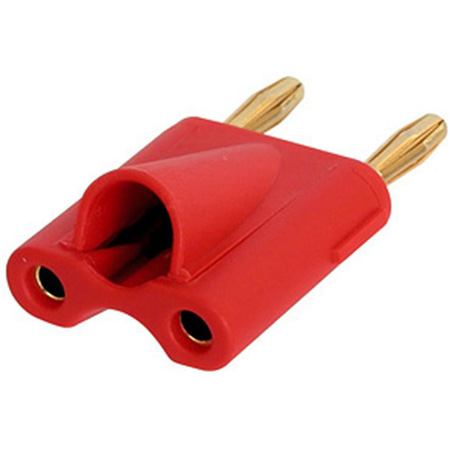

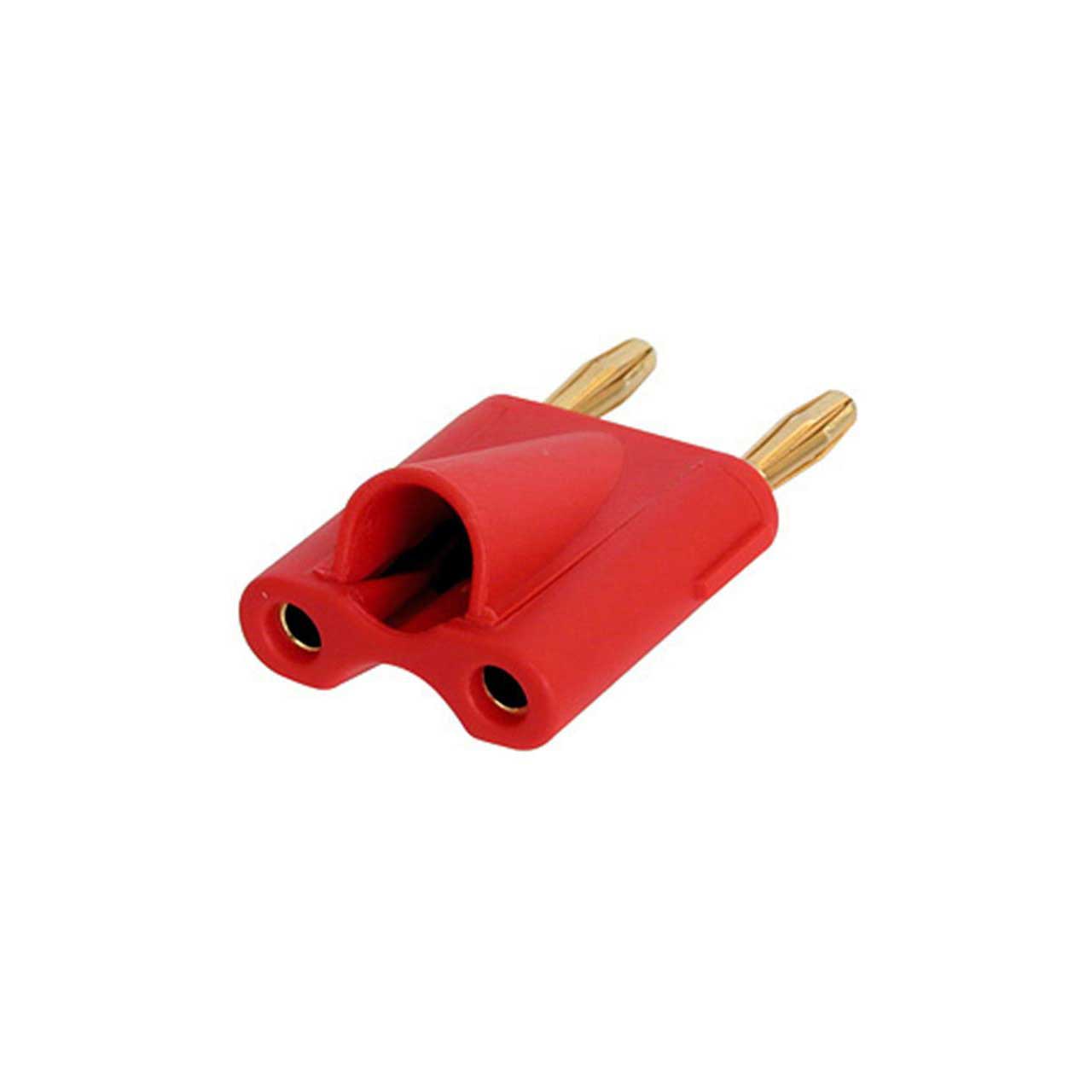

Rean NYS508-R Dual Banana Plug for 6-10mm Cable OD - Red

ITEM #: NYS508-R MFG #: NYS508-R

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Rean
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$5.65

Our Price:

$3.39

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NYS508-R - Overview

The Rean NYS508 Series Dual Banana Plugs have a teethed cable clamp and feature protection against electric shock. Cable ends and plugs are completely covered in mated condition.

  • Specifications:

    • Electrical
    • Contact Resistance: <10 mΩ
    • Insulation Resistance: >1000 MΩ(Initial)
    • Dielectric Strength: 500V dc
    • Rated Voltage: 50 VAC

      Mechanical
    • Insertion Force: ≤56N
    • Withdrawal Force: >7.5N
    • Lifetime: >1000 Mating Cycles

      Material
    • Front-plug Assembly: Brass
    • Retainers: PA6+30%GF
    • Cover: PA6+30%GF
    • Nut: Steel
    • Chuck: POM
    • Nut: Nickel Plating
    • Front-Plug Assembly Gold Plating
