OMC Tech VP3-C0-8D13L-G 3G SDI Coaxial Dual RX - 100m - HD-BNC Connector - Non-MSA - I-temp -40-85C

Name: OMC Tech VP3-C0-8D13L-G 3G SDI Coaxial Dual RX - 100m - HD-BNC Connector - Non-MSA - I-temp -40-85C
Brand: OMC Tech
SKU: OMC-VP3-C08D13LG
Price: 280.00 USD
Availability: PreSale

ITEM #: OMC-VP3-C08D13LG MFG #: VP3-C0-8D13L-G

OMC Tech

Our Price:

$280.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VP3-C0-8D13L-G - Overview

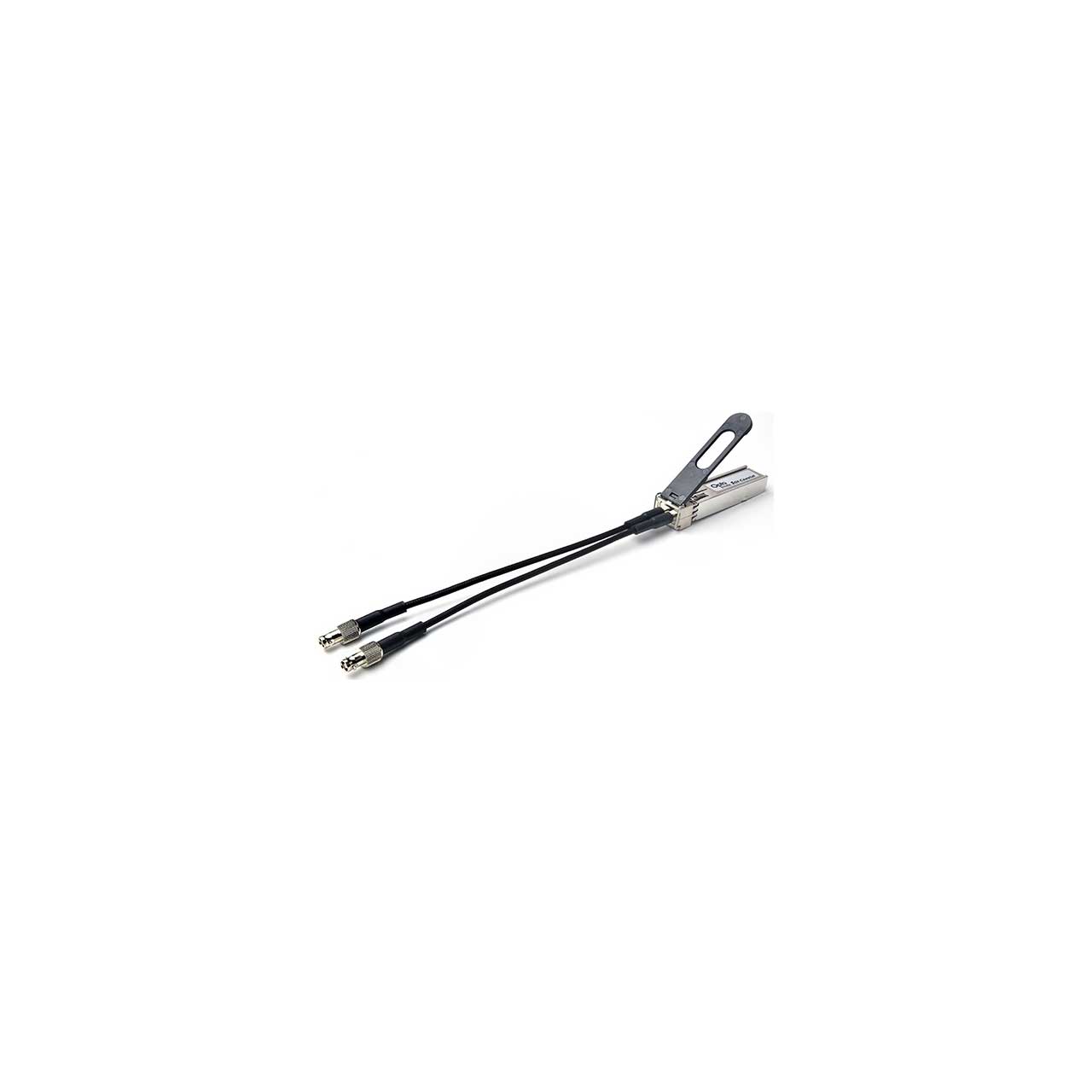

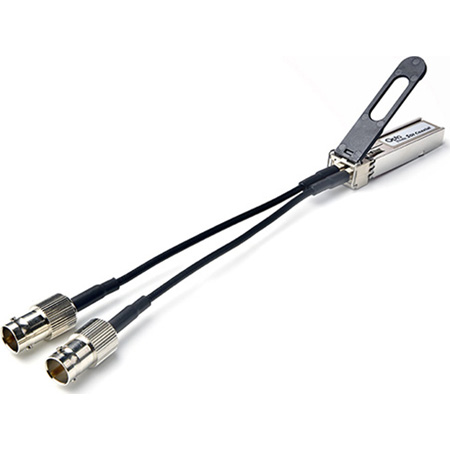

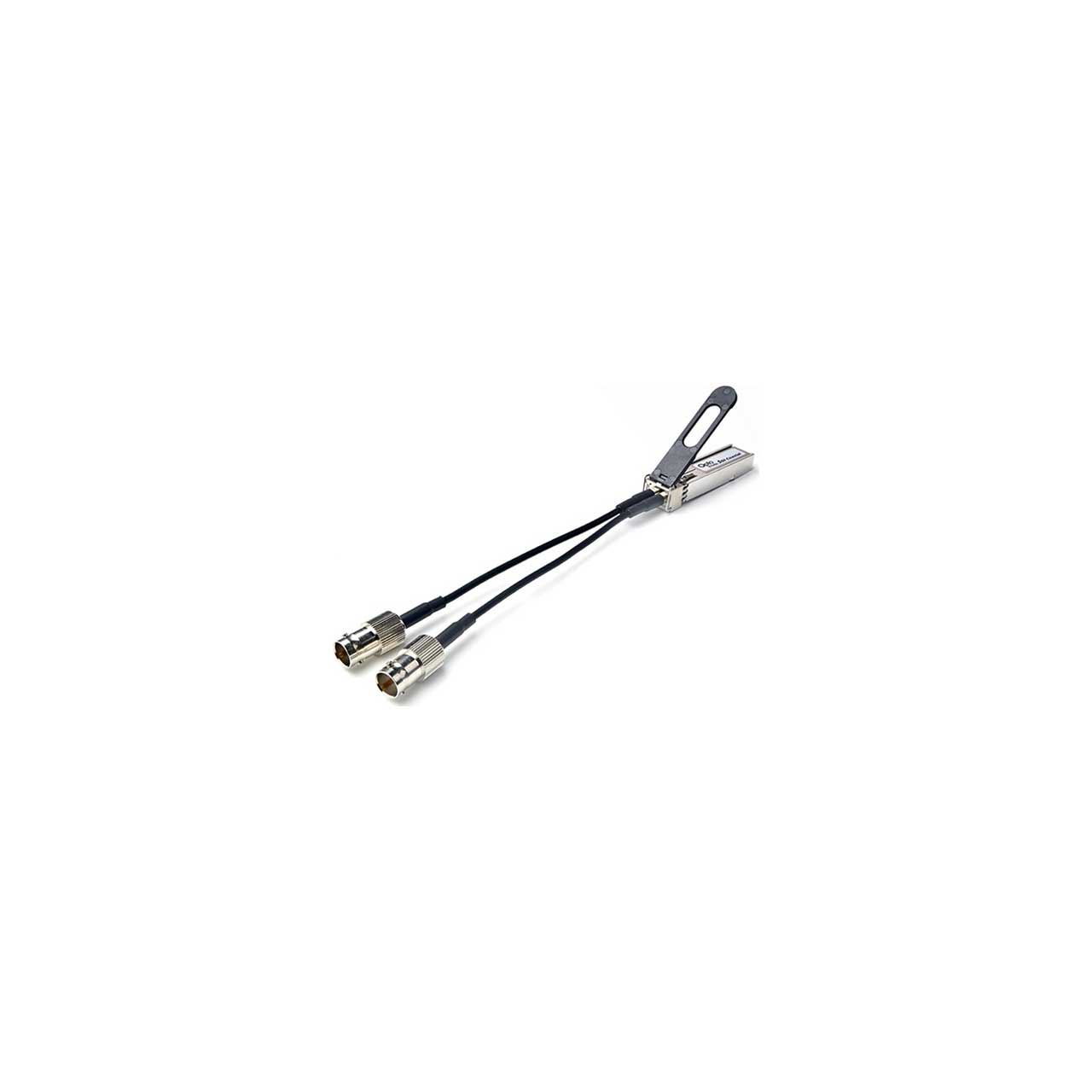

The VP3-C0-8D13L-G is a 3G SDI dual channel electrical receiver module. It receives SDI electrical signal up to ST-424 (3G), ST-292 (HD), and ST-259 (SD) and DVB-ASI over Belden 1694A cable via DIN 1.0/2.3, BNC or HD-BNC connector. It handles 3Gbps pathological patterns. The package is hot pluggable SFP. VP3-C0-8D13L-G is interchangeable with others non-MSA pinout optical SDI SFP. Paired with OptoMedia dual channel electrical transmitter module, it will receive signals with maximum distance up to 150m at 3Gbps. VP3-C0-8D13L-G is Pb-free and RoHS compliant.

Features:
- Supports ST-424 (3G), ST-292 (HD), and ST-259 (SD)
- DIN1.0/2.3, BNC, HD-BNC 75Ω connectors
- Compatible With DVB-ASI and AES10 (MADI)
- Supports pathological patterns for 3G-SDI, HD-SDI and SD-SDI
- Hot-pluggable
- Monitor function via serial interface: voltage, temperature, and module information
- Reclocked 100Ω loopback output
- SFF-8431 compliant
- Non-MSA pinout
Specifications:
- Operating Temperature: -40 to 85°C
- Storage Temperature: -40 to 85°C
- ESD Rating(HBM): +/-5.5KV to +/-6KV
- Power Supply Voltage(V): 3.13 to 3.465, Typical: 3.3
- Power Consumption(mA): Typical: 165, Max: 220
Item Includes:
- 1x OMC Tech VP3-C0-8D13L-G 3G SDI Coaxial Dual RX - 100m - HD-BNC Connector - Non-MSA - I-temp -40-85C
