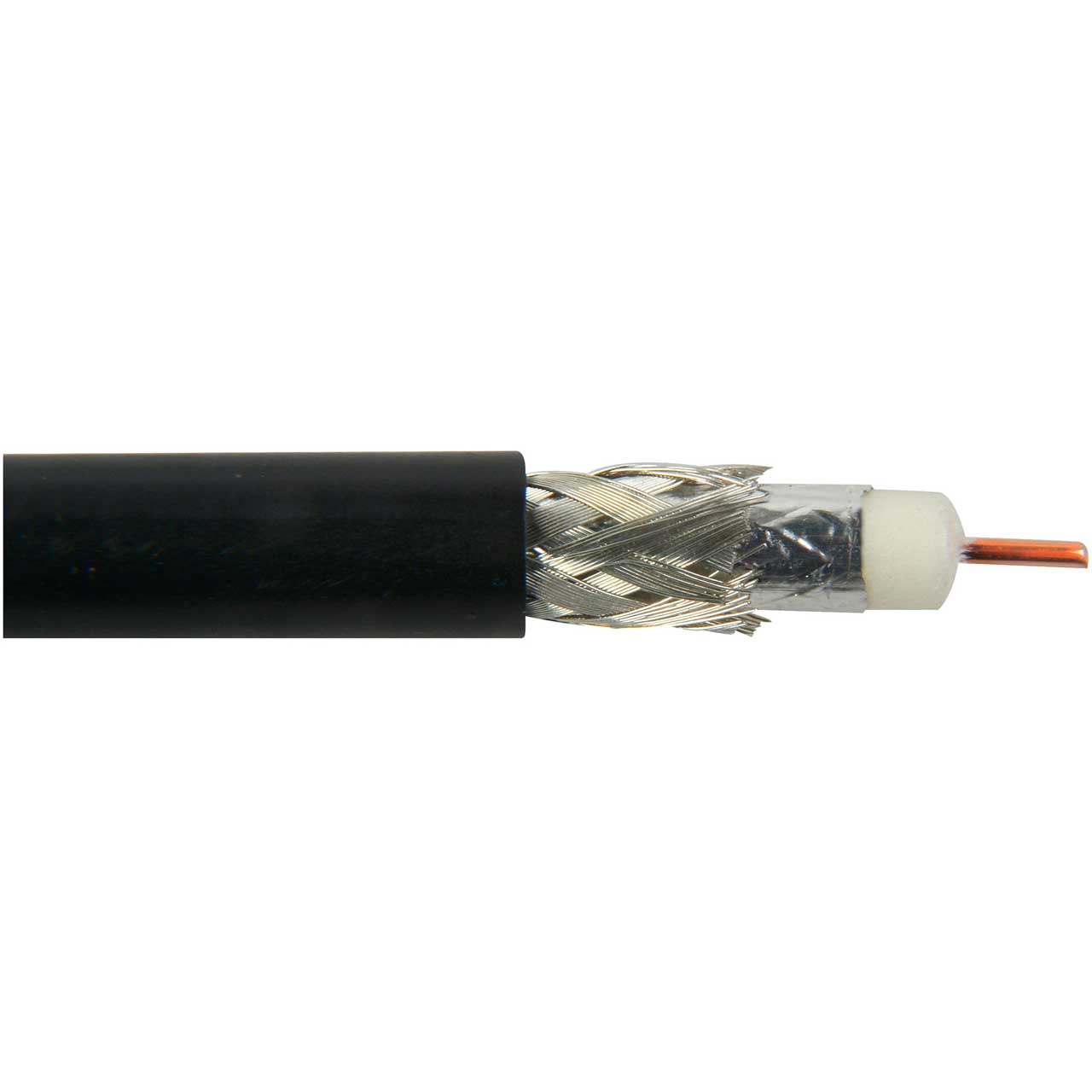

Belden 1694A 010500 CMR Rated 6G-SDI RG6 75 Ohm Digital Coaxial Video Cable 18AWG - Black - 500 Ft

1694A 010500 - Overview

Perfect for Digital Video, 6 Gb/s UHDTV and HD-SDI 1080p

• Features:

  • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
  • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
  • Easy Identification: Cable jackets feature footage room and zone markings


• Specifications:

  • Number of Coax: 1
  • RG Type: 6
  • AWG: 18
  • Stranding: Solid
  • Conductor Material: BC - Bare Copper
  • Conductor Nom. Diameter: 0.040 in
  • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
  • Nom. Insulation Diameter: 0.180 in (4.57 mm)
  • Outer Shield Material Trade Name: Duofoil®
  • Outer Shield Material: Unshielded
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Overall Cable Diameter (Nominal): 0.274 (6.96mm)
  • Plenum (Y/N): N
  • Nom. Characteristic Impedance: 75 +/- 1.50
  • Plenum Number: BL-1695A
  • Environmental Suitability: Indoor/Outdoor, Indoor, UV Resistance


• Item Includes:

  • 1694A 010500 Digital Coaxial Cable 18AWG - Black - 500 Foot


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825358169
