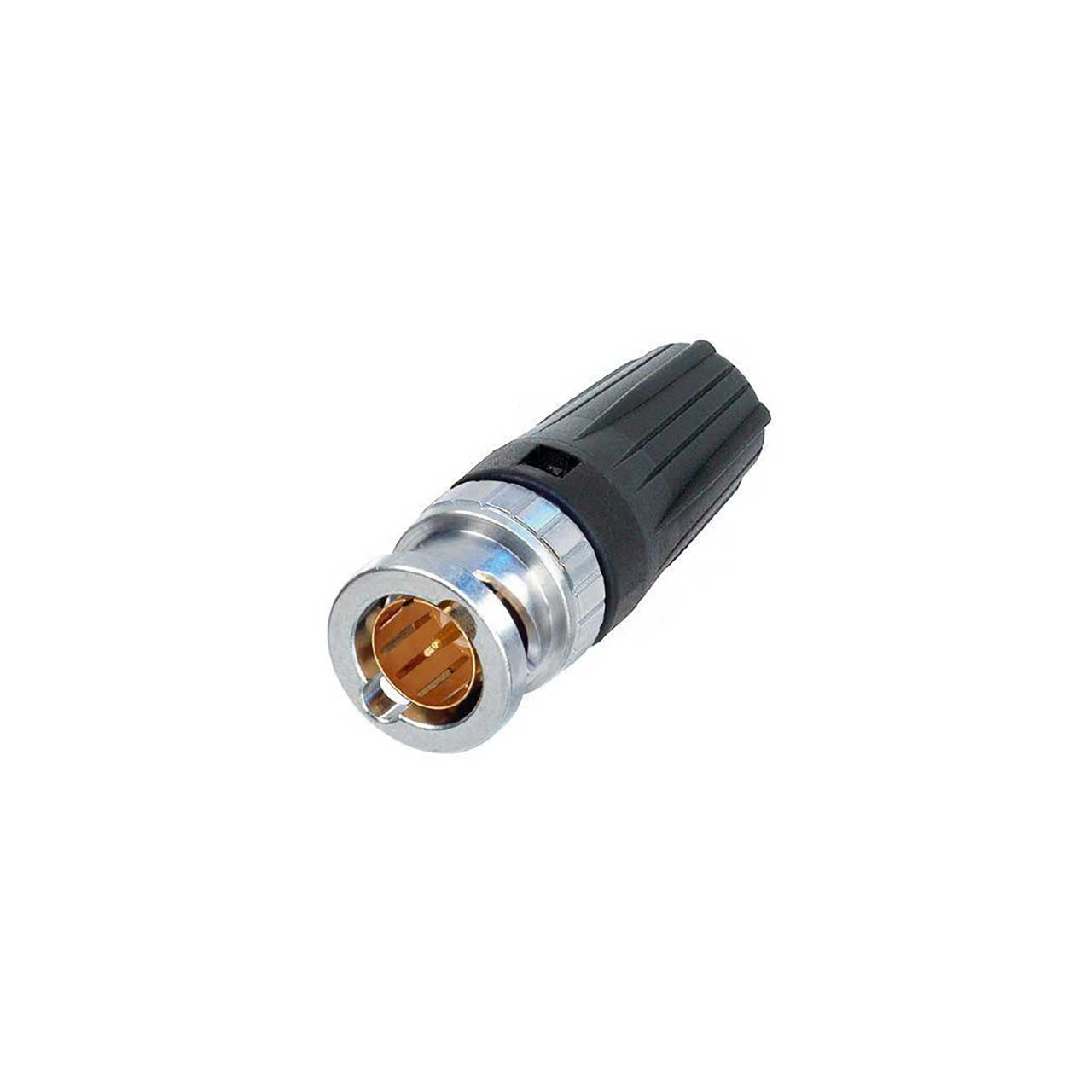

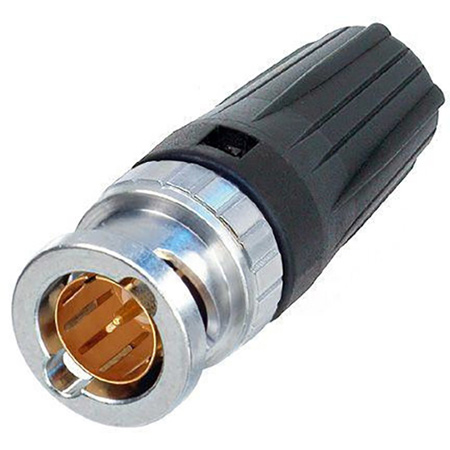

Neutrik NBNC75BTU11 75 Ohm Rear Twist BNC Connector for Belden 1694A

ITEM #: NBNC75BTU11 MFG #: NBNC75BTU11

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$3.77

Our Price:

$3.23

Availability: In Stock
iAvailability Description Popup


NBNC75BTU11 - Overview

75 Ohm BNC cable connectors in push-pull, rear twist and tiny rear twist versions. Featuring a true 75 Ohm design that meets the stringent requirements of HDTV/DVD these connectors sustain consistent impedance at high frequencies up to 3GHz; are easy to handle in high density applications such as video patchbays and switchers; shows excellent return loss and VSWR; consist of machined parts that are precisely made to Neutrik's high standards; and offer a center pin assembly with a snug fit to provide tactile indication when the contact is snapped into position.

  • Features:

    • "Rear Twist Principle" locking/unlocking using the easily accessible soft touch boot (patent pending).
    • Ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These con-nectors turn from the back not the front.
    • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies.
    • Accessories include color coded boots in 10 standard colors, crimp tool and dies.

  • GTIN:

    7613187002540
