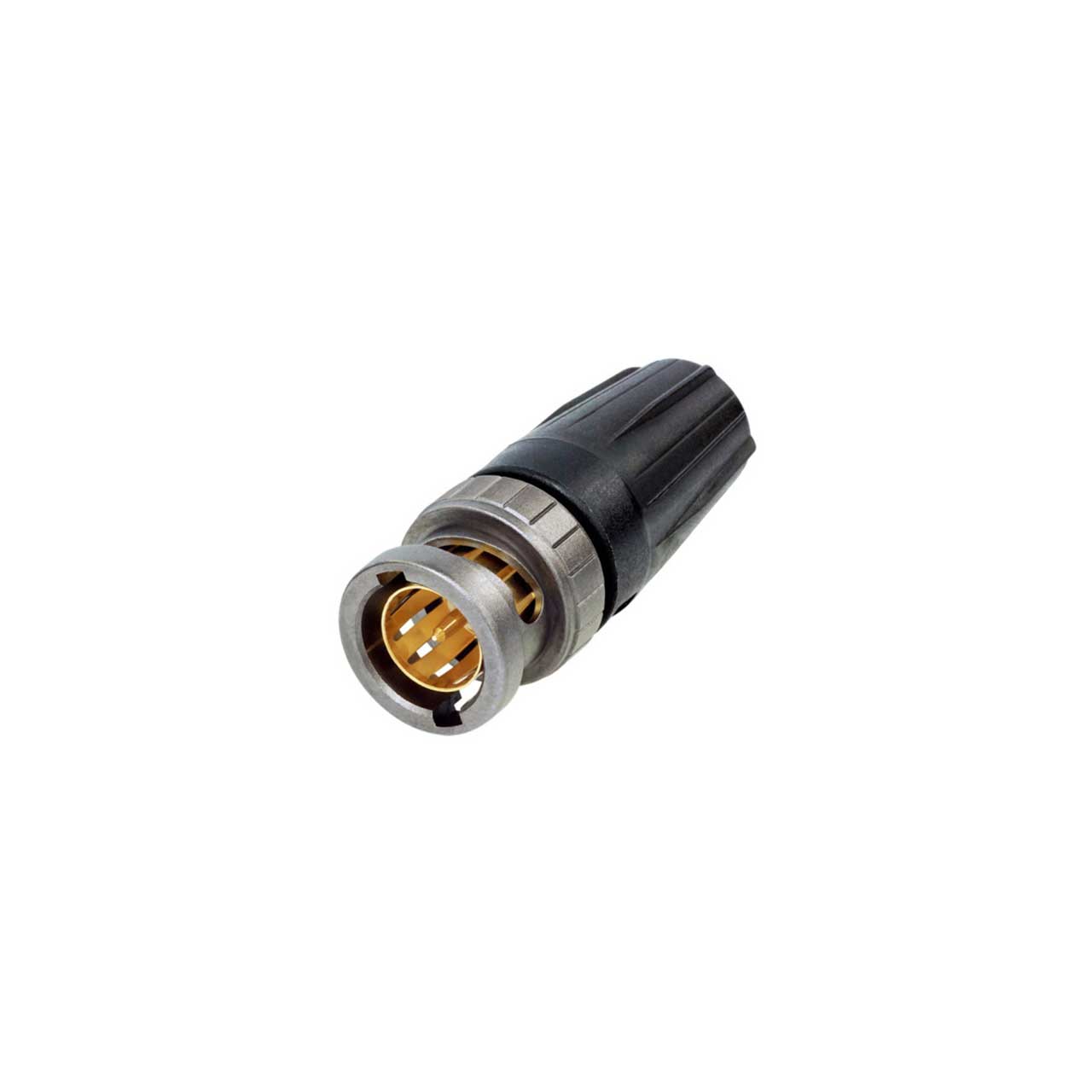

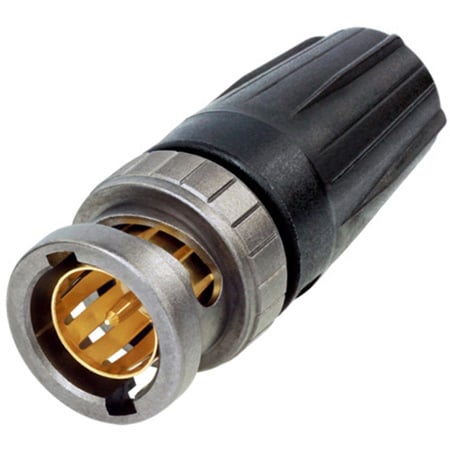

Neutrik NBNC75BTU11X rearTWIST UHD BNC Connector- Low Return Loss Values For 4K and 8K Signals.

NBNC75BTU11X - Overview

• Features:

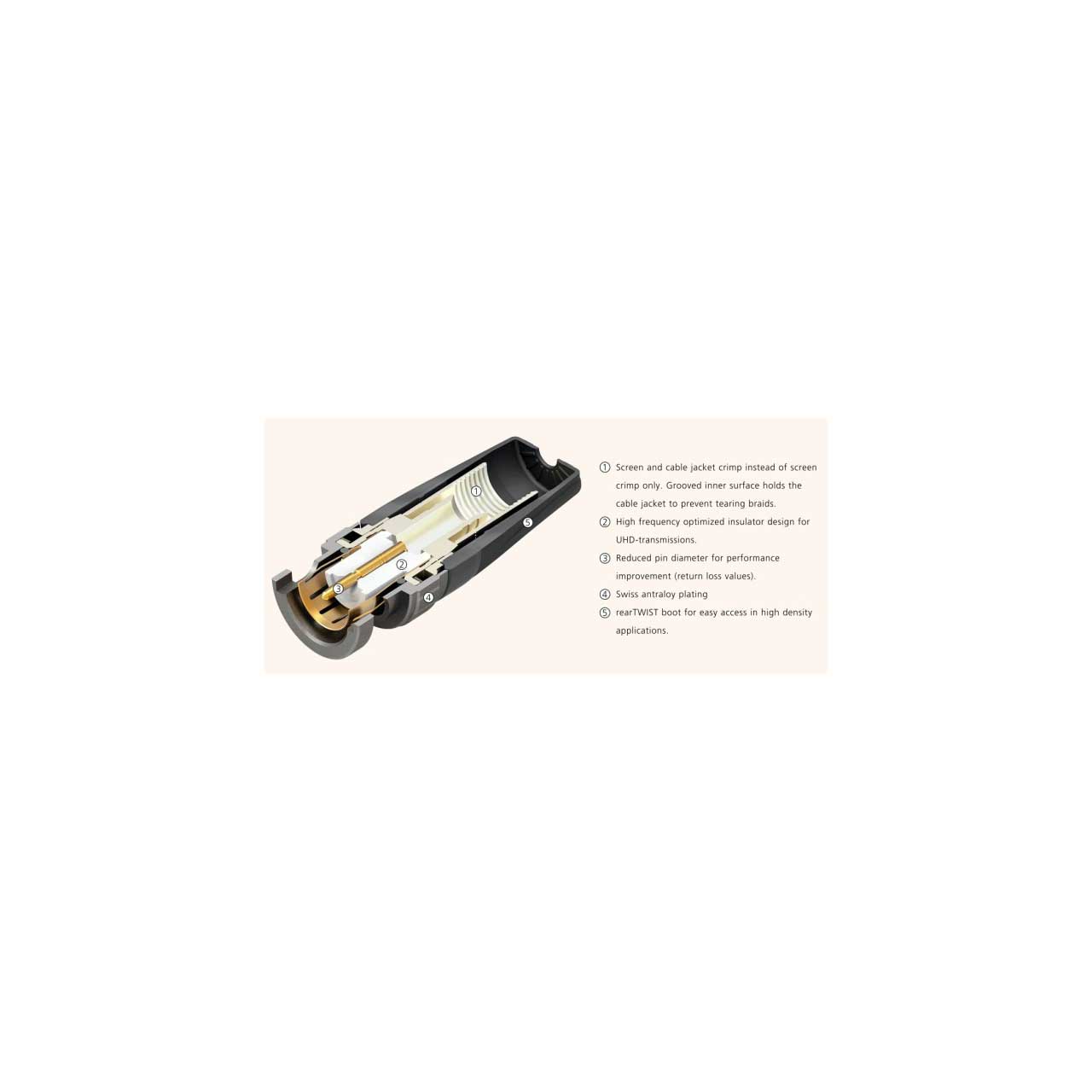

  • Optimized contact pin and insulator design for UHD-data transmissions
  • Proven rearTWIST technology
  • Swiss antraloy plating
  • Fully compatible with conventional BNC chassis connectors
  • Improved return loss values at high frequencies


• Specifications:

  • Connection Type: BNC 75 Ohm
  • Gender: Male
  • Contact resistance: = 3 milli Ohm (inner)
  • Contact resistance: = 2 milli Ohm (outer)
  • Dielectric strength: 1.5 kVdc
  • Impedance: 75 Ohm
  • Insulation resistance: > 5 GO
  • Rated voltage: < 50 V
  • VSWR:
    =1.06 / >30 dB up to 6 GHz
    =1.13 / >24 dB up to 12 GHz
    =1.22 / >20 dB up to 18 Ghz
  • Cable O.D.: 4.3 mm
  • Cable retention: > 30 N (center)
  • Crimp size: 7.36 Hex crimp (shield)
  • Crimp size (pin): 1.07 crimp
  • Insertion force: < 25 N
  • Lifetime: > 1000 mating cycles
  • Locking device: Bayonett
  • Cable anchoring: Jacket crimping
  • Contacts: Brass (CuZn35Pb2), 0.2 æm AuCo (center contact)
  • Shell: Brass (CuZn39Pb3)
  • Shell plating: Antraloy
  • Insert: PP
  • Temperature range: -30 °C to +85 °C
  • Contact crimpability: Complies with IEC 60803 and IEC 60352-2


• GTIN:

  7613187009549
