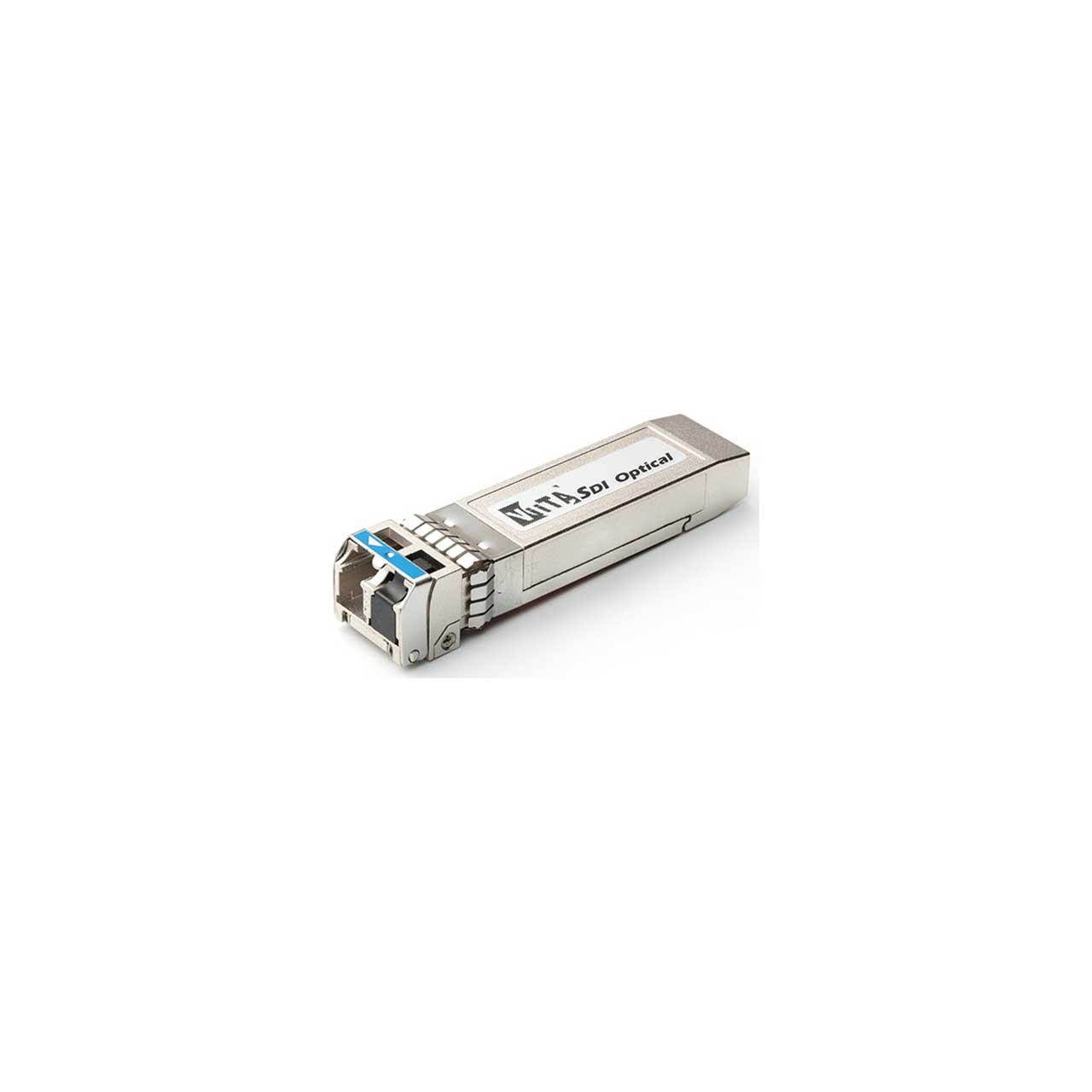

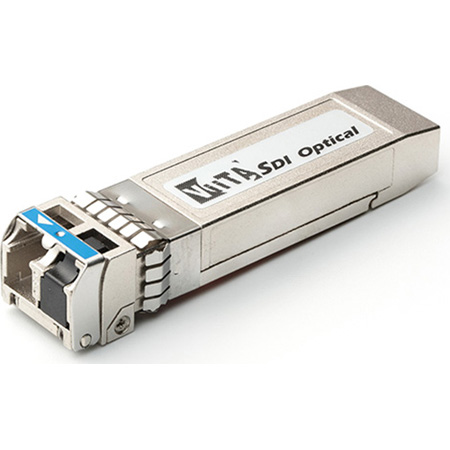

OMC Tech VPC-S1-4103K-T 12G-SDI/6G/3G/HD SFPplus Single Optical Fiber Transmitter - 1310nm - 10km / Non-MSA

ITEM #: OMC-VPC-S14103KT MFG #: VPC-S1-4103K-T

Primary Image
OMC Tech
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$329.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

VPC-S1-4103K-T - Overview

OMC Tech VPC-S1-4103K-T 12G-SDI optical fiber transmitter SFP+ perfectly converts SDI electrical signals at SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M and DVB-ASI to optical signal. It supports a data rate of 11.88Gbps and handles pathological patterns.

  • Features:

    • Support transmission of SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    • Handles pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
    • Digital diagnostics function
    • 10km over single mode fiber
    • Low power consumption- Typical 135 mA
    • Available in MSA and Non-MSA pinouts
    • LC and ST of connectors to choose from
    • 18ch CWDM wavelengths in option (1270~1610nm)


  • Specifications:

    • Wavelength (nm): 1260/1310/1360
    • Operating Case Temperature Range (°c): 0-70
    • Storage Temperature Range(°c): -40-85
    • Power Supply Voltage (V): 3.1 min, 3.3, typ, 3.5 max
    • Power Consumption (mA): 135 typ, 150 max


  • Item Includes:

    • 1x OMC Tech VPC-S1-4103K-T 12G-SDI SFPplus SMPTE/DVB-ASI Single Optical Fiber Transmitter - 1310nm - 10km / Non-MSA


  • Warranty:

    • 1 year
