OMX-EDID-EM1 - Overview

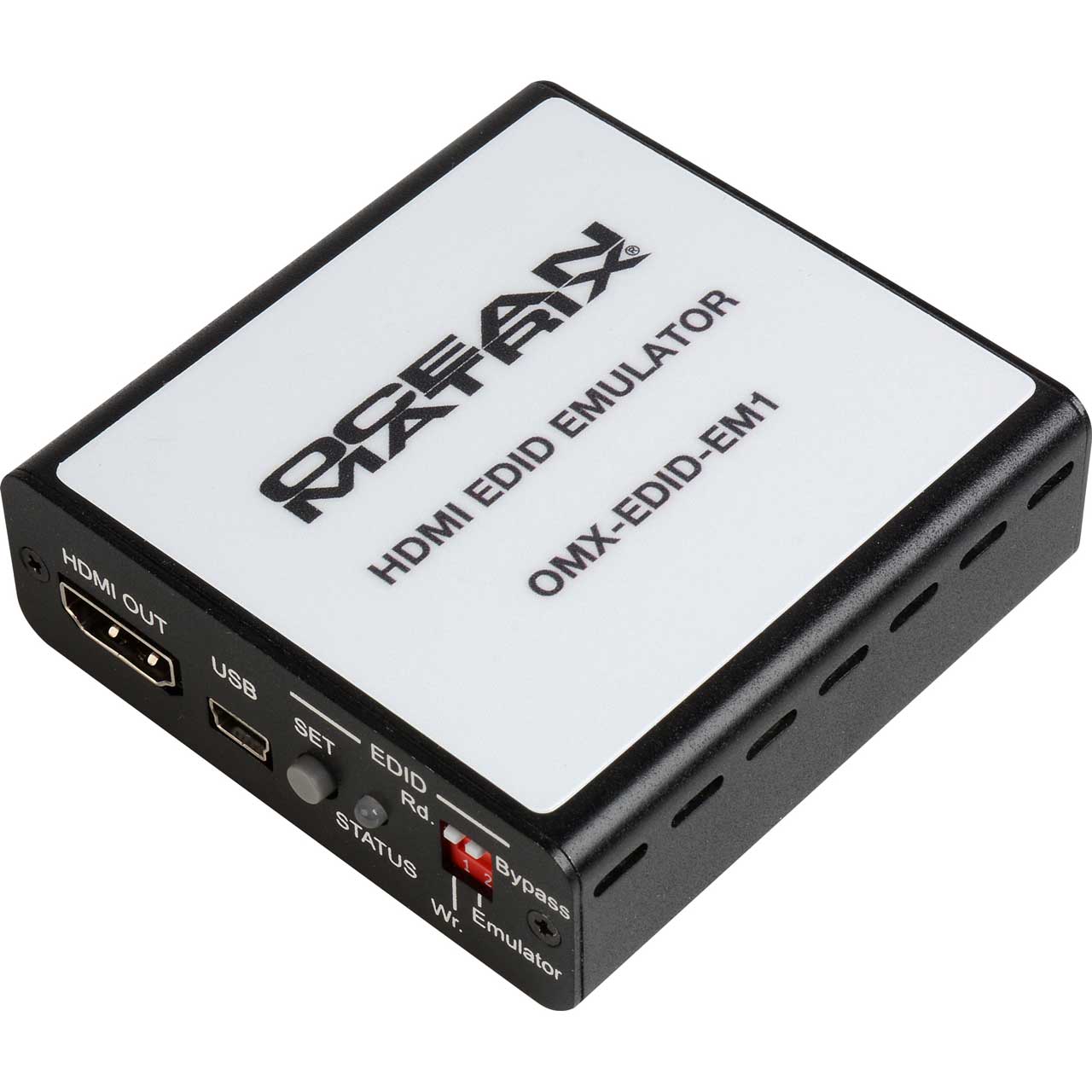

Avoid annoying compatibility issues between HDMI sources and displays with the Ocean Matrix OMX-EDID-EM1 EDID emulator.

It's a simple inline HDMI in / HDMI out device that allows the adjustment of HDMI/DVI EDID info passed between a display and source gear "syncing" the two to provide a proper video & audio signal.

The OMX-EDID-EM1 has a learning function allowing the user to Read and Write the video/audio EDID to the system. In addition, the unit supports EDID Emulation as well as a Bypass mode. Perfect for installations, system integration or for use in testing equipment.

  • Features:

    • HDMI and DVI 1.0 compliant

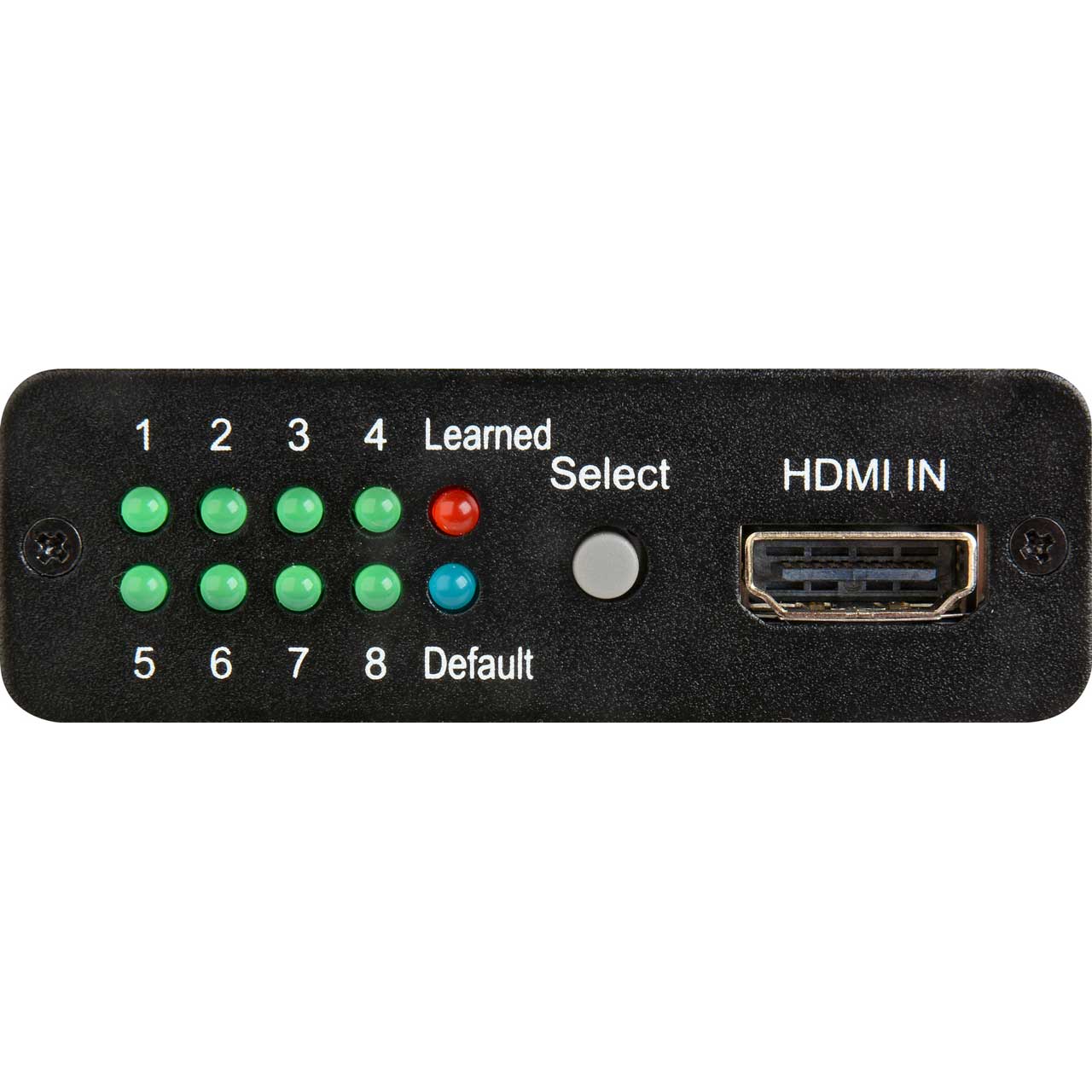

    • Supports 8 sets of default EDID
    • Supports DVI source with a HDMI to DVI adaptor
    • Supports Consumer Electronics Control (CEC) and EDID pass through
    • Can be powered through the USB or HDMI input

      Supports the following HDMI features:
    • High video bandwidth up to 300 MHz/9 Gbps
    • Resolutions up to 1080p@60 Hz and 4Kx2K@24/25/30 Hz
    • 12-bit Deep Color
    • LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio (Sampling rates from 32 kHz to 192 kHz)

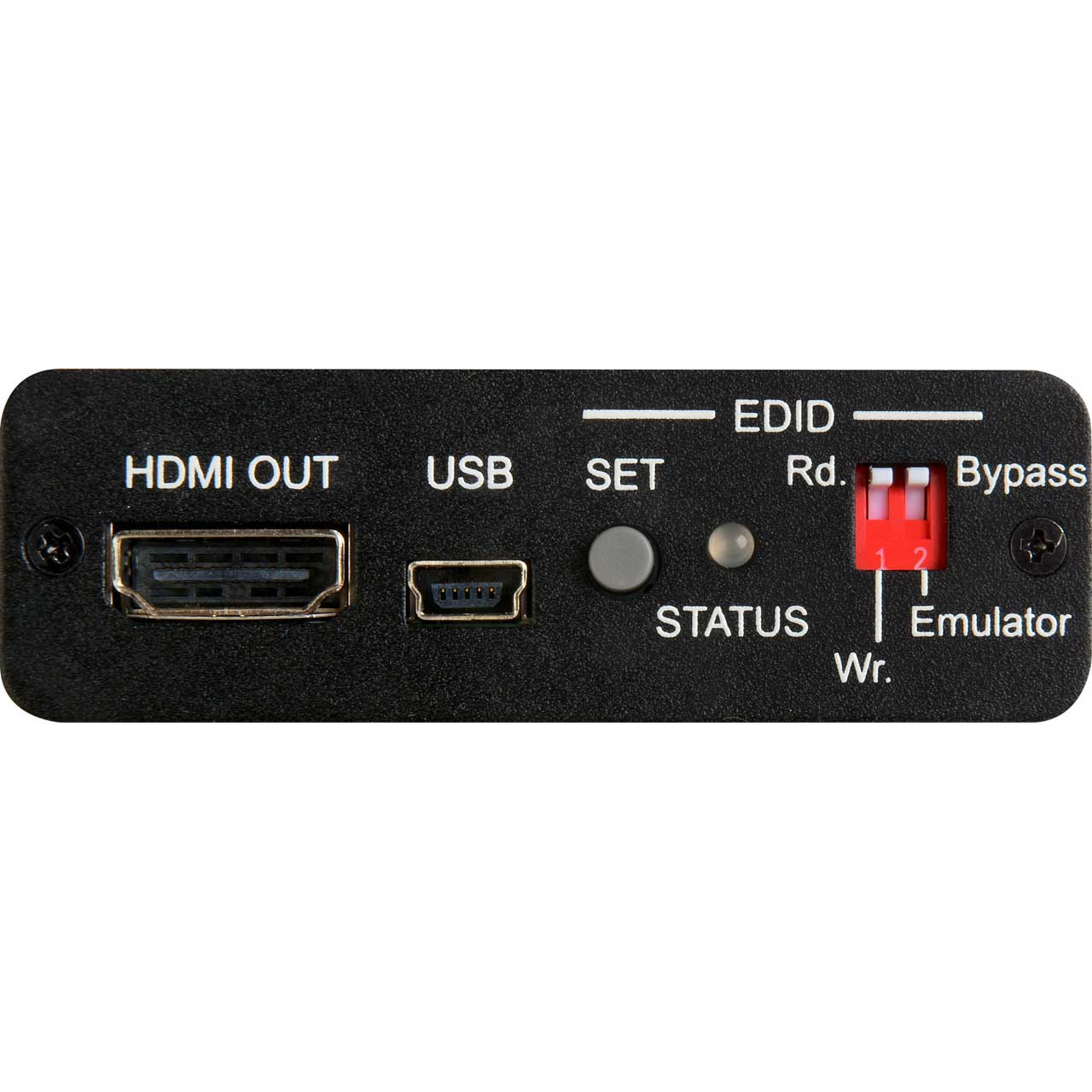

      Four EDID Modes:
    • Read: Reads the display's EDID information
    • Write: Overwrites the display's EDID information (display needs to be able to support overwrite function)
    • Emulator: Allows the source device to read the selected EDID information from the unit's default or learned EDID memory
    • Bypass: Allows the source device to read the EDID information from the TV/display directly


  • Specifications:

    • Inputs: 1- HDMI, 1-USB Mini-B
    • Output: 1-HDMI
    • Vented Enclosure
    • USB Power
    • Dimensions (LWH): 2.8 x 2.8 x 0.9in / 71 x 71 x 23mm
    • Weight: 3.81 oz / 108g


  • Item Includes:

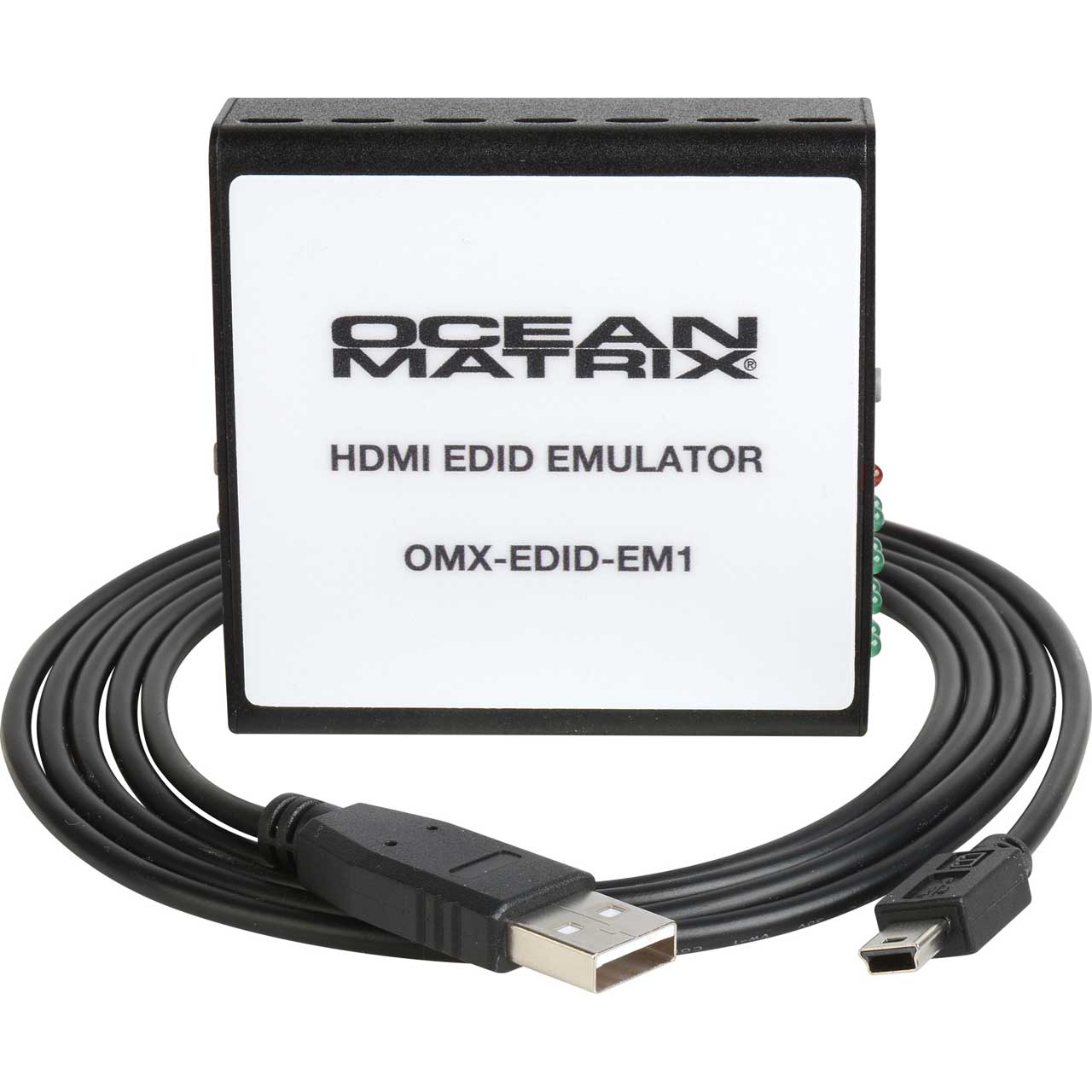

    • Mini-USB to USB Type A Cable
