Camplex opticalCON QUAD APC to Four (4) SC/APC Breakout Adapter - Single Mode

ITEM #: OPADAP-12 MFG #: OPADAP-12

Primary Image
Camplex
Free Shipping with $49 Minimum Order

List Price:

$212.49

Our Price:

$201.49

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

OPADAP-12 - Overview

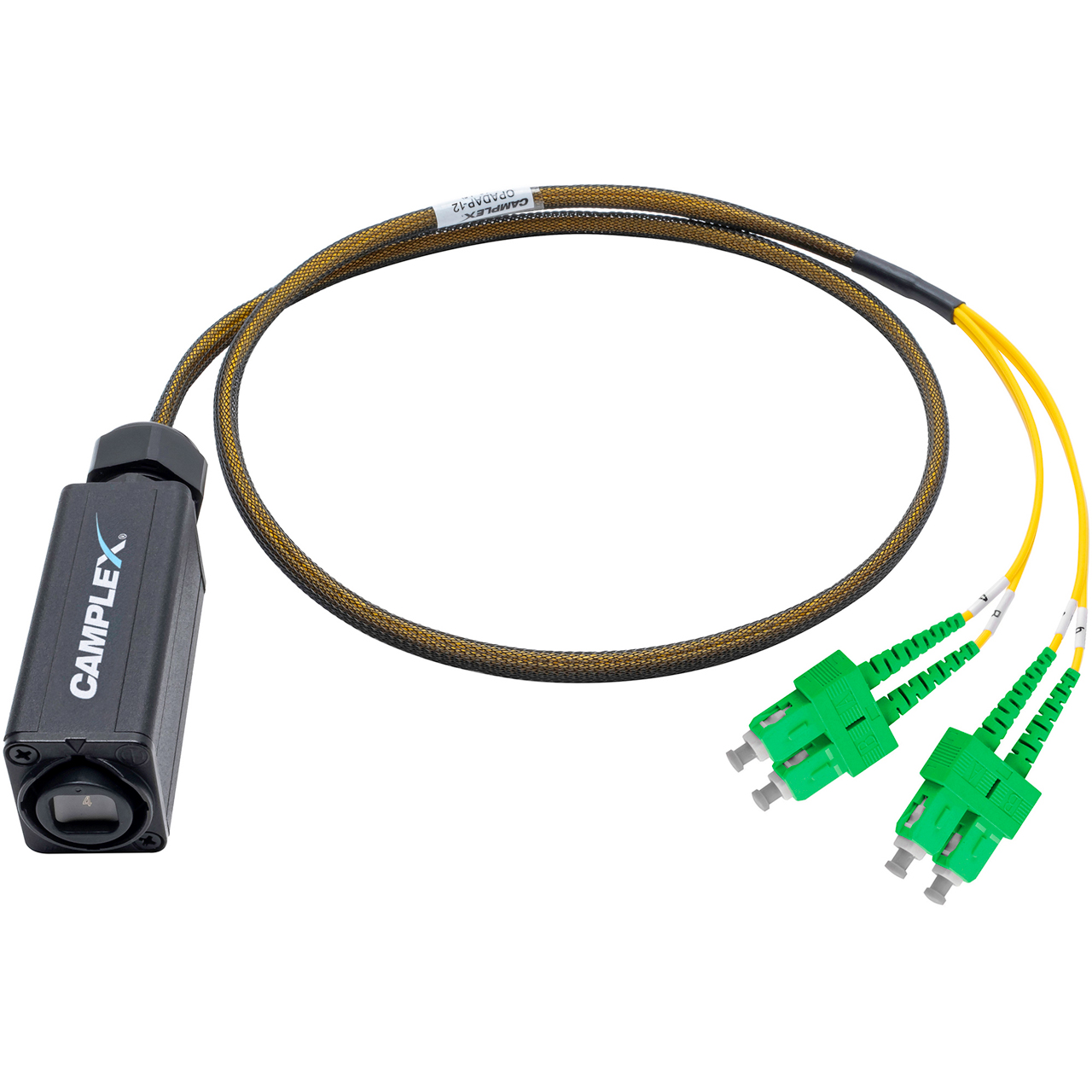

Connect your Neutrik opticalCON QUAD APC singlemode cables to APC SC fiber optic connectors with these handy in-line adapters by Camplex. Rugged yet lightweight design is perfect to strap to cameras and other gear. Each channel is clearly numbered and 1 meter in length with Techflex protective tubing for years of professional use. Supplied with opticalCON rubber dust cap for maximum protection.

opticalCON QUAD adapters feed out to four (4) individual fiber cable channels.

  • Features:

    • Single Mode Cable
    • Lightweight Design
    • Numbered Channels
    • (4) SC/APC Connectors
    • Rubber Dustcap for Connector Protection


  • Specifications:

    • Neutrik NO4FDW-A:
    • Insertion Force: < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime: > 5000 Mating Cycles
    • Locking Device: Push-Pull
    • Mounting Direction: Front Mounting
    • Chassis Shape: D
    • Insertion Loss: < 0.5 dB / Connection

      Camplex APC SC to APC LC Single Mode Duplex Fiber Optic Patch Cable - Yellow:
    • 9æm core and 125æm cladding
    • Insertion Loss: ≤0.30dB max (PC, UPC) / ≤0.20dB max (APC)
    • Return Loss: ≤45dB (PC) / ≤55dB (UPC) / ≤65dB (APC)
    • Tensile Strength: Long Term: 160N / Short Term: 300N
    • Pressive Strength: Long Term: 300N / Short Term: 1000N
    • Bend Radius (mm): Dynamic: 80mm / Static: 40mm
    • Attenuation: @1310nm: ≤0.3dB/km / @1550nm: ≤0.3dB/km
    • Temperature: -20°C ~ 80°C
