Camplex opticalCON DUO UPC to Two (2) SC/APC Breakout Adapter - Single Mode

ITEM #: OPADAP-18 MFG #: OPADAP-18

Primary Image
Camplex
Free Shipping with $49 Minimum Order

List Price:

$206.49

Our Price:

$194.95

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

OPADAP-18 - Overview

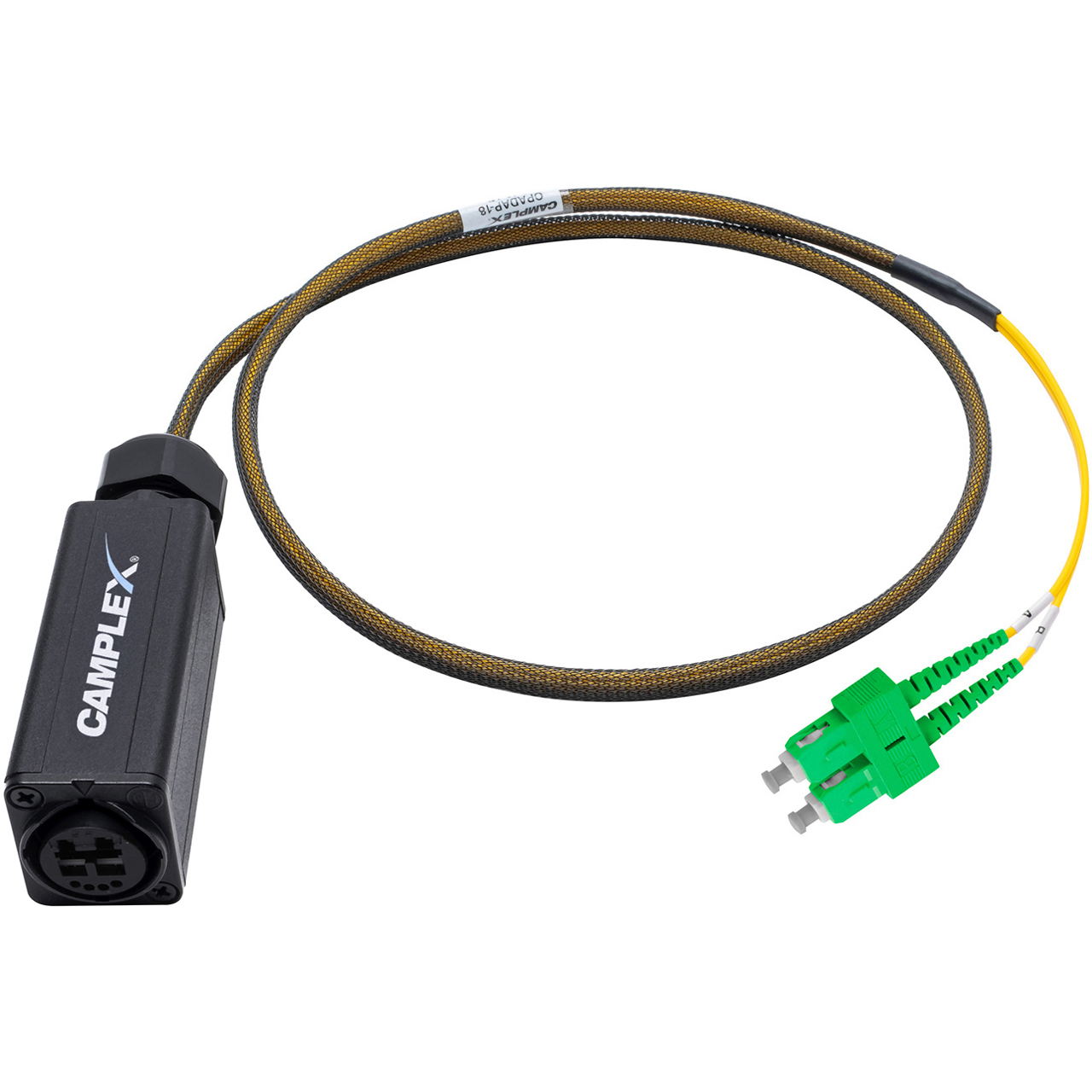

Connect your Neutrik opticalCON DUO UPC Single Mode cables to APC SC fiber optic connectors with these handy in-line adapters by Camplex. Rugged yet lightweight design is perfect to strap to cameras and other gear. Each channel is clearly numbered and 1 meter in length with Techflex protective tubing for years of professional use. Supplied with opticalCON rubber dust cap for maximum protection.

opticalCON DUO UPC adapters feed out to two (2) SC/APC individual fiber cable channels.

  • Features:

    • Single Mode Cable
    • Lightweight Design
    • Numbered Channels
    • (2) SC/APC Connectors
    • Rubber Dustcap for Connector Protection


  • Specifications:

    • Neutrik NO2-4FDW-A
    • Contact Resistance: < 7 mΩ
    • Dielectric Strength: 1,5 kVdc
    • Insulation Resistance: > 2 GΩ (initial)
    • Rated Current Per Contact: 6 A
    • Rated Voltage: <50 V (1)
    • Insertion Force: <45 N
    • Withdrawal Force: <45 N
    • Lifetime: > 5000 mating cycles
    • Chassis Shape: D
    • Contacts: Bronze (CuSn6)
    • Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: Black Chromium

      Camplex UPC SC to APC SC Single Mode Duplex Fiber Optic Patch Cable:
    • 9µm core and 125µm cladding
    • Insertion Loss: ≤0.3dB
    • Return Loss:
      -UPC: ≤50dB
      -APC: ≤60dB
    • Bend Radius:
      -Dynamic: 1.57in (40mm)
      -Static: 0.78in (20mm)
    • Temperature: -4°F to 176°F (-20°C to 80°C)
