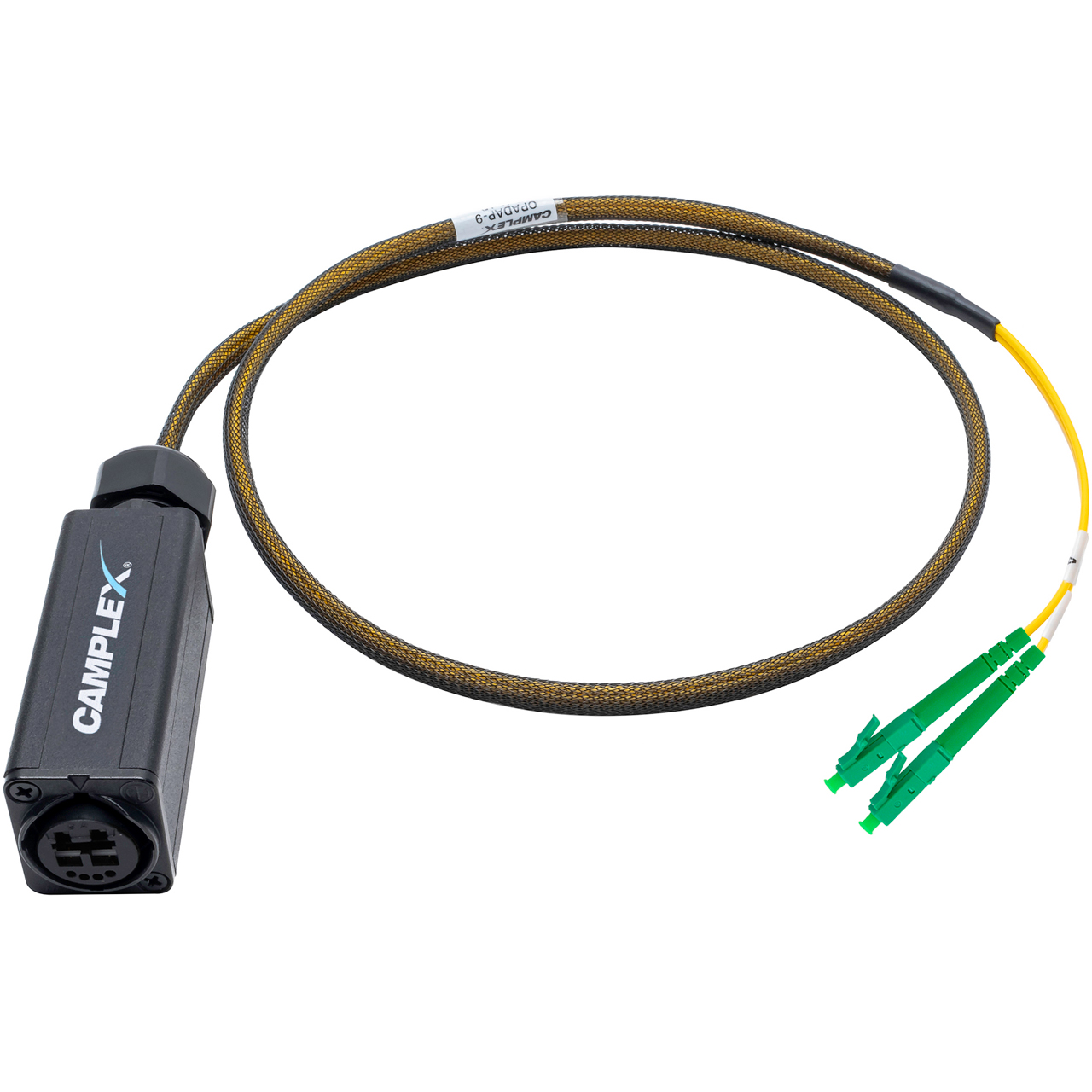

Camplex opticalCON DUO APC to Two (2) LC/APC Breakout Adapter - Single Mode

ITEM #: OPADAP-9 MFG #: OPADAP-9

Primary Image
Camplex
Free Shipping with $49 Minimum Order

List Price:

$212.49

Our Price:

$201.49

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

OPADAP-9 - Overview

Connect your Neutrik opticalCON DUO APC singlemode cables to APC LC fiber optic connectors with these handy in-line adapters by Camplex. Rugged yet lightweight design is perfect to strap to cameras and other gear. Each channel is clearly numbered and 1 meter in length with Techflex protective tubing for years of professional use. Supplied with opticalCON rubber dust cap for maximum protection.

opticalCON DUO adapters feed out to two (2) LC/APC individual fiber cable channels.

  • Features:

    • Single Mode Cable
    • Lightweight Design
    • Numbered Channels
    • (2) LC/APC Connectors
    • Rubber Dustcap for Connector Protection


  • Specifications:

    • Neutrik NO2-4FDW-A:
    • Contact Resistance: < 7 mΩ
    • Dielectric Strength: 1,5 kVdc
    • Insulation Resistance: > 2 GΩ (initial)
    • Rated Current Per Contact: 6 A
    • Rated Voltage: < 50 V (1)
    • Insertion Force < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime: > 5000 mating cycles
    • Chassis Shape: D
    • Contacts: Bronze (CuSn6)
    • Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: Black Chromium

      Camplex APC LC to APC LC Single Mode Duplex Fiber Optic Patch Cable:
    • 9æm core and 125æm cladding
    • Insertion Loss: ≤0.30dB max (PC, UPC) / ≤0.20dB max (APC)
    • Return Loss: ≤45dB (PC) / ≤55dB (UPC) / ≤65dB (APC)
    • Tensile Strength: Long Term: 160N / Short Term: 300N
    • Pressive Strength: Long Term: 300N / Short Term: 1000N
    • Bend Radius (mm): Dynamic: 80mm / Static: 40mm
    • Attenuation: @1310nm: ≤0.3dB/km / @1550nm: ≤0.3dB/km
    • Temperature: -20°C ~ 80°C
