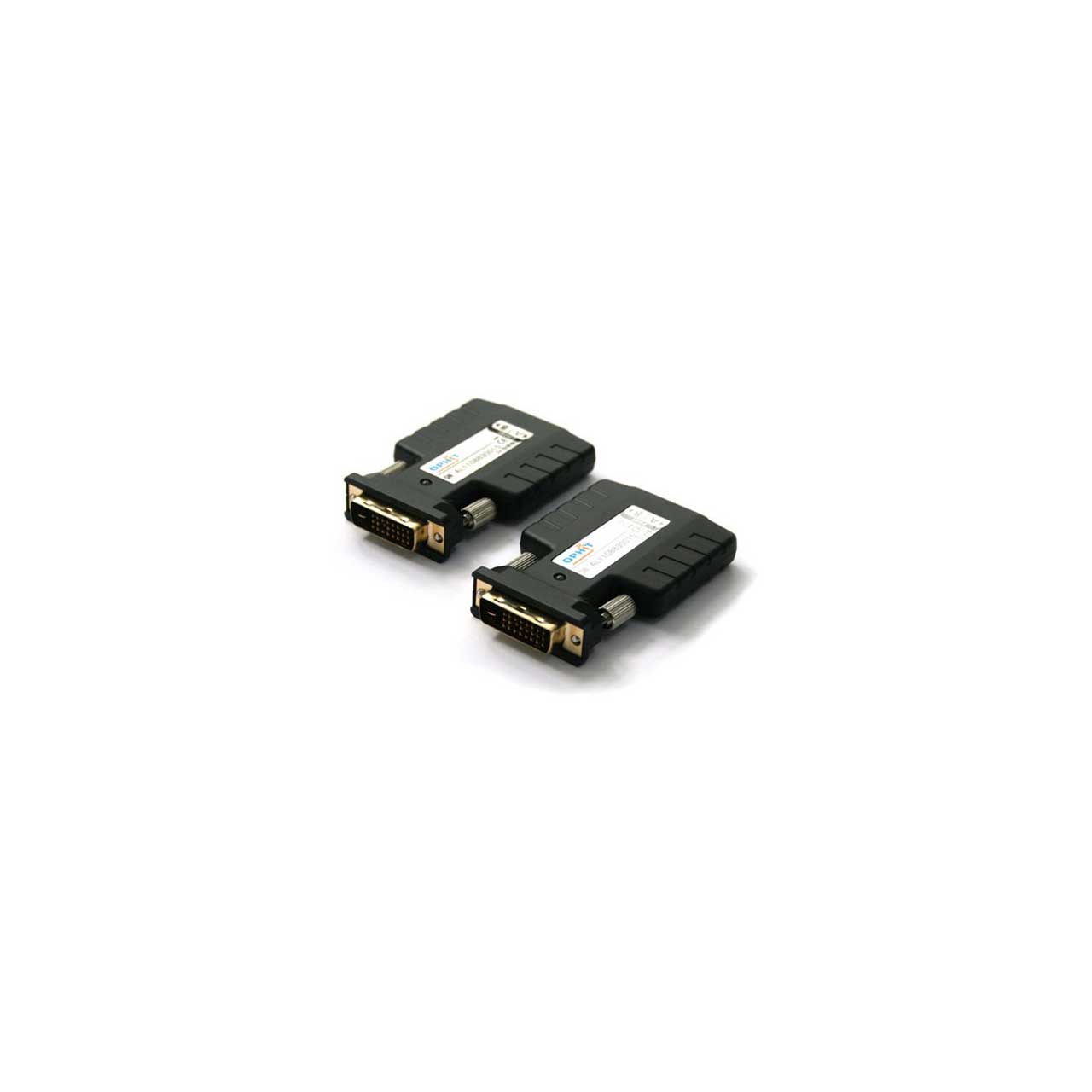

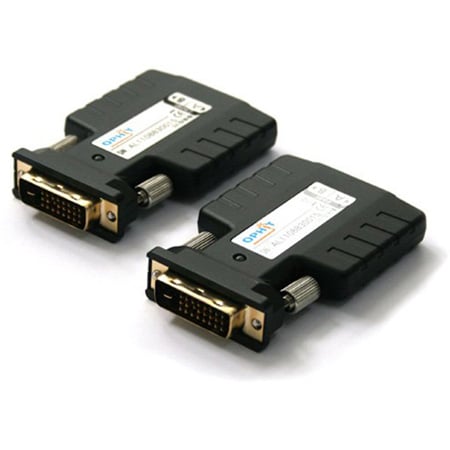

Ophit DQSP 2 Channel DVI Dual Link Fiber Optic Extender - 300 Meters (1000 Feet)

ITEM #: OPHI-DQSP MFG #: DQSP

Primary Image
Ophit
Free Shipping with $49 Minimum Order

Our Price:

$2,995.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

DQSP - Overview

Ophits's DQSP over two fiber solution lets you extend dual link digital signal up to 300meters (1000 feet). Maximum supporting resolution is up to WQXGA (2560x1600@60Hz).

  • Features:

    • High speed and long distance transmission by 2channel SC type multi-mode optical fiber
    • TMDS video signal and EDID data are transmitted over optical fiber
    • Extends up to 300meters
    • It can support single link and dual link both
    • DVI v1.0 Compliant
    • HDMI v1.3 and HDCP compliant
    • EMC & Safty: CE, FCC


  • Specifications:

    • Connector (transmitter): DVI-D (male), SC connector (female)
    • Connector (receiver): DVI-D (male), SC connector (female)
    • Optic Fiber: 2ch / Multi-mode(50/125um)
    • Video Bandwidth (pixel clock): Single link (max 225MHz) / Dual link
    • Supporting Resolution & Distance: WQXGA (2560x1600) @ 60Hz / 300M (1,000ft)
    • Power Consumption (transmitter): Dual link 1.6W (max)
    • Power Consumption (receiver): 1.65W (max)
    • Power Supply (transmitter): 100~240V DC 5V, 2A
    • Power Supply (receiver): 100~240V DC 5V, 2A
    • Dimensions: 75W x 50D x 15H (mm)
    • Operating Temperature Range: 0°C ~ 50°C
    • Storage Temperature Range: -20°C ~ 70°C


  • Item Includes:

    • Transmitter, Receiver
    • 2 Power Adapters
    • User's manual
