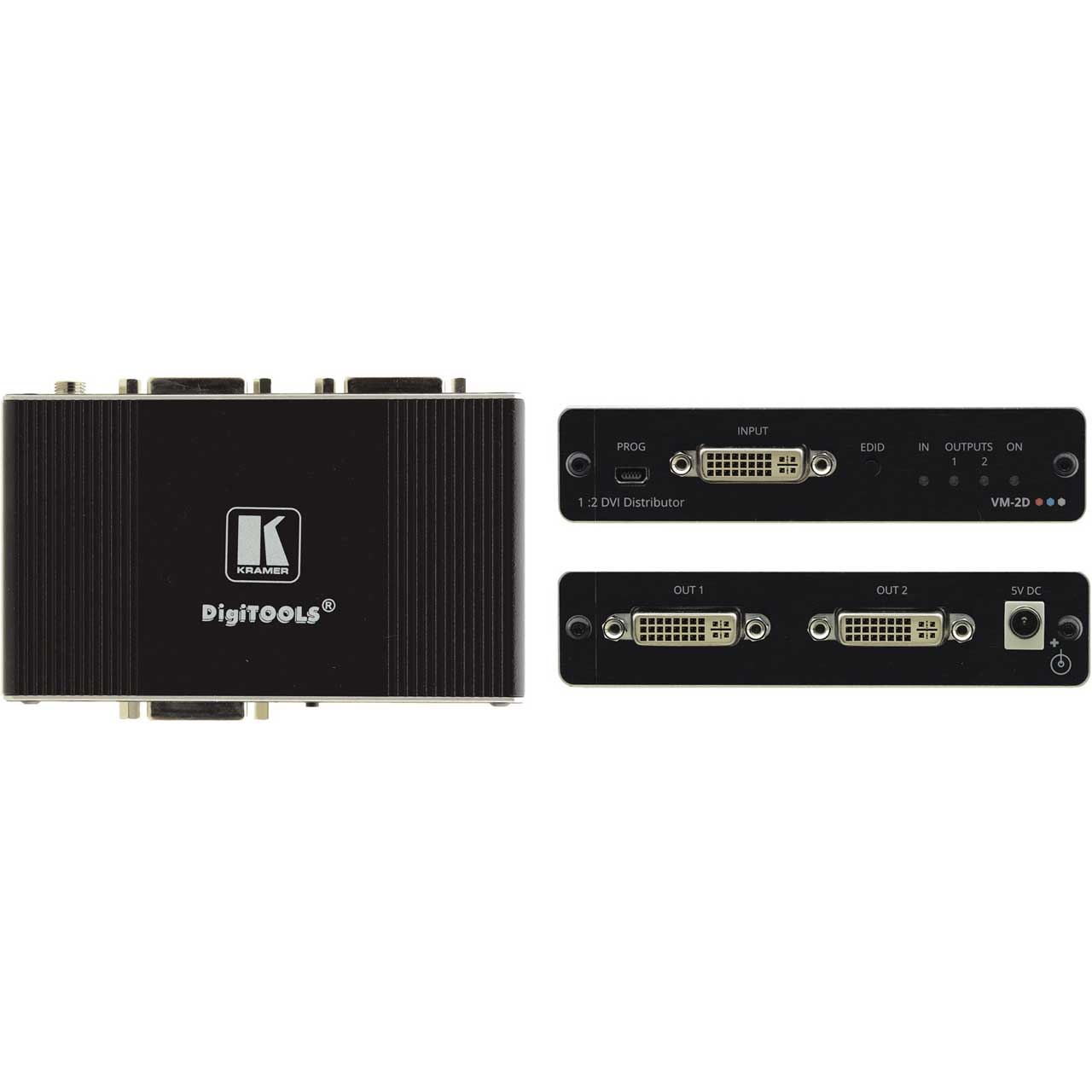

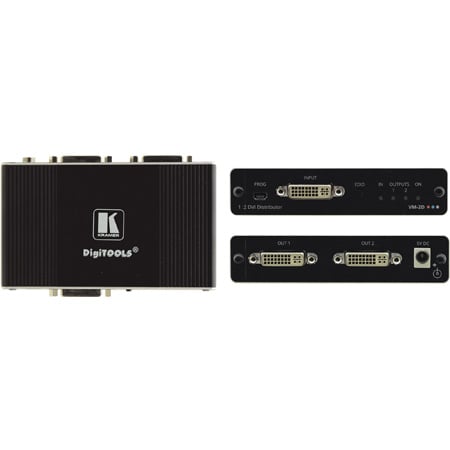

Kramer VM-2D 1:2 4K60 4:2:0 DVI Distribution Amplifier

VM-2D - Overview

1:2 DVI distributor

• Features:

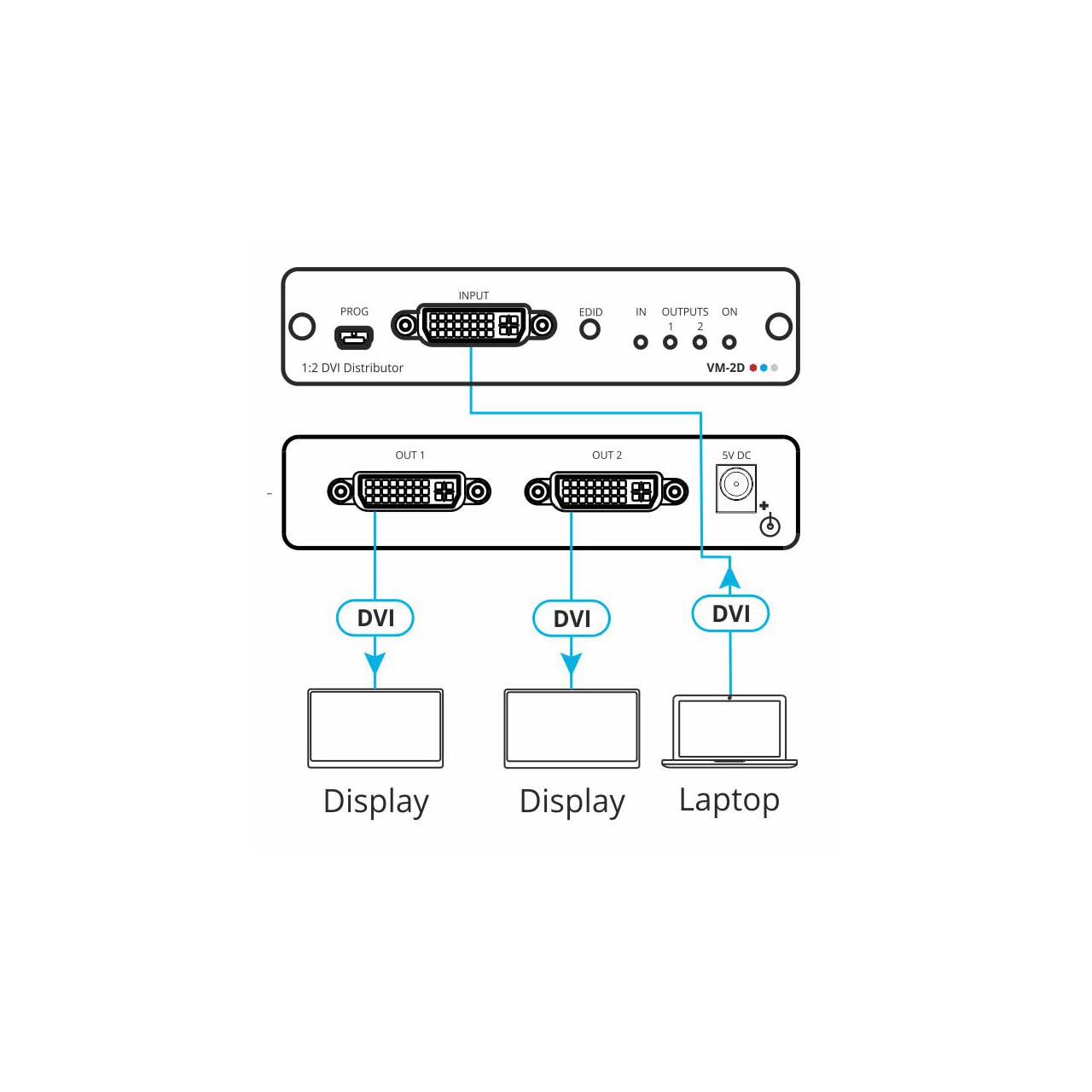

  • High Performance Distributor - Professional 1:2 DVI distributor for up to 4K@60Hz (4:2:0) video resolution signals. Via single-link DVI-I connections, one HDMI HDCP 1.4 input signal is amplified and distributed to two identical output signals, with signals rebuilt using Kramer Equalization & re-Klocking™Technology to gain longer distances.
  • Secured Operation - Highly-secured operation is ensured by lockable wiring connectivity with protection against unintentional cables connection. HDMI Signal Transmission - HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through from the source to the displays.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for DVI source and display systems.
  • User-Friendly Operation - Comprehensive signal distribution features and signal mode-forcing options such as RGB forcing, with convenient EDID selection front panel button.
  • Cost-Effective Field Maintenance - Mini-USB connection for simple field firmware upgrade. Status indicators for fast and effective troubleshooting.
  • Easy Installation - Compact TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the optional recommended rack adapter.


• Specifications:

  • INPUTS
  • 1 DVI: On a DVI-I female connector


  • OUTPUTS
  • 2 DVI: On DVI-I female connectors


  • VIDEO
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Max. Resolution: 4K@60Hz (4:2:0) 24bpp
  • Standards Compliance: DVI 1.0 and HDCP 1.4
  • HDMI Support: Deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


  • USER INTERFACE
  • Controls: EDID setup button, RS-232 port on mini-USB female connector for firmware upgrade
  • Indication LEDS: OUTPUTS 1 to 2, ACTIVE input and power ON LEDs


  • POWER
  • Source: 5V DC, 4A
  • Consumption: 5V DC, 800mA


  • ENCLOSURE
  • Size: Tools
  • Type: Aluminum
  • Cooling: Convection ventilation


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


• Item Includes:

  • VM-2D Distribution Amplifier
  • Power Adapter and cord (1)
  • Bracket Set (1)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063084752
