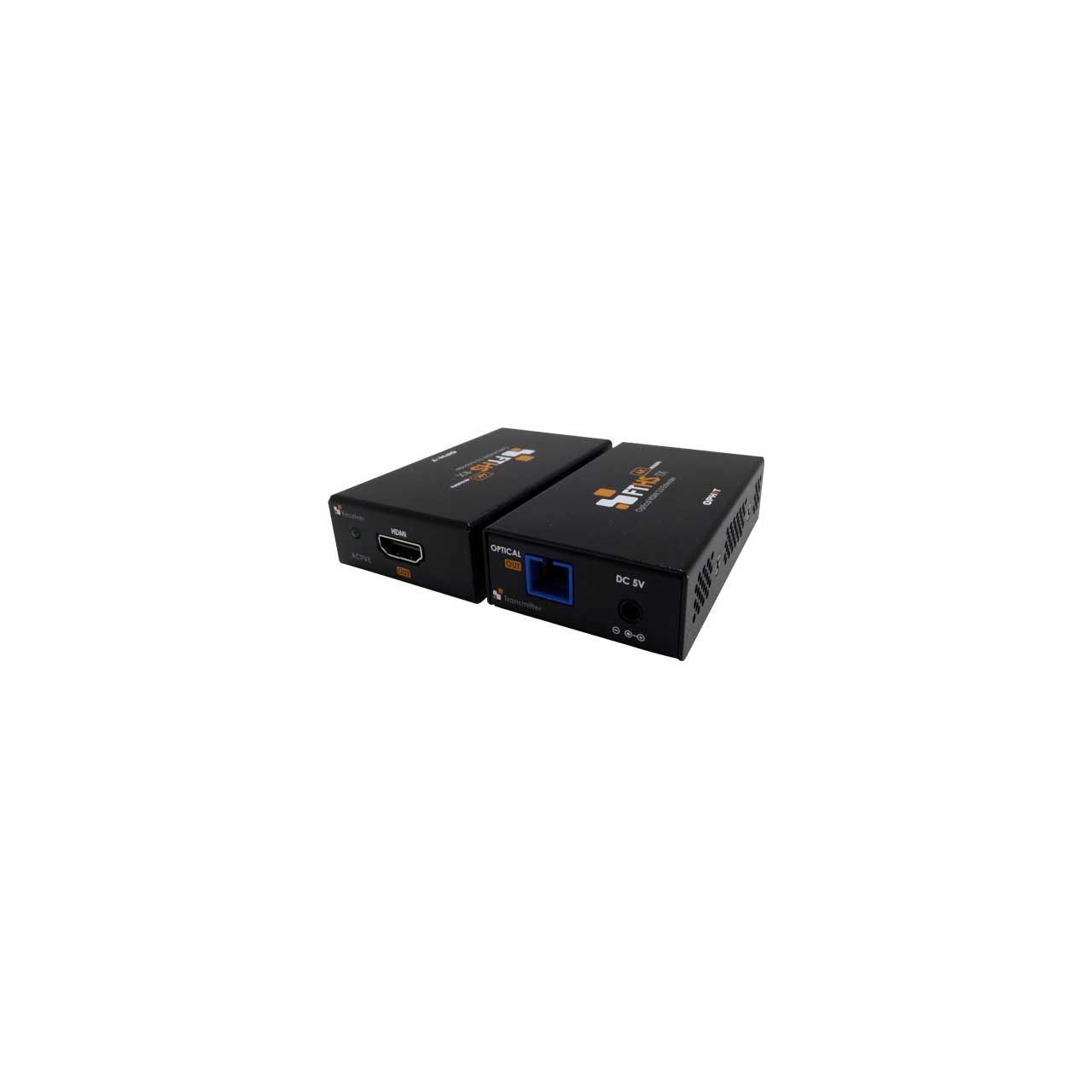

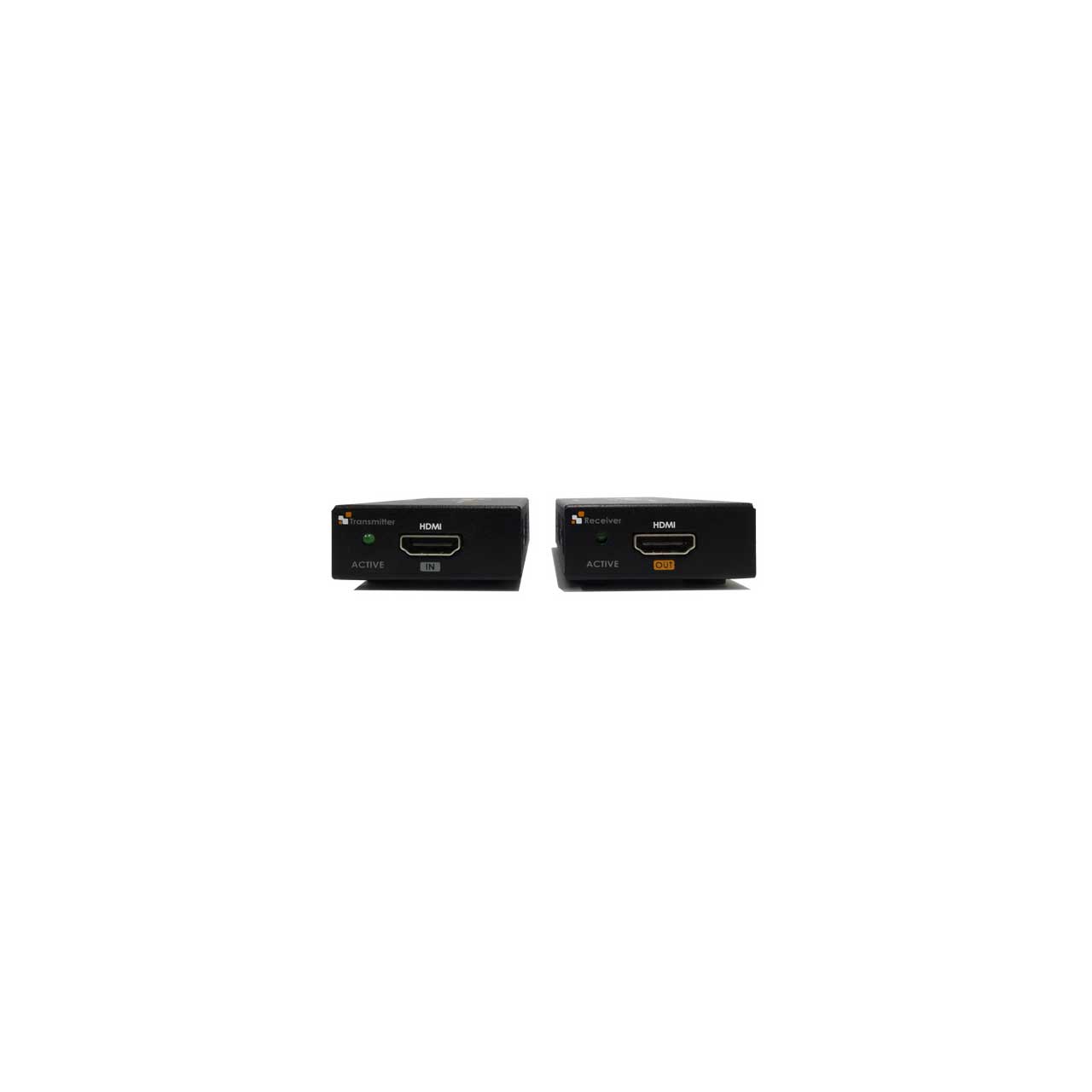

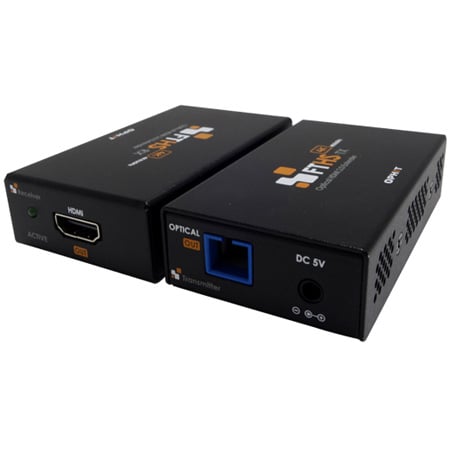

Ophit FTHS 1 Channel HDMI 2.0 Fiber Optic Extender - up to 200 Meters (656 Feet) - Transmitter / Receiver

FTHS - Overview

• Features:

  • High Speed and long distance transmission by optical system
  • Compatible with HDMI standard V2.0a
  • Supports 50-micron OM3 or OM4 Fiber with an SC Connector
  • Main-link video signal / DDC data and Hot Plug Detection signal is transmitted by- 1 channel multimode optical fiber
  • External power supply use(TX, RX)
  • SCDC(Status and Control Data Channel) compliant
  • HDCP 2.2 compliant
  • EMC & Safety : CE, FCC. Does not support CEC and HEAC.


• Specifications:

  • Input and Output Signal: HDMI 2.0 Standard
  • Video Bandwidth: 18Gbps
  • Dimension: 1.29 inch x 11.8 inch x 0.47 inch (81.2W x 21.1D x 47.5H mm)
  • Optical Connector: SC Connector
  • Electrical Connector: HDMI type A Connector (Female)
  • Applied Fiber: OM3 or OM4 Multi-mode glass-fiber.
  • Maximum Supporting Resolution: UHD(3840x2160 / 4096x2160@60Hz)
  • Transmission distance: 200 meter (656 ft)
  • External Power: 5V / 2A (1.35ø DC JACK)
  • Power Consumption (transmitter): 3.05W (Typ)
  • Power Consumption (receiver): 2.85W (Typ)
  • Operating Temperature Range: 0°C ~ 50°C
  • Storage Temperature Range: -20°C ~ 70°C


• Item Includes:

  • Transmitter, Receiver
  • Power Adapter 2ea
  • 1.0M HDMI cable 2ea
  • User's manual
