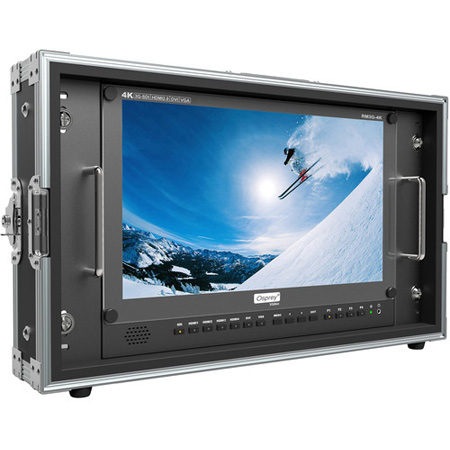

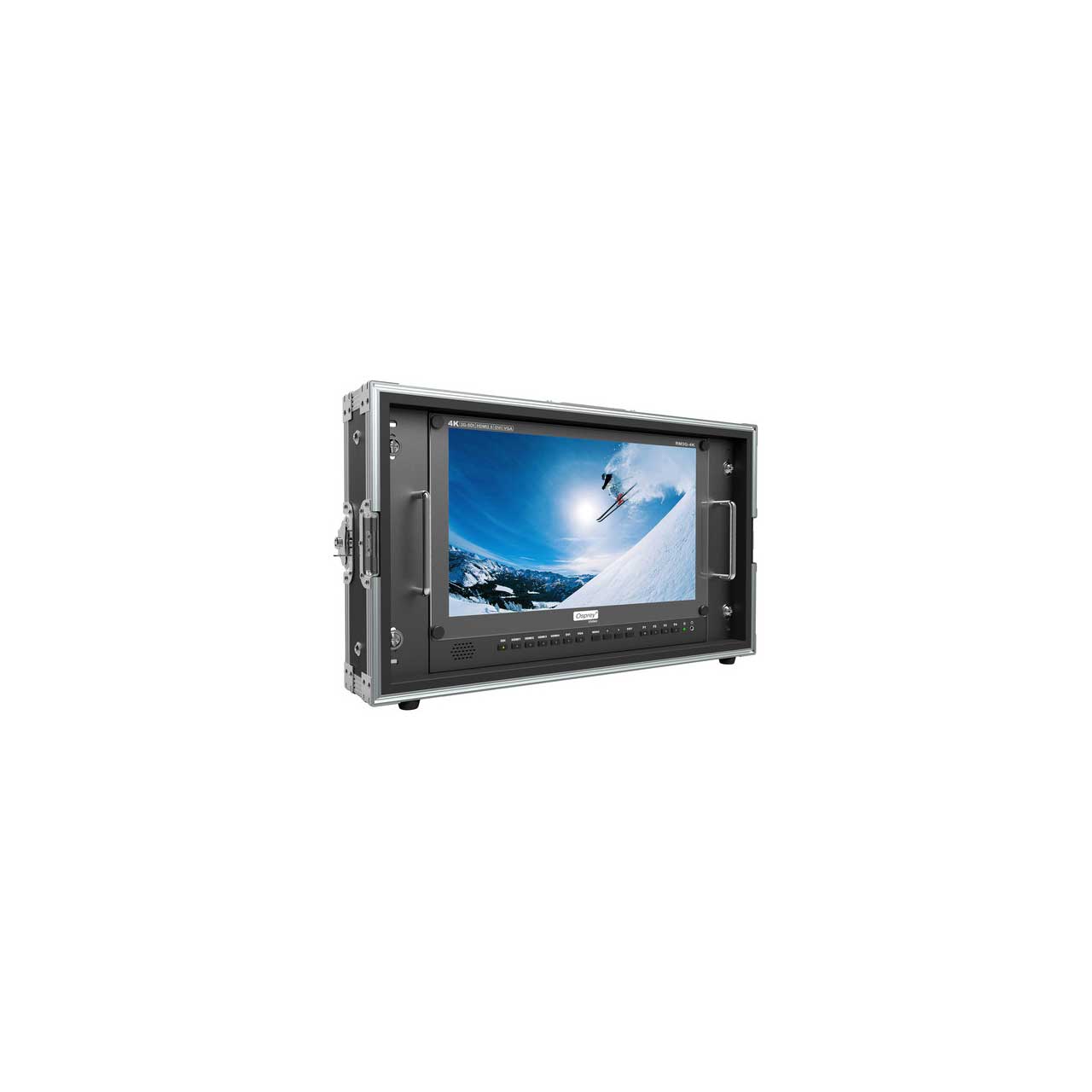

Osprey Video RM3G-4K 6RU 3G-SDI / HDMI2.0 4K 15.6 Inch IPS Rackmount Monitor with 3840x2160 Native Resolution

RM3G-4K - Overview

• Features:

  • 15.6" Display 4K 3840x2160 Resolution
  • 3G-SDI, 4x HDMI, DVI, VGA Inputs, Analog Audio
  • 1x HDMI2.0 up to 4K60, 3x HDMI1.4 up to 4K30
  • Quad View and PIP
  • Tally


• Specifications:

  • Display
  • 15.6" IPS
  • Resolution 3840x2160
  • Aspect Ratio 16:9
  • Contrast 1000:1
  • Viewing Angle 176

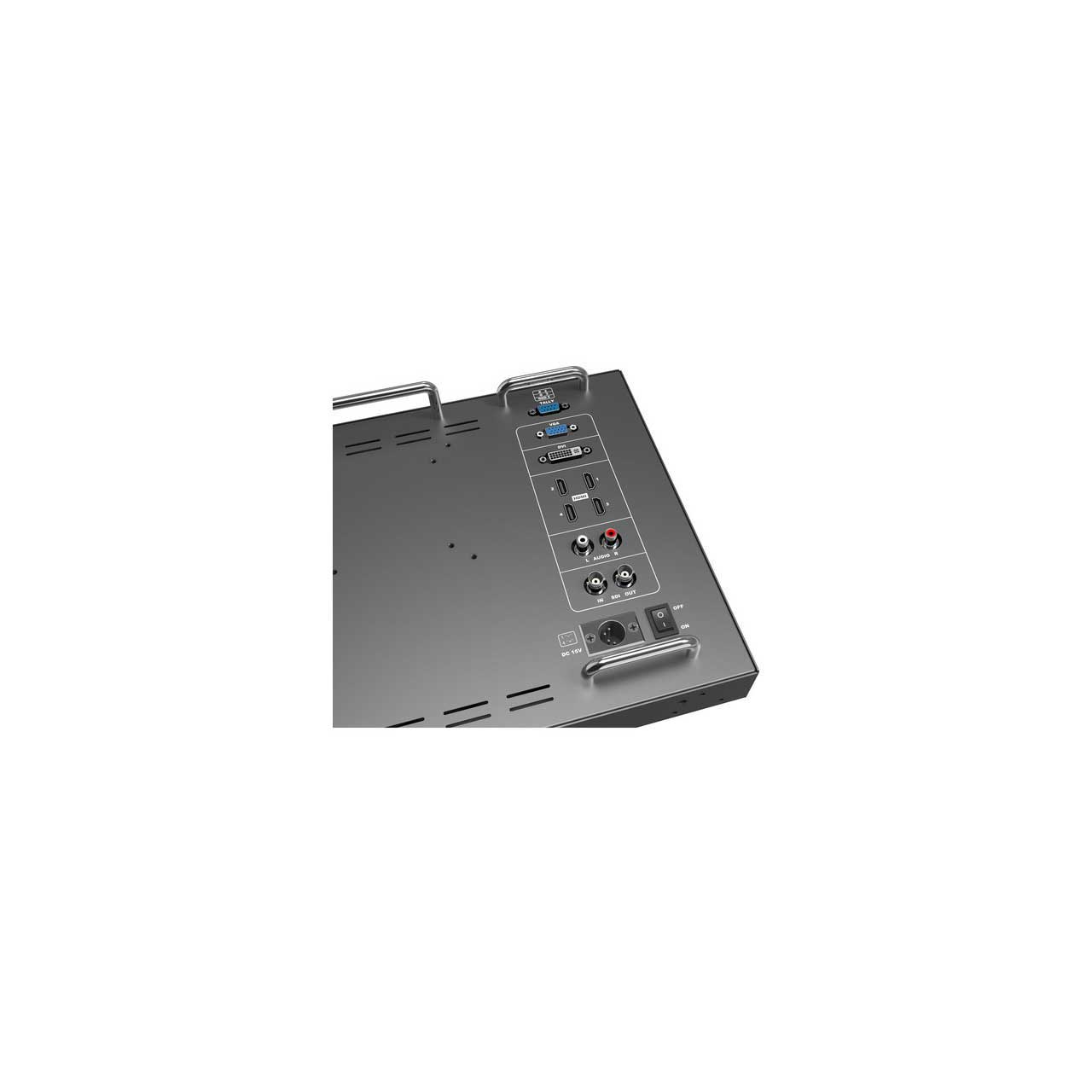

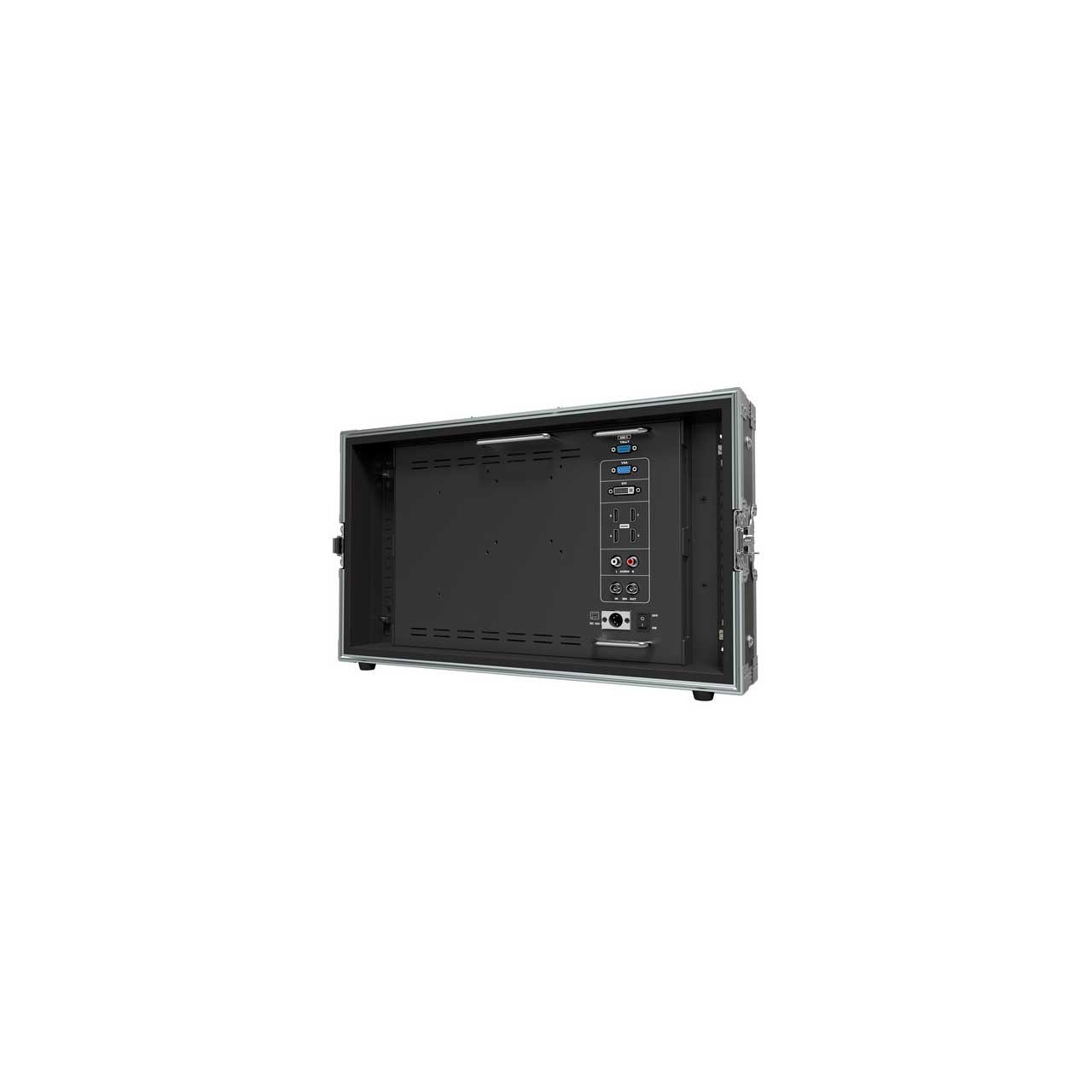

    Video Connections (all Full Size)
  • 1x 3G-SDI with Loopouts
  • 1x HDMI2.0
  • 3x HDMI1.4
  • 1x DVI
  • 1x VGA

    Audio Connections
  • 3.5mm Audio Headphone Jack to monitor first Stereo Pair of any Input
  • RCA connections for Unbalanced Stereo Audio Input

    SD Video Standards
  • 525i59.94 NTSC, 625i50 PAL

    HD Video Standards (Level A)
  • 720p50,59.94,60
  • 1080p23.98,24,25,29.97,30,50,59.94,60
  • 1080i50,59.94,60

    SMPTE SDI Compliance
  • 259M, 292M, 296M, 372M, 424M

    Multi View Options
  • Support for Dual/Quad View and PIP Mode. All Inputs can be used for various different Layout Options ranging from Side-by-Side Dual View, PIP up to Quad View.

    Front Panel Controls
  • Video Input Selection, Display Adjustments, Tally indicator lights, Center and Safety Markers, Aspect Ratio, System Settings, H/V Delay, Check Field, Underscan, Signal Loss Color Bars, Zoom, Image Flip, PIP, Multi View

    Power
  • 12-24VDC Power Input (XLR)
  • Power Requirement <15W

    Dimensions
  • 6U 482.5 x 267.0 x 38.0mm
  • Weight 3.4kg / 12kg with Case

    Environment
  • Operating Temperature 0C to 40C
  • Non-Operating Temperature -20C to 60C


• Item Includes:

  • 1x Monitor
  • 1x Carry-on Suitcase
  • 1x Folding Sun Shade
  • 1x Power Supply
  • 1x Battery Plate Bracket
  • 1x V-Mount
  • 1x Base Bracket
  • 1x TALLY Connector


• Warranty:

  • 1 year


• GTIN:

  0850189006924
