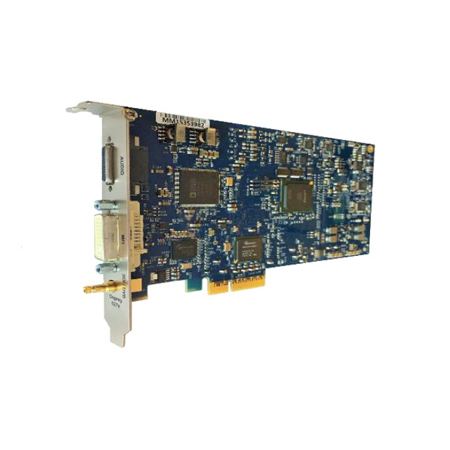

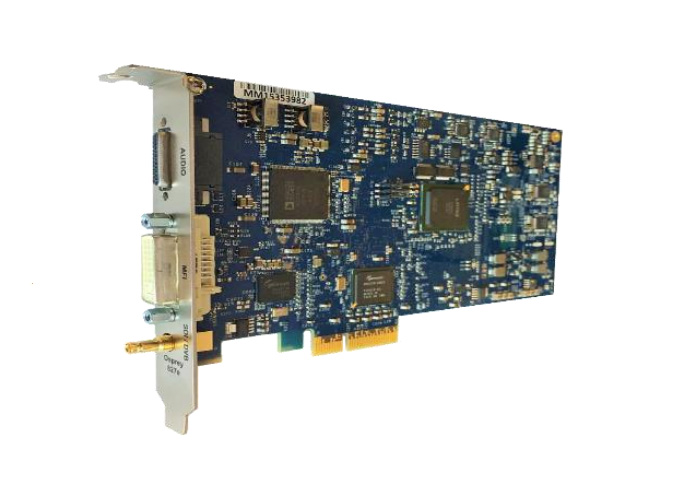

Osprey 827e Dual Input Video Capture Card with Simulstream

827E - Overview

• Features:

  • Two Channels
  • Channel 1: 3G/HD/SD SDI or DVB-ASI
  • Channel 2: DVI/ HDMI/ VGA/ Component/ Composite and SVideo


  • Ten Input Formats
  • 3G SDI (424M)
  • HD SDI (292M)
  • SD SDI (259M)
  • DVB-ASI MPTS/SPTS (Windows only)
  • DVI
  • HDMI
  • Composite/CVBS
  • Component
  • S-Video
  • VGA/XVGA


  • Audio
  • AES/EBU (mini XLR)
  • SPDIF (mini XLR)
  • HDMI (4 channels LCPM)
  • Balanced (mini XLR)
  • Unbalanced (RCA)
  • Embedded SDI (Four stereo pair)


  • Video Pre-Processing
  • VBI/VANC closed-caption extraction/on-screen rendering
  • Logo/bitmap overlay
  • Scaling, cropping, de-interlacing and inverse telecine
  • ProcAmp control
  • Vector Scope and Lumi Scope


  • Driver Support
  • Microsoft DirectShow API
  • Linux V4L2


  • Signal Loss: In the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text overlay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.


• Specifications:

  • Format:
  • PCI Express (x 4): Slots: x 4, x 8, or x 16
  • PCIe 1.1


  • Video Input:
  • SDI: 3G SMPTE 424M, HD SMPTE 292M, SD SMPTE 259M, DVB-ASI MPTS & SPTS
  • HDMI (non HDCP)
  • DVI
  • VGA
  • Composite, component (YPbPr)
  • YCA


  • Video Connector:
  • SDI (DIN 1.0/2.3 x 1)
  • DVI x 1


  • Video Modes:
  • 1080p 23.98, 24, 25, 29.97, 30, 60
  • 1080i 50, 59.94, 60
  • 720p 23.98, 24, 25, 29.97, 50, 59.94, 60
  • 480i 29.97, 30 (NTSC)
  • 576i 25 (PAL)
  • 576p 25, 50


  • Analog Modes:
  • 1920 x 1080/23.98, 24, 25, 50, 59.94, 60
  • 1600 x 1200/60
  • 1400 x 1050/60, 75
  • 1360 x 768/60
  • 1280 x 1024/60, 85
  • 1280 x 960/60, 85
  • 1280 x 800/60
  • 1280 x 768/75, 85
  • 1280 x 720/50, 60
  • 1024 x 768/60, 85
  • 800 x 600/85
  • 640 x 480/60, 85


  • Audio Input:
  • Balanced analog audio (2 stereo pair, 4 x mini XLR) Always available. Two additional pairs from list below
  • AES digital audio (2 stereo pair, 2 x mini XLR)
  • SPDIF digital audio (2 stereo pair, 2 x RCA)
  • Unbalanced analog audio (2 stereo pair, 4 x RCA)


  • Available Drivers:
  • Microsoft Windows
  • Linux


  • Dimensions:
  • 6.60" L x 4.38" H (16.76cm L x 11.13cm H)
  • Full height/half length


  • Environmental:
  • Operating Temp Range:
  • 0° to 40° C
  • Non-Operating Temp Range:
  • -40° to +75° C
  • Rel Humidity Operating: Between 5 % and 80 % (noncondensing)
  • Rel Humidity Non-Operating:95 % RH (non-condensing); gradient 30% per hour
  • Operating Altitude Range: 0 to 3,048 meters (10,000 feet)
  • Non-Operating Altitude Range: 0 to 15,240 meters (50,000 feet)


  • System recommendations:
  • High quality video capture requires a PCIe bus with direct access to
  • the CPU


• Item Includes:

  • 827E capture card
  • DVI to VGA
  • DVI to HDMI
  • DVI to Component (BNC x 3)
  • Audio dongle


• Warranty:

  • 1 Year


• GTIN:

  0850189006238
