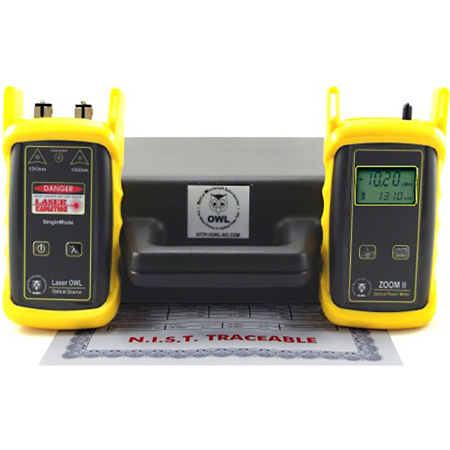

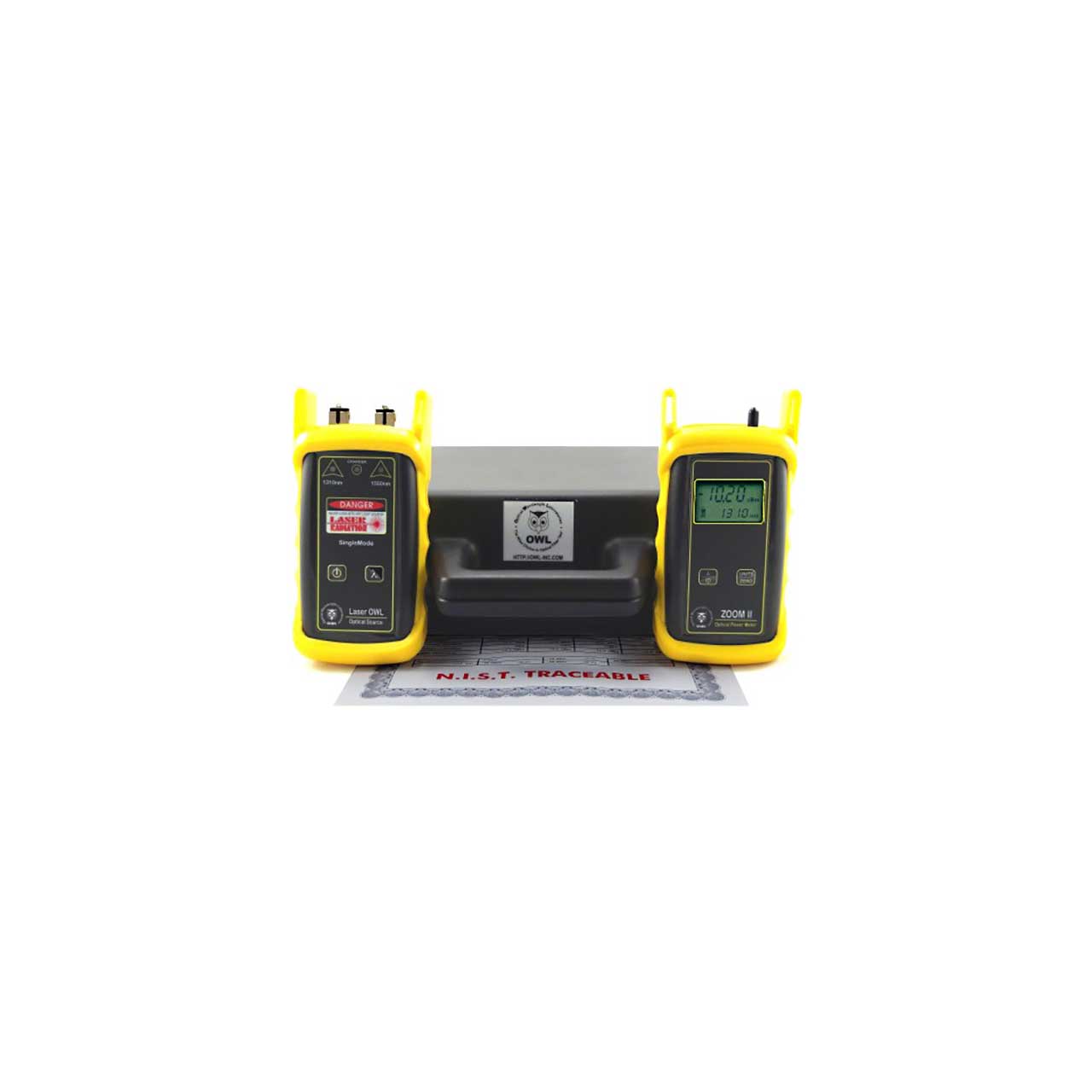

Optical Wavelength KIT-Z2-L2SC ZOOM 2/Laser OWL SC Singlemode Fiber Test Kit

KIT-Z2-L2SC - Overview

• Features:

  • Economical option for quick attenuation and loss testing singlemode networks
  • Easy-to-read 4-digit 7-segment LCD display
  • Store reference values for calibrated wavelengths
  • Intuitive 2-button interface on both units
  • On-screen wavelength, measurement units, and low battery indicator
  • NIST traceable


• Specifications:

  • ZOOM II Optical Power Meter
  • Detector: InGaAs 1mm
  • Calibrated Wavelengths: 850nm, 1300, 1310nm, 1550nm
  • Measurement Range: +5 to -60 dBm (standard)
  • Accuracy1: ±0.15 dB
  • Linearity1: ±0.20 dB
  • Resolution: 0.01 dBm
  • Battery Life: up to 250 hours
  • Operating Temperature: 0 to 55°C
  • NIST Traceable: Yes
  • Battery Capacity Display: Yes
  • Connector: 2.5mm Universal
  • Width: 2.75"
  • Height: 4.94"
  • Depth: 1.28"
  • Weight: 154g
  • Conforms to the Harmonized European Standards EN 61326-1 and EN 61010-1.

    Laser OWL Singlemode Light Source
  • Launch Method: FP Laser
  • Connector: SC
  • Center Wavelength (1310nm): 1310 ±30nm
  • Center Wavelength (1550nm): 1550 ±30nm
  • Spectral Width (FWHM; 1310 / 1550 nm): 2 nm
  • Output Power: -10.0 dBm
  • Initial Accuracy: 0.1 dB
  • Fiber Type: Singlemode
  • Battery Life: 25 hours
  • Battery Capacity Display: Yes
  • Operating Temperature: 0 to 55° C
  • Storage Temperature: 0 to 75° C
  • Width: 2.75"
  • Height: 4.94"
  • Depth: 1.28"
  • Weight: 154g


• Item Includes:

  • Power Meter: ZOOM II
  • Light Source: Laser OWL
  • Accessories: Product manuals
  • 9-volt batteries
  • NIST certificate
  • Carrying case
  • Protective rubber boots
