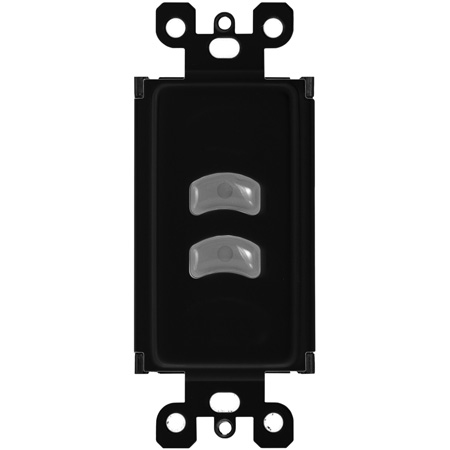

Pathway Connectivity PWWSI VPOE B2 BL Wall Station Insert Vignette Power over Ethernet Master 2-Buttons - Black

PWWSI VPOE B2 BL - Overview

• Features:

  • Attractive Decorator-style design in white or black, compatible with Pathway Connectivity or third-party faceplates

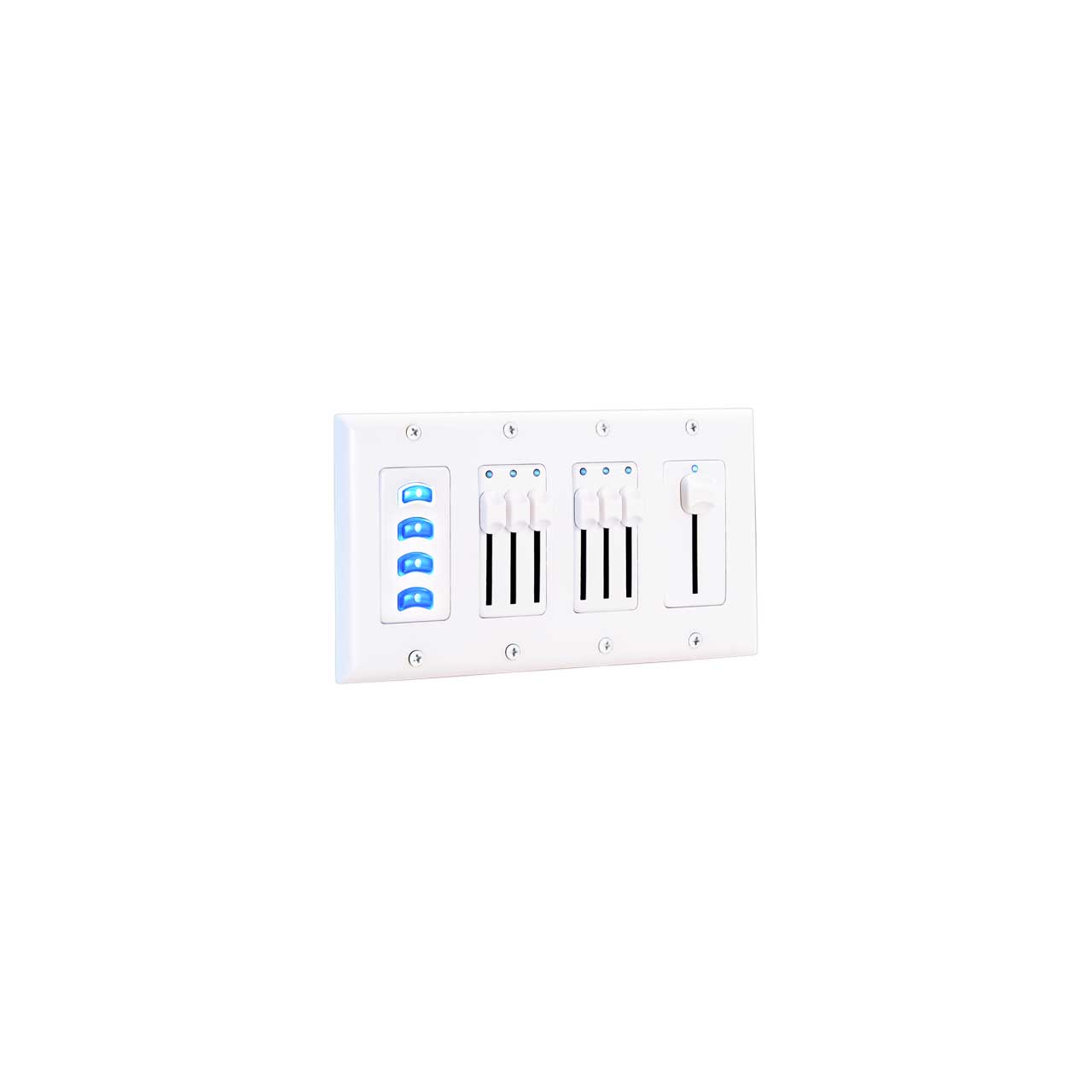

  • Master/local inserts available as single or double sliders, or as two or four buttons
  • PoE variant works with the VIA PoE switches and Pathport gateways
  • RS485 variant requires DIN-rail mounted Vignette Architectural Gateway that includes an ethernet port for configuration, sACN send/receive as well as DMX in/out. Each Gateway can support up to 64 modules across four separate daisy-chain buses
  • Group stations to mirror each other or work independently
  • Works as a snapshot record and playback out of the box. Advanced configuration using Pathscape on Mac OS or Windows PC
  • Buttons have multiple functions including snapshot replay, non-dim zones, record enable and take control
  • Sliders can act as zone control or grand master


• Specifications:

  • General
  • Class 2 (PoE or 24V DC RS485 over Cat5 or 3-pair cable)
  • 7.5 watts maximum power consumption per station
  • Operating conditions: 14°F-122°F (-10°C to 50°C ), 5-95% relative humidity, non-condensing

    Cabling
  • PoE: Standard Cat5/5e/6 Ethernet, 330 ft (100 m) max
  • RS485: Cat5/5e/6 cable, 500 ft (150 m) max; Belden 9773 or equivalent, 1000 ft (300 m) max


• Item Includes:

  • 1x Pathway P700-5411BL Vignette PoE with Two Button Master Insert - Black
