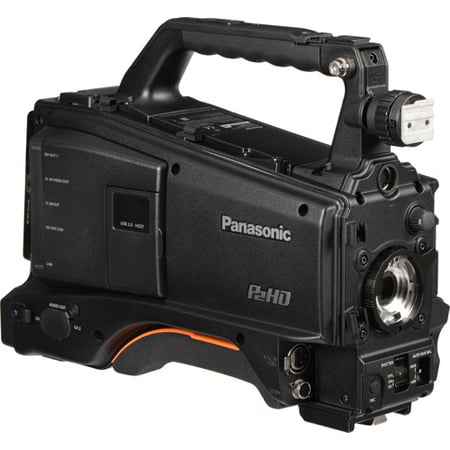

Panasonic AJ-PX380G Shoulder-Mount HD AVC-Ultra Camcorder - Body Only

AJ-PX380G - Overview

• Features:

  • Compact, Lightweight, 1/3 Shoulder-Type
  • 1/3-Type Bayonet Mount Interchangeable Lenses
  • High Sensitivity, Low Noise, 1/3-Type 3MOS Sensors
  • 600% Dynamic Range
  • Built-in Electronic Level Gauge
  • High-Quality Image Processing and Versatile Image Settings
  • Advanced Focus Assist Functions
  • Professional Shooting Functions
  • Color HD Viewfinder/Monitor
  • User Interface "SmartUI"
  • Versatile Shooting Assist Functions
  • AVC-ULTRA Supported as Standard
  • Full Frame Progressive Recording
  • HD/SD Multi Format/Multi Codec
  • High-Quality 24 Bit Four Channel Audio Recording
  • Standard-Equipped microP2/P2 Card Slots
  • Multifunctional Recording Including Simultaneous Recording
  • Network Functions to Expedite News Gathering and Image Acquisition Workflows
  • Wired/Wireless LAN, 4G/LTE Network Functions
  • RTSP/RTMP/RTMPS-Compatible HD Streaming
  • Transferring Recorded Clips Automatically: Rec During Uploading Function
  • Linking with LiveU or TVU bonding services offers faster and more stable live streaming and FTP transfers.
  • Direct Connection to The LiveU or TVU Video Uplink Solution
  • Built-in Camera Adaptor for Camera Studio Systems
  • Camera Remote System Compatibility
  • 3G-SDI Output and HD SDI Input
  • The P2 ROP App for Wireless Control using iPad


• Specifications:

  • General
  • Power: DC 12 V (11.0 V to 17.0 V)
  • Power Consumption: 19 W (body only, 1080/60i, AVC-Intra 100 standard recording status, LCD ON) 58W (with all optional accessories connected and maximum power supplied from each output terminal)
  • Operating Temperature: 32 °F to 104 °F
  • Operating Humidity: 10 % to 85 % (relative humidity)
  • Storage Temperature: -4 °F to 140 °F
  • Weight: Approx. 6.0 lbs (body only, excluding the battery and accessories)
  • Dimensions: 5-21/32 inches x 10-1/2 inches x 13-11/16 inches (Body only, excluding protrusion)

    Camera Unit
  • Pickup Device: 1/3 type 2.2 million pixels, MOS x3
  • Lens Mount: 1/3 type bayonet
  • ND Filter: 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
  • Super Gain (S.GAIN): Selectable from 24 dB, 30 dB, 36 dB
  • Shutter Open Angle: 3.0 deg to 360.0 deg (in 0.5 deg steps, angle display)
  • Horizontal Resolution: 1000 TV or higher (center)

    Memory Card Recorder
  • Recording Media: P2 card x1, microP2 card x2
  • System Format: 1080/59.94p, 1080/59.94i, 1080/23.98psF, 720/59.94p, 480/59.94i, 1080/50p, 1080/50i, 720/50p, 576/50i

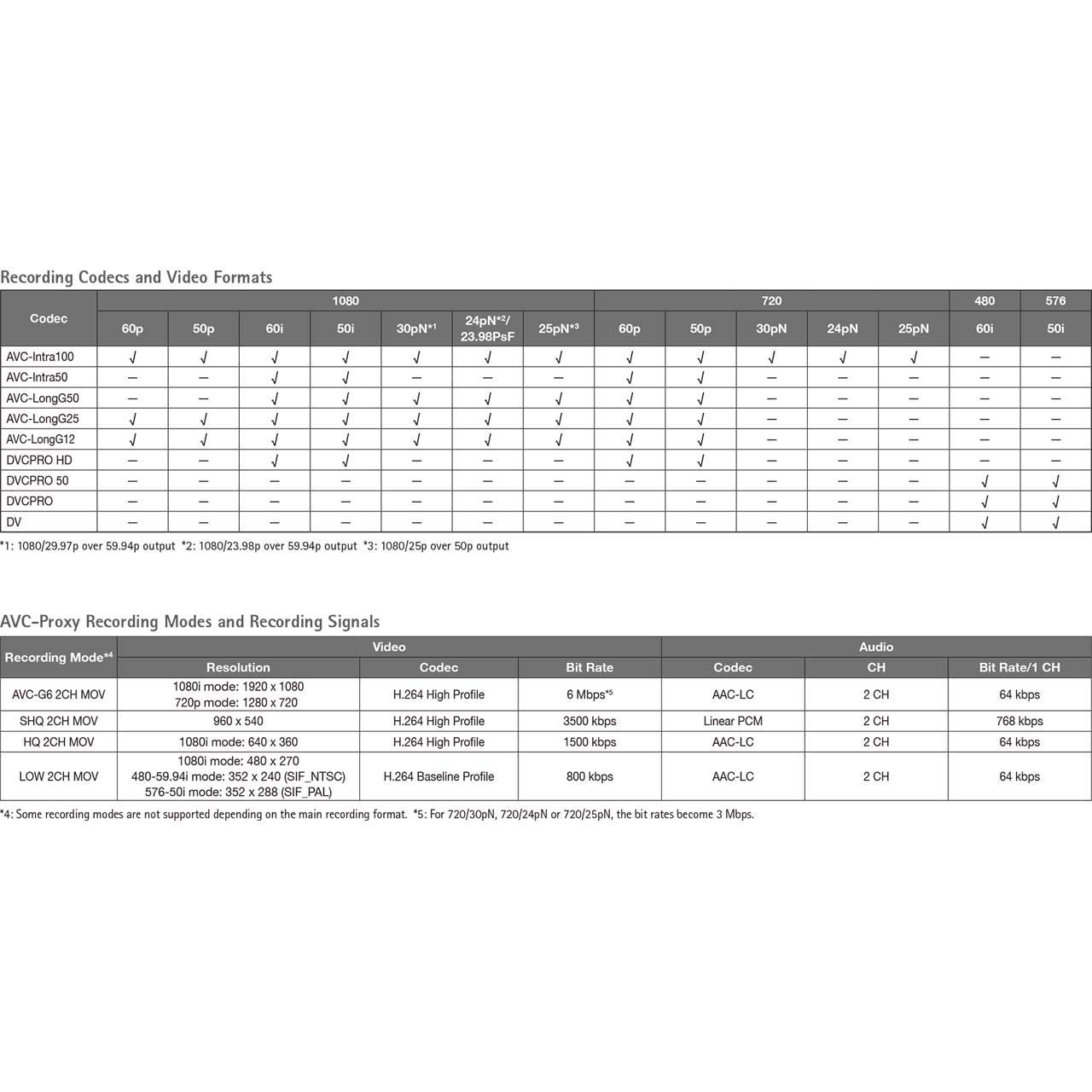

  • Recording Format: AVC-Intra100/AVC-Intra50/AVC-LongG50/AVC-LongG25/AVC-LongG12/ DVCPRO HD/DVCPRO50/DVCPRO/DV formats switchable
  • Recording Video Signal: 1080/59.94p, 1080/59.94i, 1080/29.97pN, 1080/23.98pN, 720/59.94p, 720/29.97pN, 720/23.98pN, 480/59.94i, 480/29.97p, 1080/50p, 1080/50i, 1080/25pN, 720/50p, 720/25pN, 576/50i, 576/25p

    Video Input/Output
  • SDI OUT1: BNC x1
  • HD-SDi (3G/1.5G), SD-SDI: 0.8 V [p-p], 75 Ω
  • SDI OUT2/IN: BNC x1, SDI OUT2, SDI IN (menu selection) (Can be switched to HD-SDI/SD-SDI on SmartUI.)
  • HD-SDI (1.5G), SD SDI: 0.8 V [p-p], 75 Ω
  • GL In/Video Out: BNC x1, GENLOCK IN, VIDEO OUT (menu selection), GENLOCK IN: 1.0 V [p-p], 75 Ω, VIDEO OUT: Composite, 1.0 V [p-p], 75 Ω
  • HDMI OUT: HDMI x1 (HDMI type A terminal, not compatible with VIERA Link)

    Audio Input/Output
  • AUDIO IN CH1/3, AUDIO IN CH2/4: XLR (3 pin) x 2, LINE/MIC (switch selection), LINE: 0 dBu, MIC: -50 dBu/-60 dBu (menu selection), +48 V ON/OFF (switch selection)
  • MIC IN: XLR (3 pin) x1, +48 V supported (selectable menu), -40 dBu/-50 dBu/-60 dBu (selectable menu)
  • Wireless IN: 25 pin, D-SUB, -40 dBu, 2 CH supported
  • AUDIO OUT: Pin jack x 2 (CH1, CH2), Output level: 600 Ω, 316 mV
  • Phones: 3.5 mm diameter stereo mini jack x1
  • Speaker: 20 mm diameter, round x1

    Other Input/Output
  • TC IN/OUT: BNC x1, IN/OUT (menu selection)
  • IN: 0.5 V [p-p] to 8 V [p-p], 10 kΩ
  • OUT: 2.0 ±0.5 V [p-p], Low impedance
  • LAN: 100BASE-TX/10BASE-T
  • USB 2.0 (device): Type B connector, 4 pin
  • USB 2.0 (host): Type A connector, 4 pin
  • USB2.0 (sub host): Type A connector, 4 pin (exclusively for wireless module AJ-WM30)
  • DC IN: XLR x1, 4 pin, DC 12 V (DC 11.0 V to 17.0 V)
  • DC OUT: 4 pin, DC 12 V (DC 11.0 V to 17.0 V), maximum output current 1.5 A
  • REMOTE: 10 pin
  • LENS: 12 pin
  • EVF: 20 pin


• Item Includes:

  • 1x AJ-PX380G Camcorder
  • 1x Shoulder Strap
  • 1x Mount Cap


• GTIN:

  0885170251861
