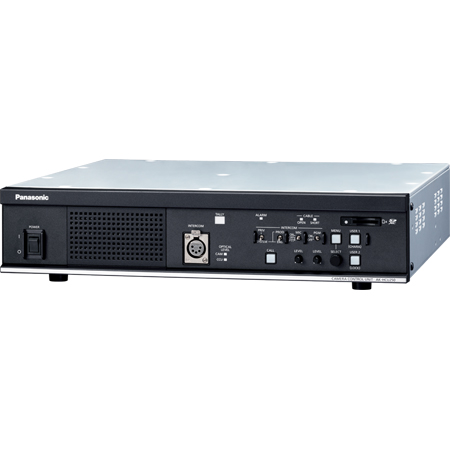

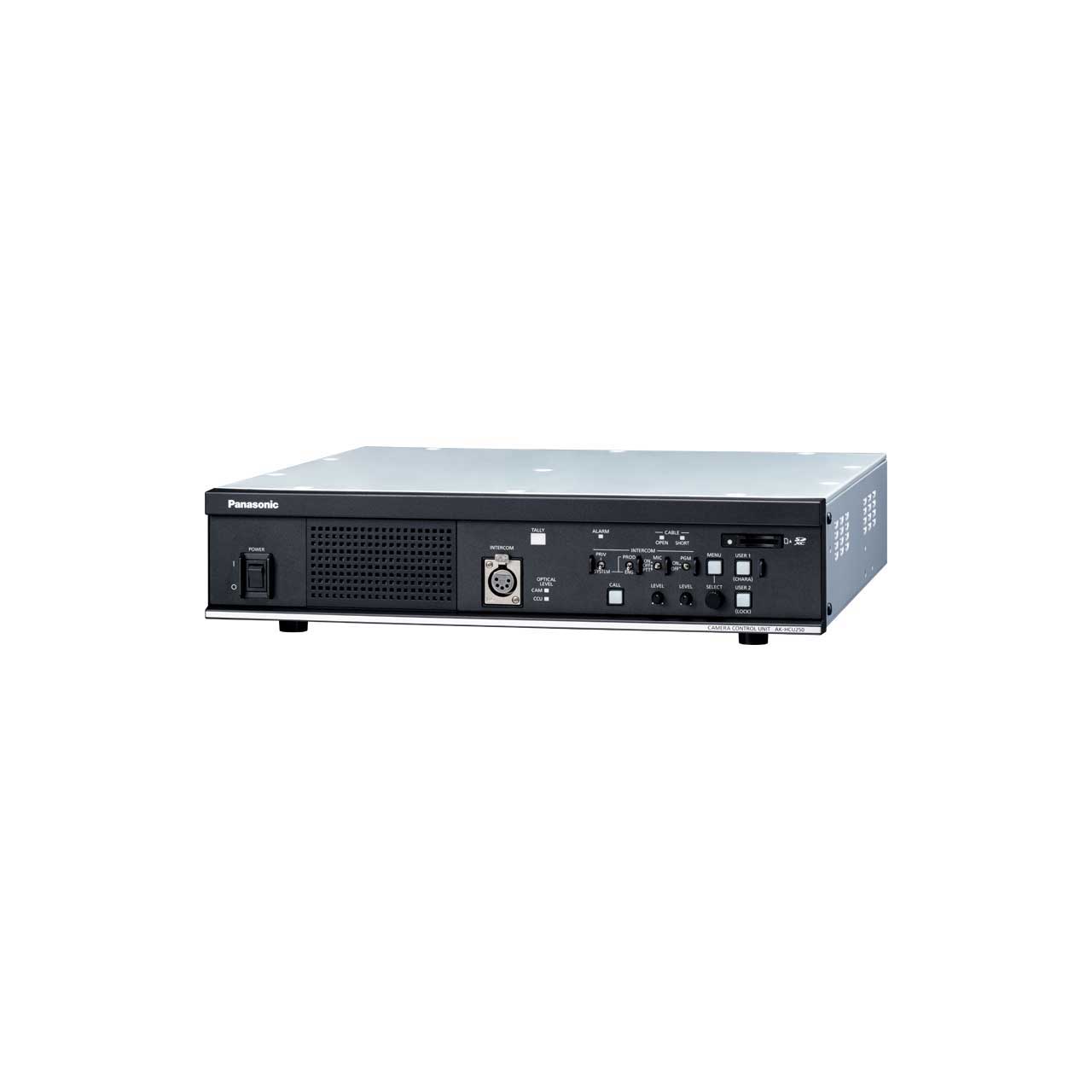

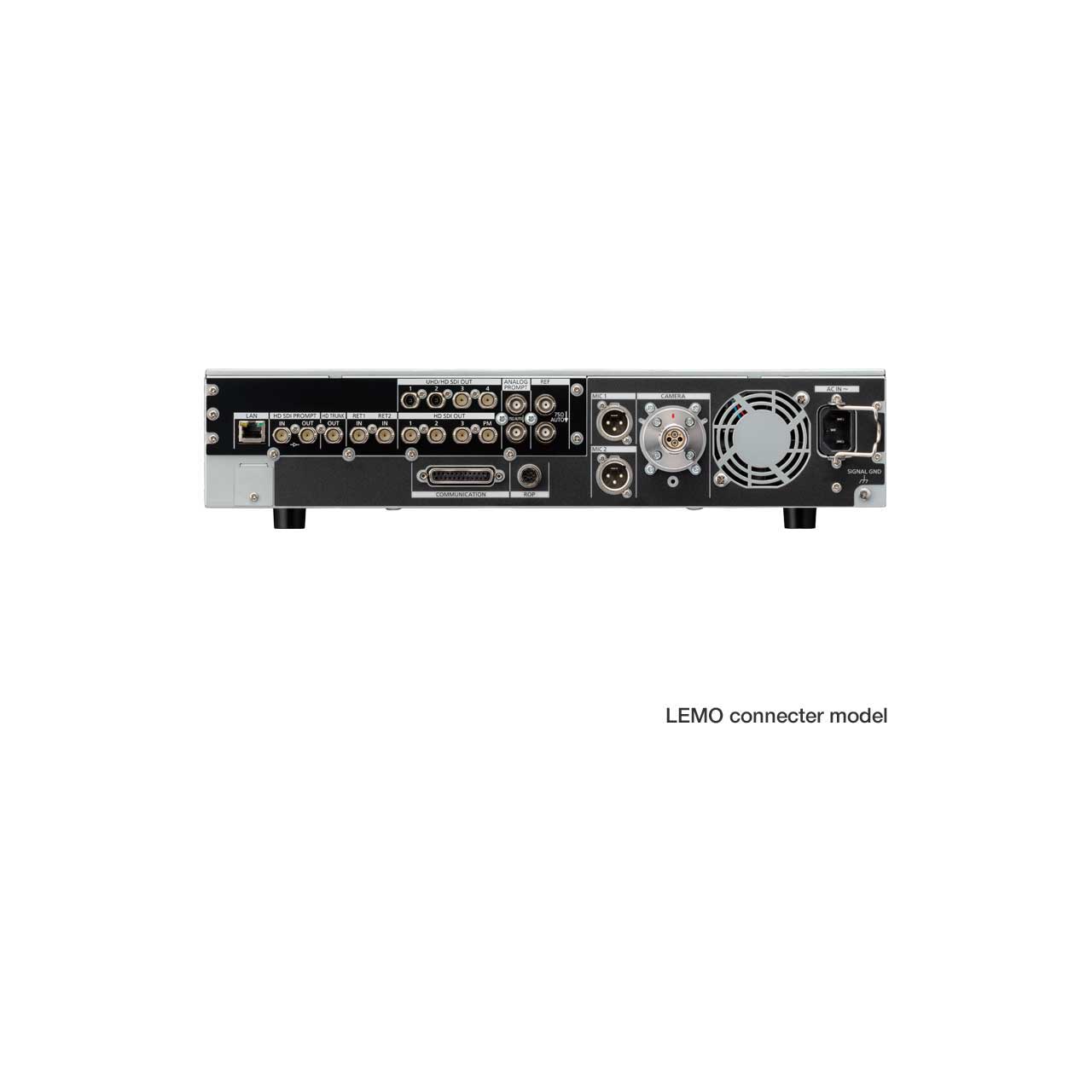

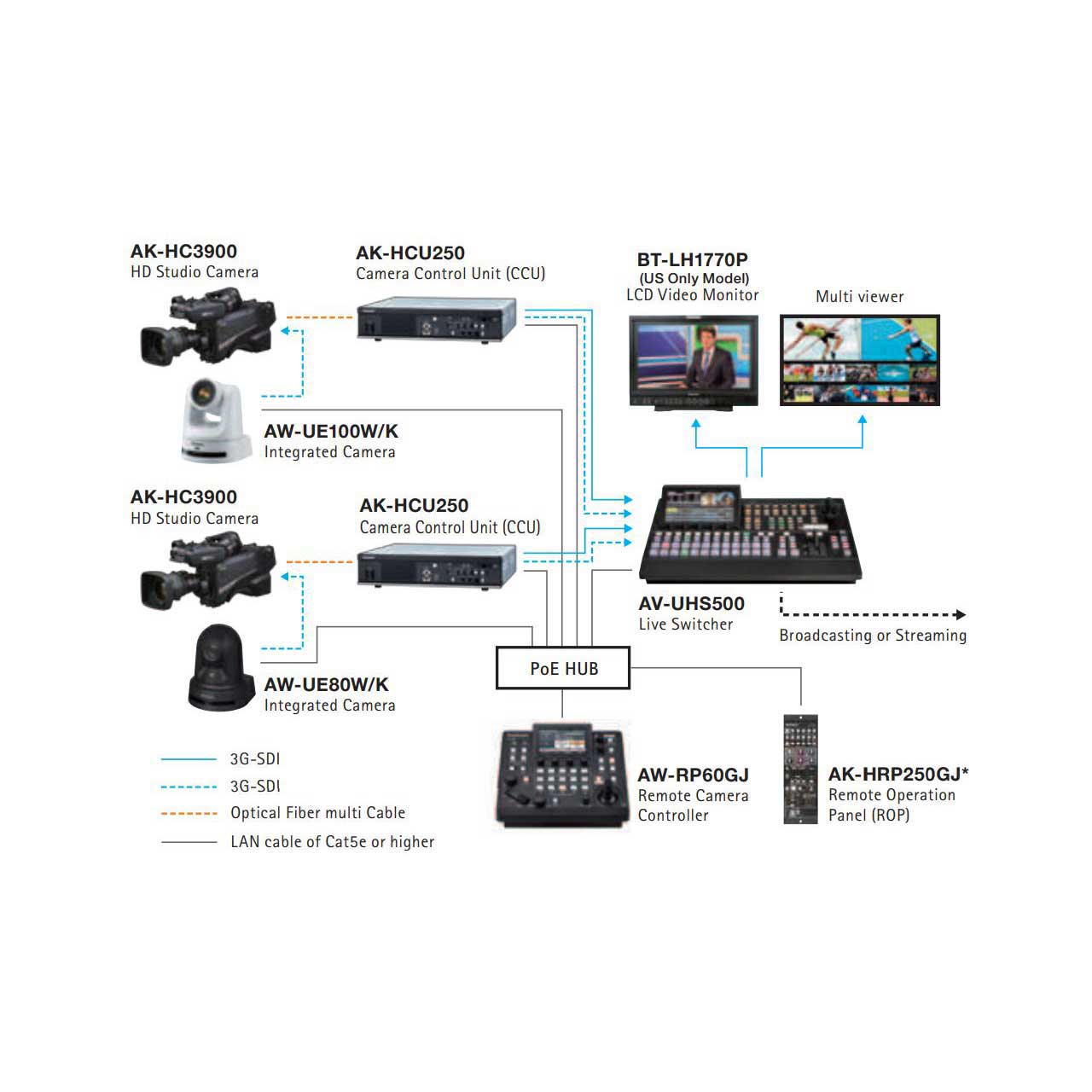

Panasonic AK-HCU250PSJ Camera Control Unit with LEMO Connector

AK-HCU250PSJ - Overview

• Features:

  • Long-distance transmission between camera and CCU is possible.
  • The compact, lightweight unit measures 2U in height and is rack-mountable.
  • RET input (two SDI channels) supported.
  • One intercom line and two audio lines.
  • 3G trunk and 3G prompter circuit between camera and CCU.


• Specifications:

  • General
  • Power Supply:
    - AK-HCU250PJ/HCU250PSJ : 100 V - 120 V AC, 50 Hz/60 Hz
    - AK-HCU250EJ/HCU250ESJ : 100 V - 240 V AC, 50 Hz/60 Hz
    - AK-HCU250PTJ : 100 V - 120 V AC, 50 Hz/60 Hz
  • Current Consumption: 3 A
  • Capacity for Supplying Power to a Camera: DC 190 V , 0.6 A (AK-HCU250PJ/250PSJ/250EJ/250ESJ)
  • Operating Temperature: 32 °F to 104 °F
  • Humidity: 10% to 90% (no condensation)
  • Storage Temperature: -4 °F to 140 °F
  • Weight: Approx. 16.28 lb (main unit only)
  • Dimensions (W x H x D): 16-5/8 inches x 3-7/16 inches x 15-13/16 inches
  • Basic Items
  • System Format: 1920x1080/59.94p/50p/29.97p/25p/23.98p
  • Image Input/Output Sections
  • [HD SDI 1-3] Terminal: BNC x 3 3G/1.5G-SDI: 0.8 V [p-p], 75 ω
  • [HD SDI PM] Terminal: BNC x 1 1.5G-SDI: 0.8 V [p-p], 75 ω
  • [RET IN1-2] Terminal: BNC x 2 (internal FS) 3G/1.5G-SDI: 0.8 V [p-p], 75 ω
  • [HD SDI PROMPTER IN]: Terminal: BNC x 1 (internal FS) 3G/1.5G-SDI: 0.8 V [p-p], 75 ω
  • [HD SDI PROMPTER OUT]: Terminal: BNC x 1 3G/1.5G-SDI: 0.8 V [p-p], 75 ω
  • [HD TRUNK OUT]Terminal: BNC x 1: 3G/1.5G-SDI: 0.8 V [p-p], 75 ω
  • [REF] Terminal:
    - BNC x 2 [Input] 3-value sync/1 V VBS signal [p-p], 75 ω
    - [Loop-through output] 3-value sync/1 V VBS signal [p-p], 75 ω
  • [ANALOG PROMPT IN] Terminal: BNC x 1 / VBS signal: 1 V [p-p], 75 ω
  • [ANALOG PROMPT OUT] Terminal: BNC x 1 / VBS signal: 1 V [p-p], 75 ω
  • Audio Output Sections
  • [MIC1-2] Terminal: XLR x 2, 3-pin male, 0 dBm/600 ω
  • Intercom Section
  • [INTERCOM] Terminal: XLR x 1, 5-pin female
