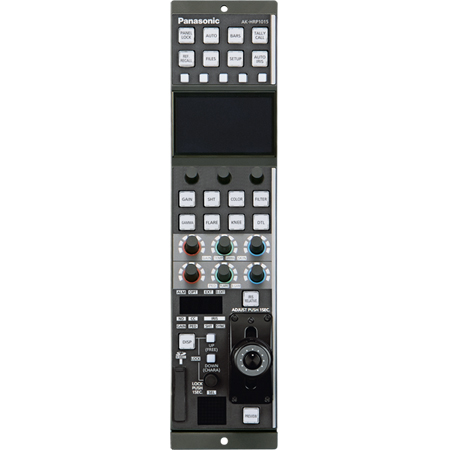

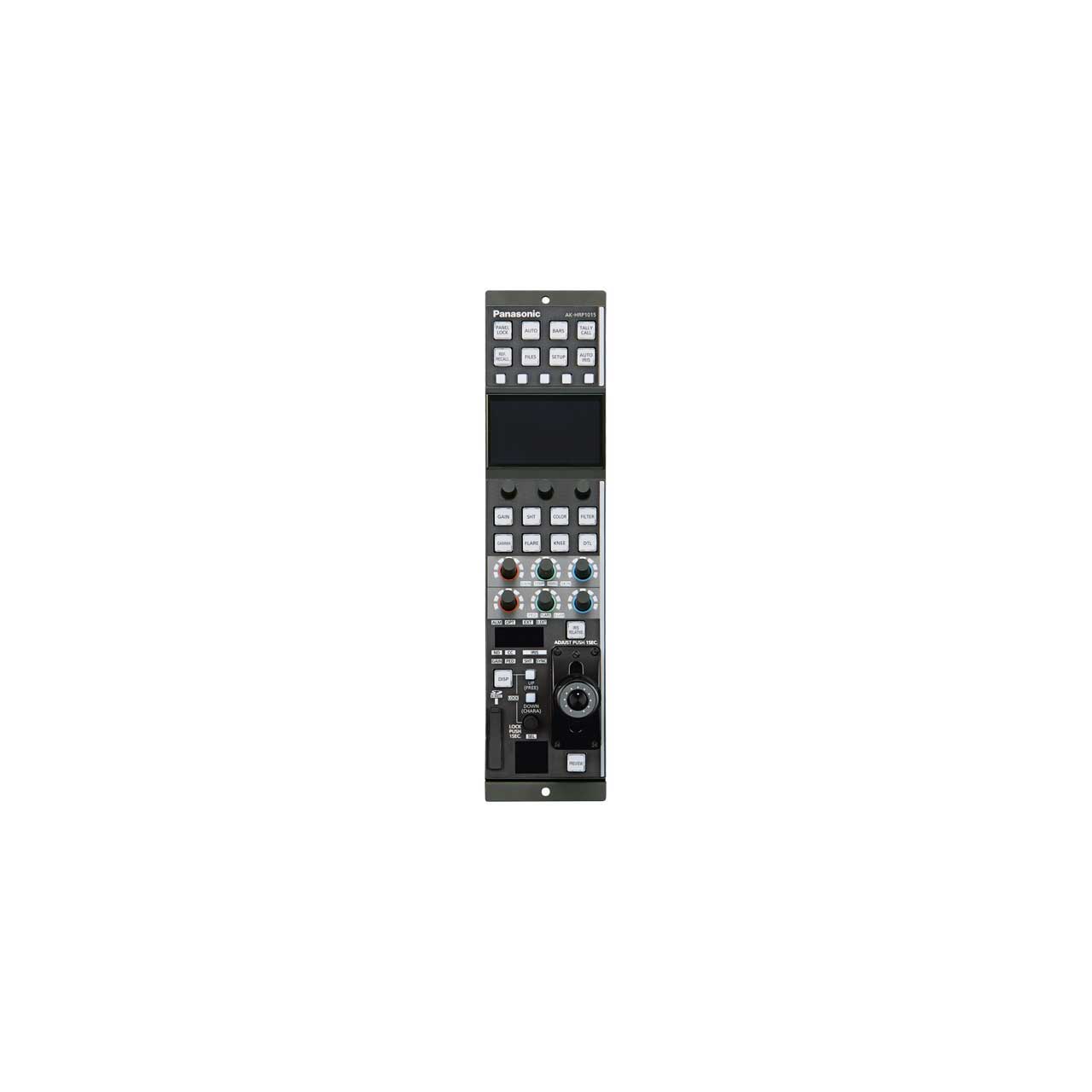

Panasonic AK-HRP1015GJ Narrow Chassis Studio Camera Remote Operation Panel

AK-HRP1015GJ - Overview

• Features:

  • Camera serial control and IP control are possible. Panasonic 4K/HD Integrated Cameras are supported.
  • Equipped with joystick control lever. IRIS/PEDESTAL operation is possible.
  • Equipped with scene file function.
  • Equipped with SD memory card slot. Saving of user files and firmware version updates are supported.

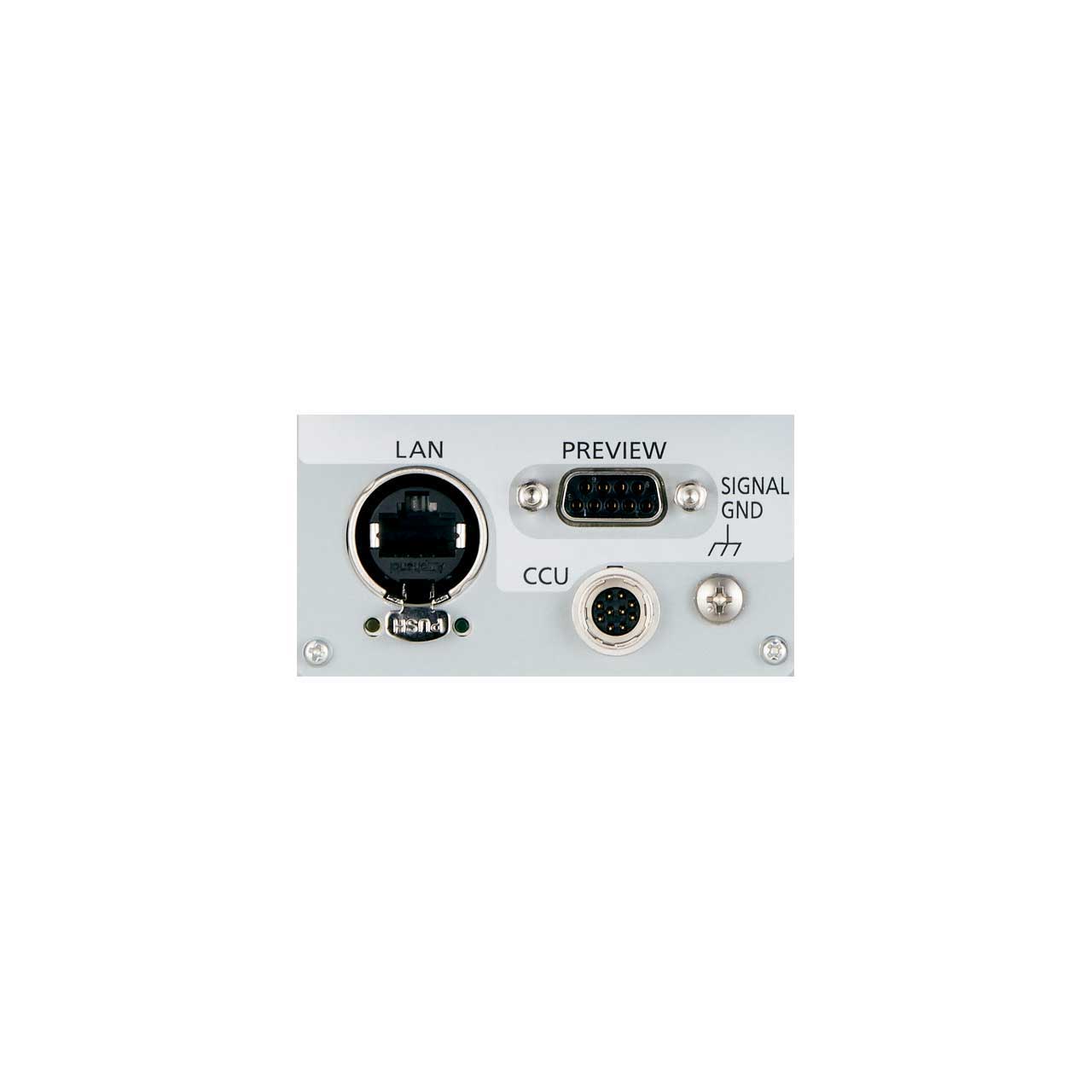

  • IP connection and PoE power supply are supported.


• Specifications:

  • Power Supply:
    - 12 V DC (Power supply from camera: 10 V - 16 V DC)
    - 42 V - 57 V DC (PoE power supply)
  • Power Consumption:
    - 0.44 A (Power supply from camera: 10 V - 16 V DC)
    - 0.11 A (PoE power supply)
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Humidity: 90% or less
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Weight: Approx. 1.5 kg (3.3 lb)
  • Dimensions (W x H x D): 82 mm x 355 mm x 124.4 mm (3-1/4 inches x 14 inches x 4-7/8 inches)
  • Camera/CCU Control
    - Control signals: (camera, CCU control)
    - Power supply: 16 V DC (when CCU connected)
    - 12 V DC (when camera connected)
  • Maximum Cable Length
    - When camera connected: 20 m (65.7 ft)
    When CCU connected: 50 m (164 ft)
