Panasonic PT-REQ10LBU 10000-Lumen WQUXGA Quad Pixel Drive Laser Projector - Black - No Lens

PT-REQ10LBU - Overview

• Features:

  • Dynamic Visuals Take Production to New Heights
  • Effortless Workflow, Improved Expandability
  • New Cabinet Design for Maintenance-Free Operation


• Specifications:

  • Dimensions (W x H x D): 19.62" x 8.34" x 21.18" (498 mm x 212 mm x 538 mm)
  • Resolution: 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON)
  • Operating Environment: Operating temperature: 32°F-113°F (0°C-45°C), operating humidity: 10-80 % (no condensation)
  • Keystone Correction Range: Vertical: +40°, Horizontal: +40° (with supplied lens)
  • Installation: Ceiling/floor, front/rear, free 360-degree installation
  • Cabinet Materials: Molded Plastic
  • Screen Size (Diagonal): 70-700 inches (with supplied lens)
  • Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android
  • Weight: 63.49 lbs (28.8 kg)
  • Contrast Ratio: 20,000:1
  • Power Supply: AC 100-240 V, 50/60 Hz
  • Light Source: Laser Diode

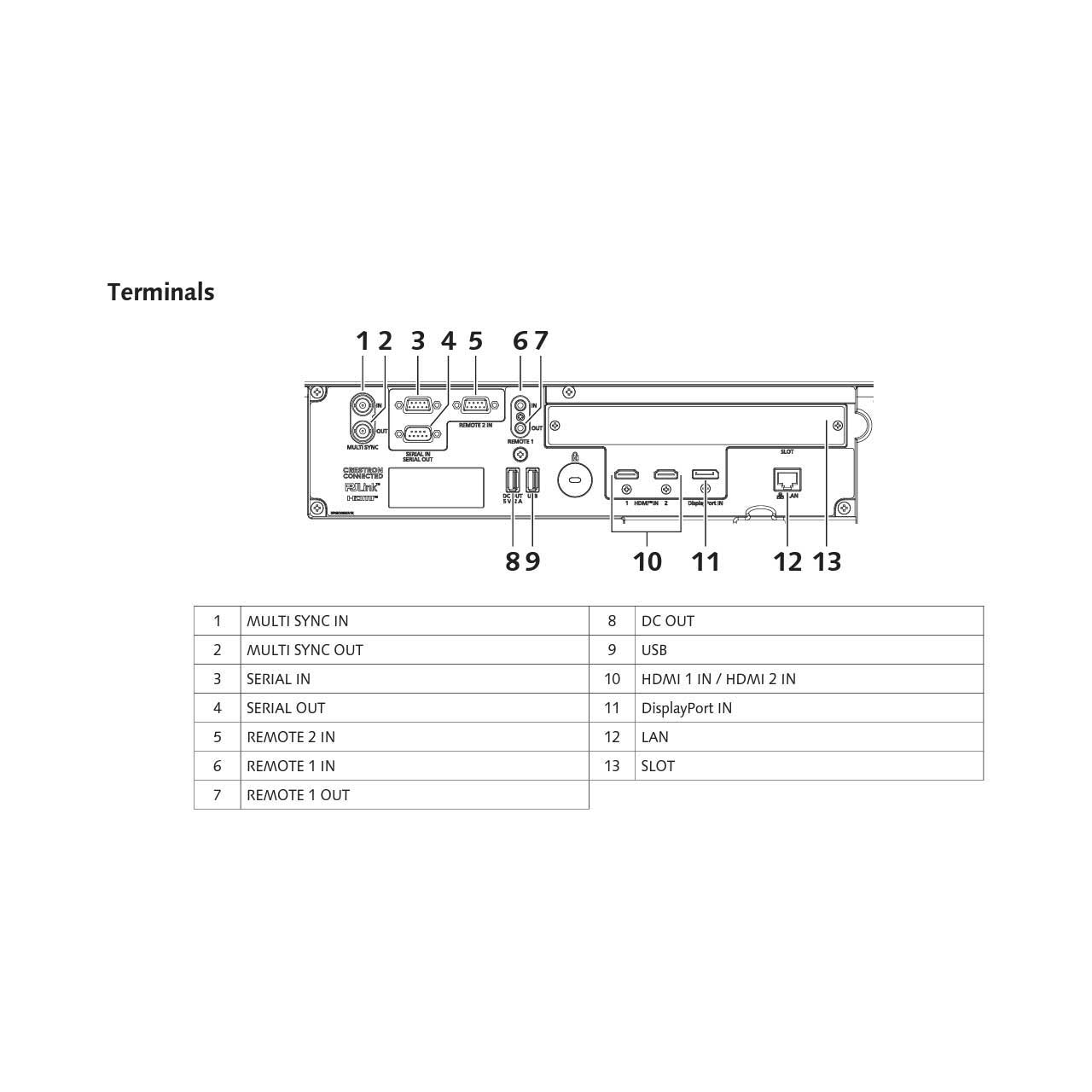

  • Terminals - Serial In: D-sub 9-pin (female) 1x for external control (RS-232C compliant)
  • Terminals - LAN: RJ-45 1x for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
  • Terminals - DC Out: USB Type A 1x (for power supply, DC 5 V, 2 A)
  • DLP chip - Panel Size: 0.8 in diagonal (16:10 aspect ratio)
  • DLP chip - Display Method: DLP chip 1x, DLP Projection System
  • Terminals - Serial Out: D-sub 9-pin (male) 1xM for link control (RS-232C compliant)
  • Terminals - USB USB connector (Type A) 1x for optional AJ-WM50 Series Wireless Module/USB memory
  • Terminals - Remote 2 In: D-sub 9-pin (female) 1x for external control (parallel)
  • Terminals - Expansion Slot: Open slot for for function boards, Intel SDM compatible
  • Terminals - Remote 1: M3 stereo mini-jack 1x for wired remote control
  • Terminals - Remote 1 Out: M3 stereo mini-jack 1x for link control (for wired remote control)
  • Operation Noise: 37 dB (Normal/ECO), 33 dB (Quiet)
  • Projector type: 1-Chip DLP Projectors
  • DLP chip - Number of Pixels: - 2,304,000 (1920 x 1200 pixels)
  • Center-to-corner Zone Ratio: 90%
  • Time until light output declines to 50%: 20,000 hours (Normal/Quiet), 24,000 hours (ECO)
  • Terminals - Multi Sync Out: 1x BNC
  • Light Output: 10,000 lm
  • Protocol Versions: IPv4, IPv6
  • Control function via LAN: Crestron Connected V2, Crestron XiO Cloud, Art-Net DMX, AMX DD, and PJLink™ (Class 2)
  • Terminals - HDMI 1/2 IN: HDMI 2x (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
  • Terminals - DisplayPort: DisplayPort 1x (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
  • Terminals - Multi Sync In: 1x BNC
  • Power Consumption - Maximum Power Consumption: 980 W (10-4.2 A) (1,000 VA) (TBD)
  • Power Consumption - On-mode power consumption (Operating mode) Nomal: 830 W
  • Power Consumption - On-mode power consumption (Operating mode) ECO: 640 W
  • Power Consumption / On-mode power consumption (Operating mode) Quiet: 630 W


• Item Includes:

  • 1x Panasonic PT-REQ10LBU DLP Projector - Lens not included
  • 1x Power Cord
  • 1x Wireless/Wired Remote Control Unit
  • 1x AAA Batteries for Remote
  • 1x SLOT Adaptor


• Warranty:

  • 3-Year Limited Warranty


• GTIN:

  0885170405417
