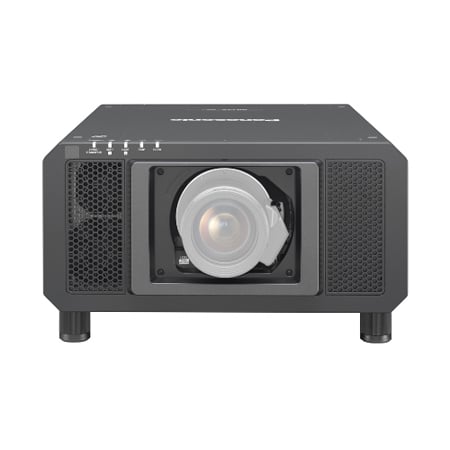

Panasonic PT-RZ14KU 14800 Lumens WUXGA 1900 x 1200 Resolution Compact 3-Chip DLP Laser Projector - Lens Not Included

Name: Panasonic PT-RZ14KU 14800 Lumens WUXGA 1900 x 1200 Resolution Compact 3-Chip DLP Laser Projector - Lens Not Included
Brand: Panasonic
SKU: PAN-PT-RZ14KU
Price: 37880.00 USD
Availability: PreSale

ITEM #: PAN-PT-RZ14KU MFG #: PT-RZ14KU

Panasonic

List Price:

$58,999.00

Our Price:

$37,880.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Shipped truck freight.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PT-RZ14KU - Overview

Evolving from the groundbreaking PT-RQ25KU Series 3-Chip DLP™ Laser Projector Series, the NEW Panasonic PT-RZ14KU 3-Chip DLP™ laser projector is an excellent choice for live event professionals working in tight, close spaces, where flexible projection solutions are needed.

Setting the benchmark for 'live' events with the PT-RZ14KU
Understanding the continued demands for providing captivating, compelling content, simplified set-up, and remote functionality, the PT-RZ14KU projector is designed for venues hosting `live' events, concerts, and festivals, along with theme park and location-based entertainment attractions.

Compelling Visuals That Inspire the Audience
RZ14K combines high brightness, resolution, contrast, and color accuracy for an awe-inspiring visual experience. Dynamic Contrast increases to 25,000:19 and includes new scene analysis circuitry that better recognizes light and dark areas of the image, dramatically enhancing realism. Gradation Smoother provides easy correction of color banding, while the black level function offers control-point border adjustment for curved screens.

Recommended Lens Options: (no lens included with this model) Lens shift (From the origin point of the lens mounter)
- Vertical: ±66% (±52 % with ET-D75LE6/ET-D3LEW60, +71 % / +93 % with ET-D75LE95, ±66 % with ET-D3LEU100, ±57 % with ET-D3LEW200) (powered)
- Horizontal: ±24% (±18 % with ET-D75LE6/ET-D3LEW60, ±14 % with ET-D75LE95, -25 % / +30 % with ET-D3LEU100, ±18 % with ET-D3LEW200) (powered)

Features:
- Approximately 40% smaller and 20% lighter than the previous PT-RZ12K projector
- 14,000lm, 3-Chip DLPT, 25,000:1 Contrast Ratio, and WUXGA Resolution
- Intel® Smart Display Module (Intel® SDM) ready slot, accepting optional Panasonic Connect terminal boards or third-party PC boards and AVoIP boards.
- The Smart Projector Control application and Near Field Communication (NFC) function save time and make it easy to read and change basic setups just by holding a mobile device against the projector's touchpoint.
- Compatible with the existing Panasonic Connect 3-Chip DLP™ lens portfolio.
Specifications:
- Projector type: 3-Chip DLPT projector
- DLP™ chip:
  - Panel size: 20.3 mm (0.8 in) diagonal (16:10 aspect ratio)
  - Display method: DLP™ chip x 3, DLP™ projection system
  - Number of pixels: 2,304,000 (1920 x 1200 pixels) x 3
- Light source: Laser diode
- Light output: 14,000 lm
- Time until light output declines to 50%: 20,000 hours (NORMAL), 24,000 hours (ECO)
- Resolution: WUXGA (1920 x 1200 pixels)
- Contrast ratio: 25,000:1 (Full On/Full Off, Dynamic Contrast [3])
- Screen size (diagonal):
  - 1.78-25.40 m (70-1000 in), 1.78-15.24 m (70-600 in) with ET-D75LE8/ET-D3LET80
  - 3.05-15.24 m (120-600 in) with ET-D75LE95
  - 5.08-15.24 m (200-600 in) with ET-D3LEU100/D3LEW200
- Center-to-corner zone ratio: 90 %
- Recommended Lens Options: (no lens included with this model) Lens shift (From the origin point of the lens mounter)
  - Vertical: ±66% (±52 % with ET-D75LE6/ET-D3LEW60, +71 % / +93 % with ET-D75LE95, ±66 % with ET-D3LEU100, ±57 % with ET-D3LEW200) (powered)
  - Horizontal: ±24% (±18 % with ET-D75LE6/ET-D3LEW60, ±14 % with ET-D75LE95, -25 % / +30 % with ET-D3LEU100, ±18 % with ET-D3LEW200) (powered)
- Installation: Ceiling/floor, front/rear, free 360-degree installation

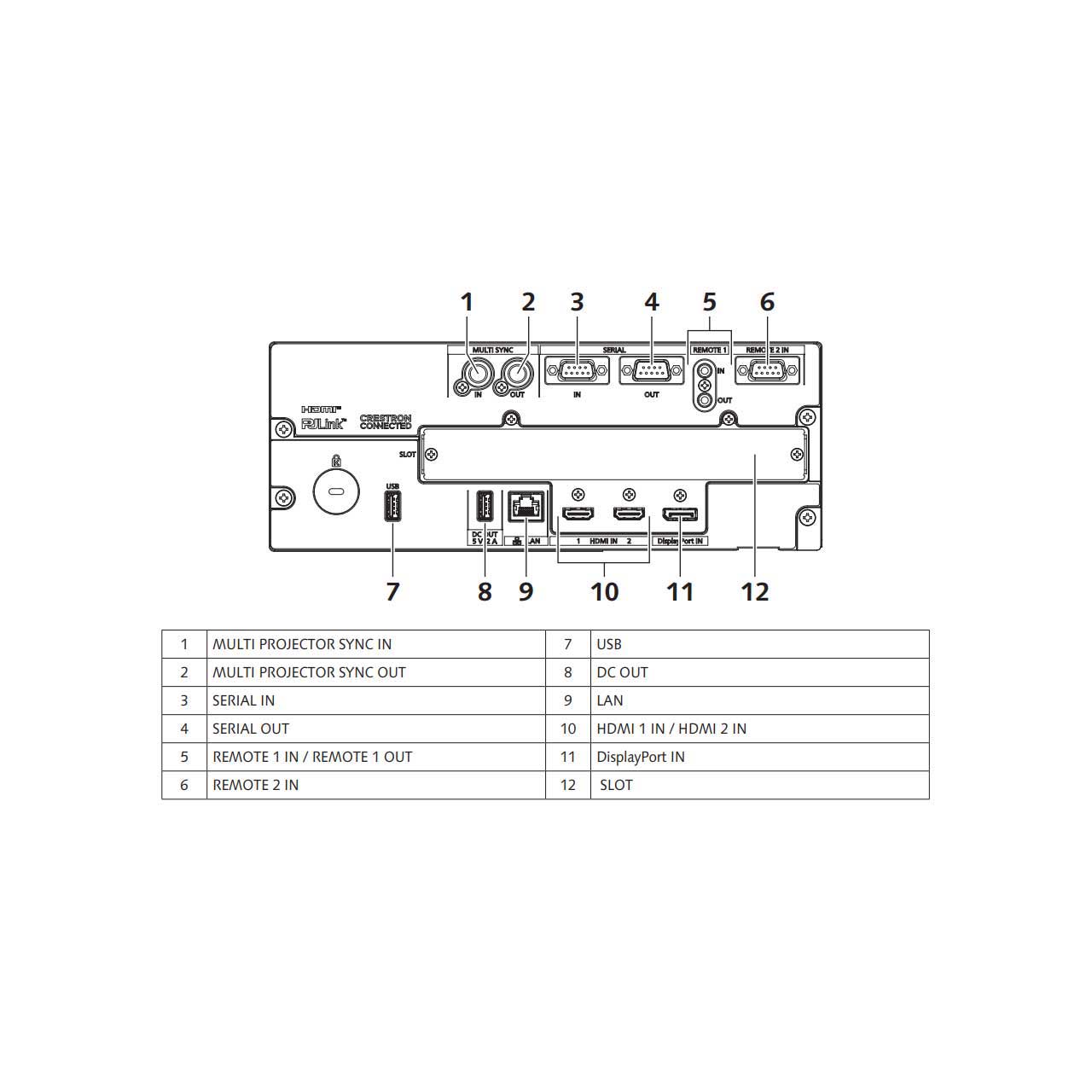

- Terminals:
  - HDMI™ 1/2 IN: HDMI™ x 2 (Deep Color, compatible with HDCP 2.3)
  - DisplayPort™: DisplayPort™ x 1 (Deep Color, compatible with HDCP 2.3)
  - MULTI PROJECTOR SYNC IN/3D SYNC 1 IN/OUT (dual purpose): BNC x 1 (TTL high impedance)
  - MULTI PROJECTOR SYNC OUT/3D SYNC 2 OUT (dual purpose): BNC x 1 (TTL output: Maximum 10 mA)
  - SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
  - SERIAL OUT: D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
  - REMOTE 1 IN: M3 stereo mini-jack x 1 for wired remote control
  - REMOTE 1 OUT: M3 stereo mini-jack x 1 for link control (for wired remote control)
  - REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
  - LAN: RJ-45 x 1 for network connection, PJLinkT (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
  - USB: USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory
  - DC OUT: USB Type A x 1 (for power supply, DC 5 V, 2 A)
  - Expansion slot: Open slot for for function boards, Intelr SDM compatible
- Power supply: AC 100-120 V4 / AC 200-240 V
- Power consumption
  - Maximum power consumption AC 200-240 V: 1,060 W (1,080 VA) (TBD), AC 100-120 V: 1,110 W (1,120 VA) (TBD)
  - On-mode power consumption (Operating mode): [NORMAL]970 W (TBD), [ECO]760 W (TBD)
- Operation noise: 40 dB (NORMAL/ECO) (TBD)
- Dimensions (WxHxD): Approx. 550 x 220 x 570 mm (21 5/8" x 8 11/16" x 22 7/16") (not including protruding parts)
- Weight: Approx. 35 kg (77.2 lbs)
- Operating environment: Operating temperature: 0-45 °C (32-113 °F), operating humidity: 10-80 % (no condensation)
- Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™
Item Includes:
- 1x Power cord
- 1x Lens hole cover
- 1x Wireless/wired remote control unit
- 2x Batteries for remote control (AA/R6 type)
- 1x Lens fixing screw
- 1x SLOT Adapter
Applications:
- Live Events
- Concerts
- Festivals
- Theme Parks
GTIN:
0885170417106
