301580000 - Overview

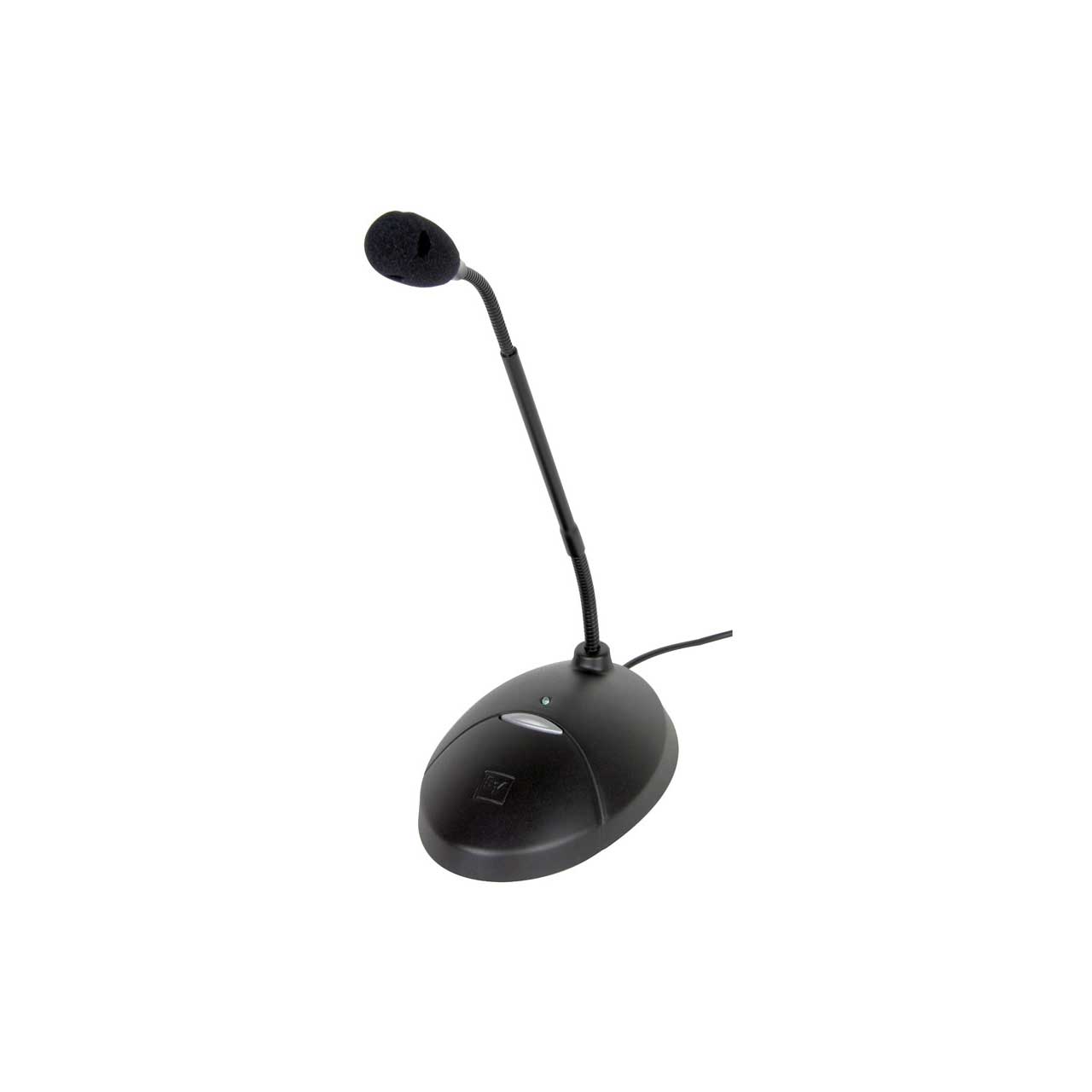

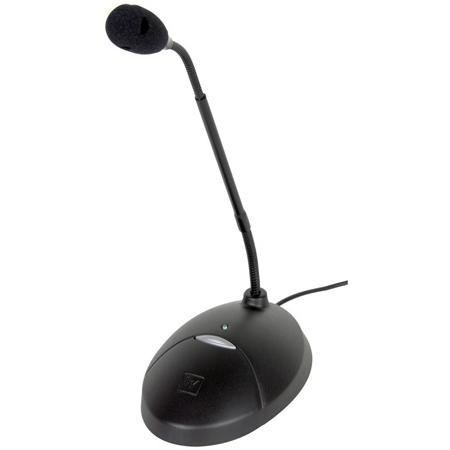

The Electro-Voice PolarChoice Desktop is a high quality tabletop microphone that can be used with both standard and automatic mixers, and is highly-shielded from RFI/GSM thanks to EV's exclusive RF Shield technology.

The PC Desktop features the exclusive EV PolarChoice miniature multi-pattern gooseneck microphone. The multi-pattern versatility of the PolarChoice microphone makes it a true "problem solver". With one non-directional and 3 directional polar patterns available, the PolarChoice microphone is ideal for virtually any installation. The PC Desktop also includes a switchable high pass filter that helps reduce any vibration induced noise pickup.

The PC Desktop features a large push button mute switch that has a much better "feel" than membrane switches. The mute button can be configured for push-on/push-off, push-to-talk, or push-to-mute function. Switch programming is easily accomplished without disassembling the microphone. A switch on the bottom quickly converts the PC Desktop to automatic mixer mode. In this mode, audio is always on.

  • Features:

    • RF Shield provides superior RFI/GSM shielding
    • Multi-pattern versatility. Choose between omni, cardioid, supercardioid or hypercardioid to easily adapt to any situation.
    • Consistent microphone voicing across all four patterns
    • Switch can be programmed to operate as either latching on/off or momentary push-to-mute/push-to-talk
    • Disassembly of the mic isn't required to change switch functions
    • Compatible with echo cancellation for conference applications
    • High visibility blue LED clearly displays mic status to the user
    • Exceptional sound quality with EV's proven PolarChoice design

  • Specifications:

    • Generation Element: Dual condenser, back electret
    • Frequency Response: 50Hz - 20kHz
    • Polar Patterns: Omnidirectional, Cardioid, Supercardioid, Hypercardioid
    • Sensitivity: Open Circuit Voltage, 1kHz: 5.6mV/ Pascal
    • Clipping Level (1% THD): >127dB SPL
    • Equivalent Noise: <26dB SPL "A" weighted (0dB = 20 micropascals)
    • Dynamic Range: >101dB
    • Output Impedance, 1kHz: 200Ω
    • Power Requirements: Phantom, 12 - 52 VDC
    • Current Consumption: < 5mA with P48 supply
    • Polarity: Pin 2 positive, referenced to pin 3, with positive pressure on the diaphragm
    • Cable: 10-foot, 5-conductor (2-conductor shielded) black cable, terminated with a professional 3-pin male XLR style connector with gold plated pins
    • Logic Levels: Standard TTL levels for switch out and LED Control
      5 Volts = Logic High
      0 Volts = Logic Low
    • Dimensions:
      Base (LxWxH): 6.9" x 4.6" x 2.2" (175mm x 117mm x 56mm)
      Gooseneck Length: 18.5" (470mm)
      Maximum Head Diameter: 0.58" (14.6mm)
      Gooseneck Diameter: 0.25" (6.4mm)
      Lower Section: 0.31" (7.9mm)
    • Accessories Furnished: Windscreen
    • Optional Accessories: WS-PC1 large windscreen
    • Color: Nonreflecting black
    • Net Weight: 25.8oz (730g)
    • Shipping Weight: 39.2oz (1111g)

  • GTIN:

    0800549416832
