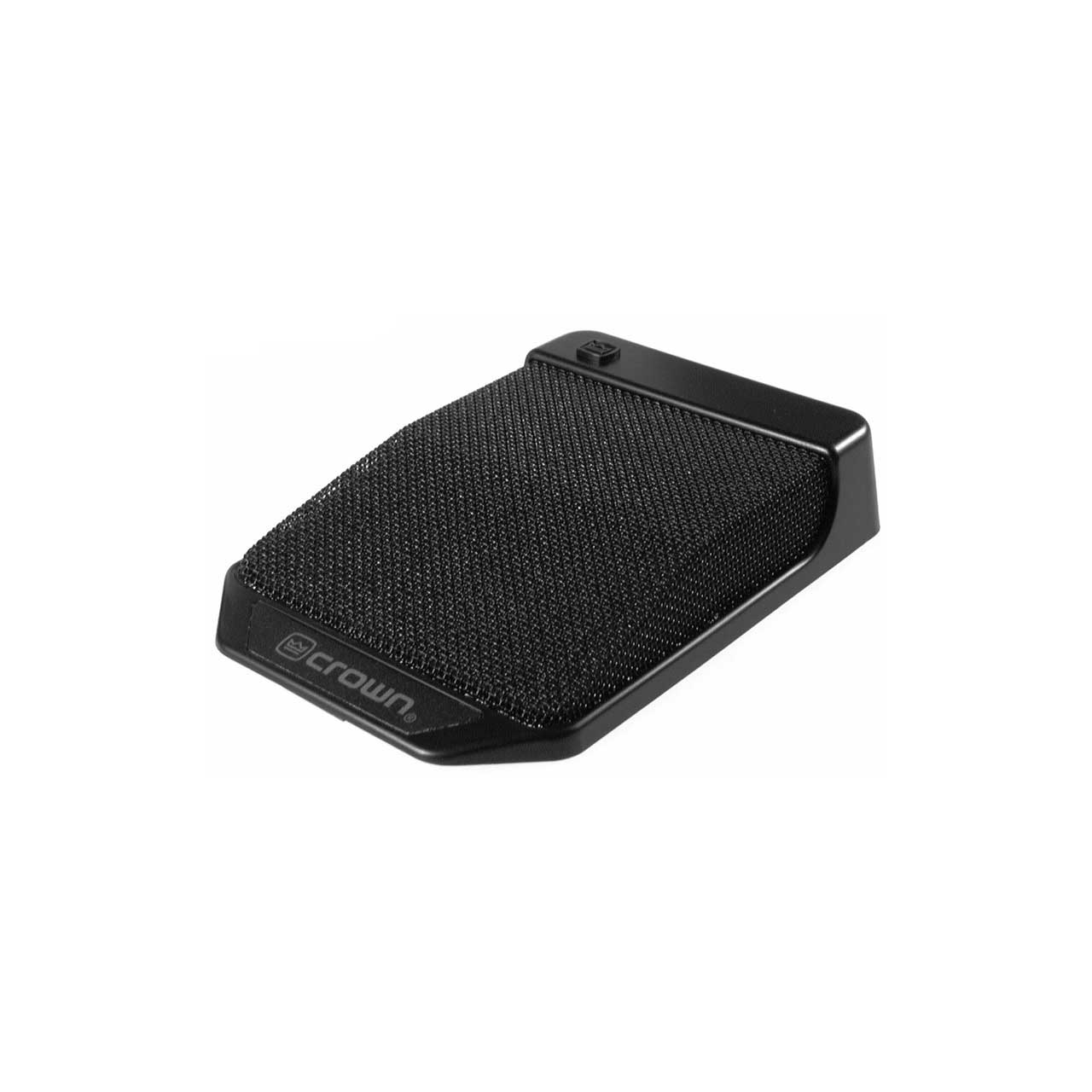

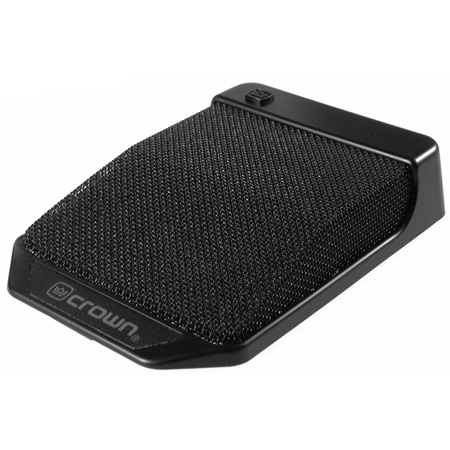

Crown PCC-170 Phase Coherent Cardioid Microphone

ITEM #: PCC-170 MFG #: PCC-170

Primary Image
Crown International
Free Shipping with $49 Minimum Order

List Price:

$546.36

Our Price:

$435.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

PCC-170 - Overview

The Crown PCC-170 is a surface mounted super cardioid microphone of professional quality. This handsomely styled unit is appropriate for use on the most elegant boardroom table or lectern. Other applications include churches, courtrooms and council chambers.

Because of its highly directional pickup pattern, thePCC-170 minimizes background noise and feedback.The microphone reproduces the voice with a clean, clear and natural sound.

Since the microphone capsule is placed on a boundary or surface, direct and reflected sounds arrive at the diaphragm in-phase. This coherent addition of direct and reflected waves increases sensitivity 6 dB and prevents phase cancellations. The mic capsule is small enough to ensure phase coherency up to the highest frequencies in the audible spectrum, resulting in a wide, smooth frequency response free of phase interference.Clarity and reach are also enhanced.

Self-contained electronics eliminate the need for an in-line preamp. Powered by 12-48V phantom power, the PCC-170 has a low-impedance mic level balanced output which permits long cable runs without hum pickup or high-frequency loss.

  • Features:

    • Perfect for multi miking applications in teleconferencing, distance learning, boardrooms and courtrooms
    • Phase Coherent Cardioid design prevents coloration from surface sound reflections
    • Half-supercardioid polar pattern reduces ambient noise and room reverberation
    • Small and inconspicuous


  • Specifications:

    • Specifications
    • Type: Phase Coherent Cardioid.
    • Element: Electret condenser.
    • Frequency response (typical): 50 Hz to 20,000 Hz at
    • 30 degrees incidence to surface (see Fig. 1).
    • Polar pattern: Half-supercardioid (supercardioid in
    • the hemisphere above the primary boundary). See
    • Figs. 2 and 3.
    • Impedance: 150 ohms, balanced (recommended load
    • impedance 1000 ohms or greater).
    • Open circuit sensitivity (typical): 22 mV/Pa* ( -33 dB
    • re 1 volt/Pa).
    • Power sensitivity: -30.5 dB re 1 mW/Pa*. EIA rating
    • -125 dBm.
    • Equivalent noise level (self-noise): 22 dB SPL typical
    • (0 dB = .0002 dyne/cm2), A-weighted.
    • S/N ratio: 72 dB at 94 dB SPL.
    • Maximum SPL: 120 dB SPL produces 3% THD.
    • Polarity: Positive pressure on the diaphragm produces
    • positive voltage on pin 2 with respect to pin 3.
    • Operating voltage: Phantom power, 12 to 48 volts DC
    • on pins 2 and 3 with respect to pin 1.
    • Current drain: 4 mA nominal.
    • Connector: Switchcraft TB3M in model PCC-170.
    • Bottom-mounted 0.25-in. (0.635-cm) stereo
    • phone plug in model PCC-170/SPP. See Fig. 7.
    • Cable: 15-foot, black, two-conductor shielded cable
    • with Switchcraft TA3F and A3M connectors. No
    • cable supplied with SPP option.
    • Materials: High-impact molded plastic and steel
    • mesh grille.
    • Finish: PCC-170: black. PCC-170W: off-white.
    • Net weight: 6 oz. (170 g).
    • Dimensions: See Figs. 4 and 7.
    • Optional accessories: Crown PH-1A phantom power
    • supply (single channel, battery or AC adapter
    • powered).
    • *1 pascal = 10 dynes/cm2 = 10 mic


  • Warranty:

    • Crown products are covered by a 6 Year Warranty
