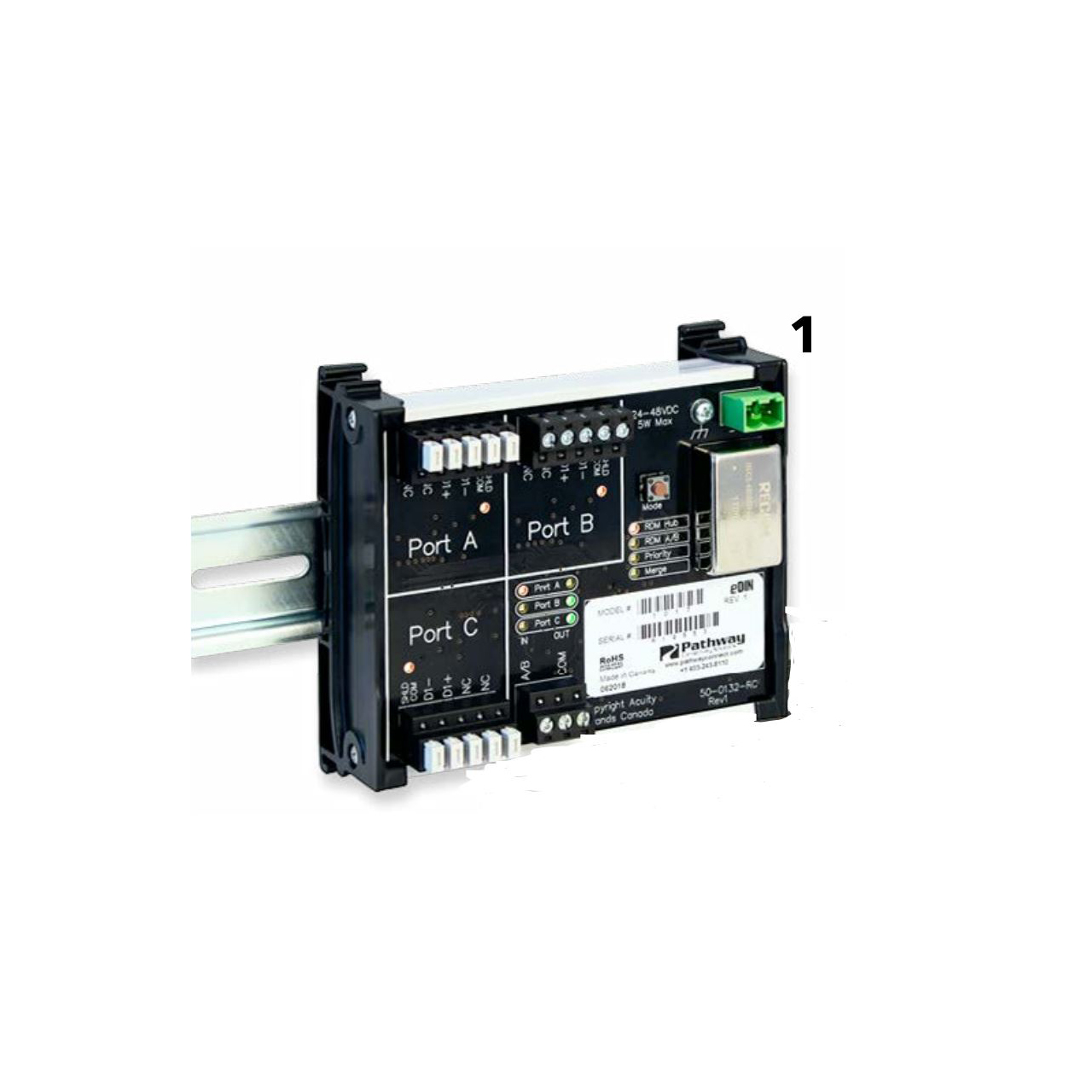

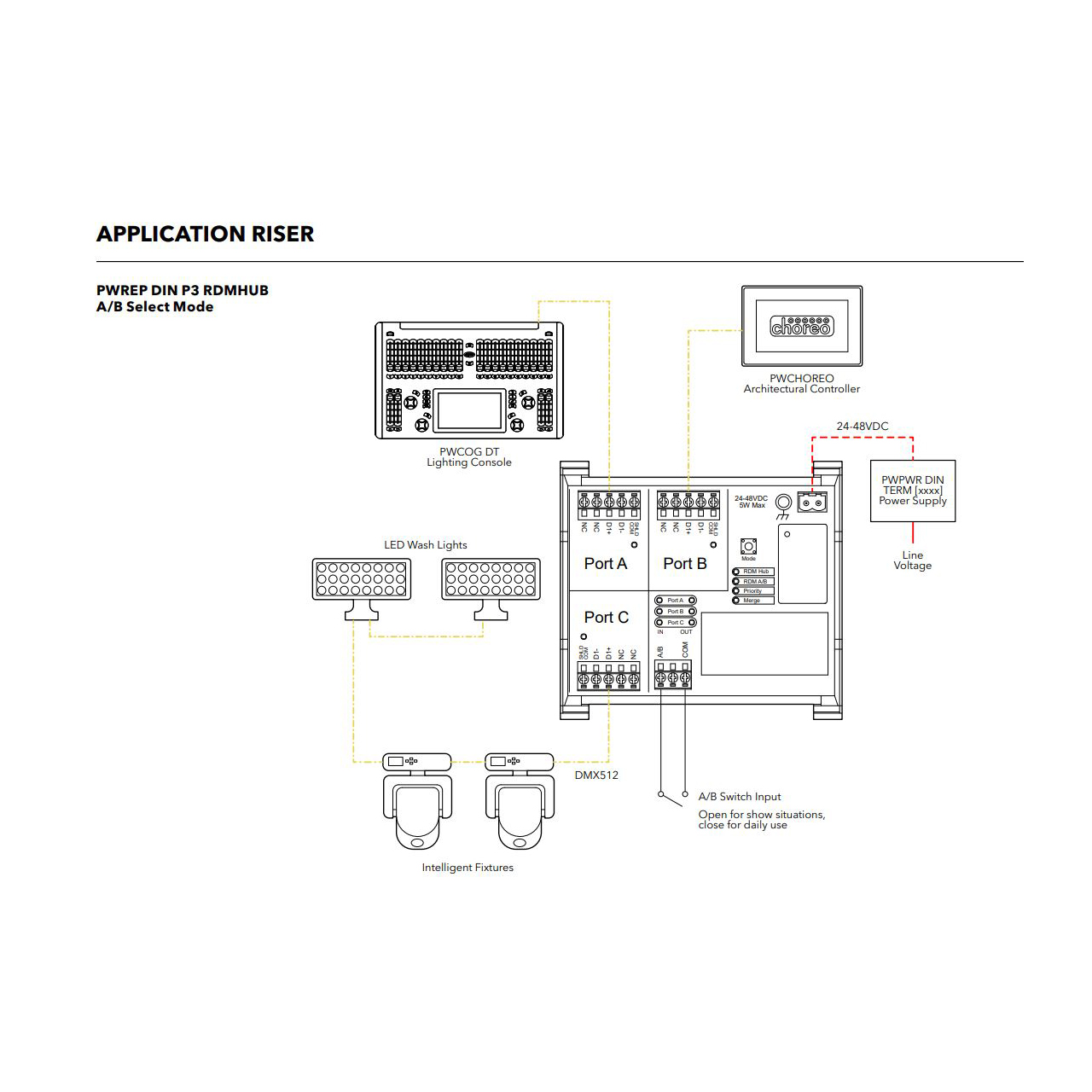

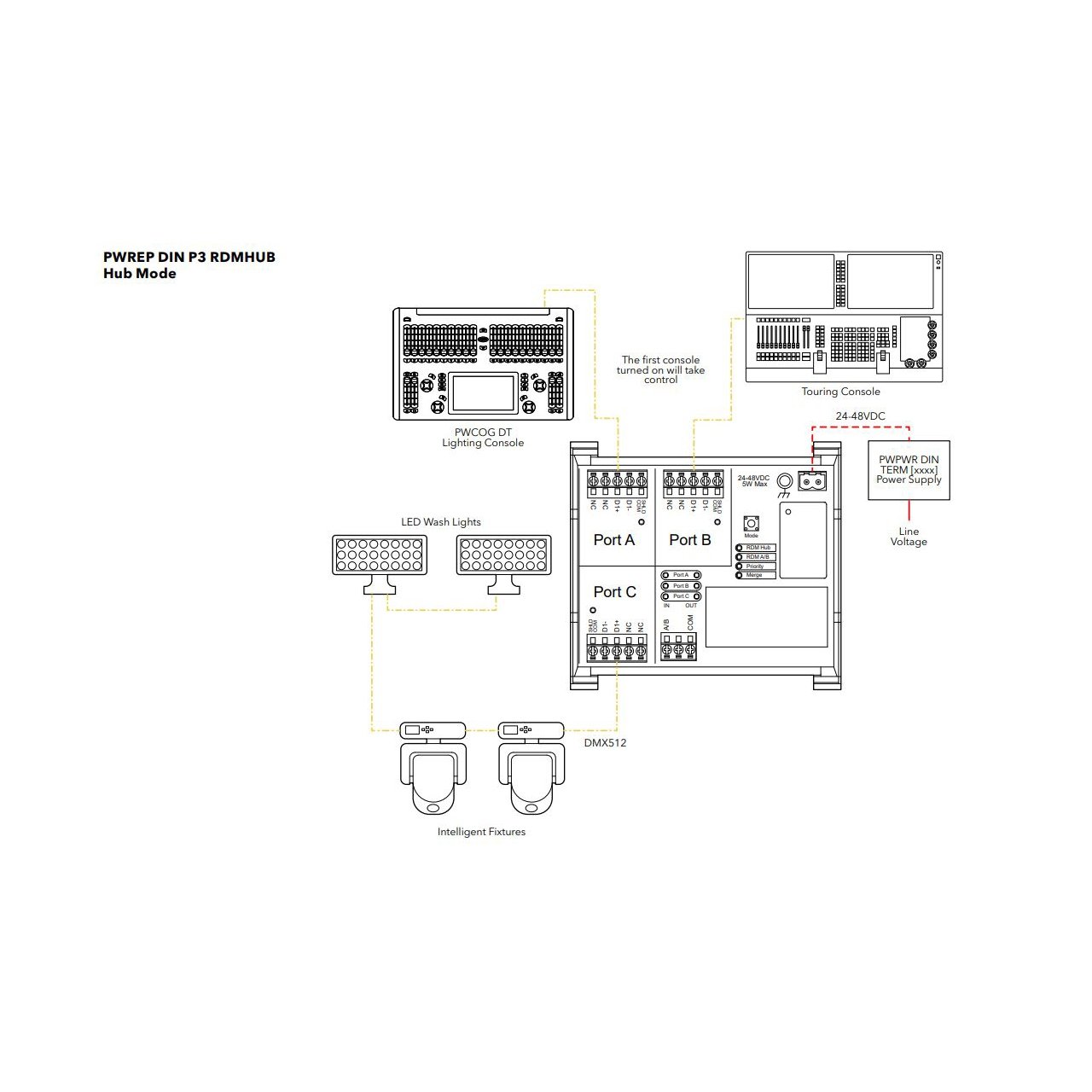

The Pathway Connectivity PWREP DIN P3 RDMHUB DMX/RDM Merger allows merging and switching between two DMX sources in a one universe system. Through the use of automatic DMX512 sensing, across four operating modes, any port may detect a roving DMX512 source and act as an input while the other two Port output the single; or two inputs may be merged together; or the user may select between inputs; or a priority scheme may be invoked. The module is RDM discoverable and configurable, as well as daisy-chainable.
The Pathway DMX Repeater series of opto-splitters are an essential component of DMX distribution systems, permitting star-wiring configurations while isolating and protecting equipment from electrical faults. The RDM model supports the bi-directional communication standard E1.20 Remote Device Management (RDM). The 3 and 8-Port Merger & Hub bring flexibility to single-universe DMX512 distribution systems. Through the use of automatic signal sensing across four operating modes, any port may detect incoming DMX signals and act as an input; two inputs may be merged; the user may manually select between two inputs; or a priority scheme may be invoked.
