Phabrix PHQXP01E-3G-V QxP 3RU SD/HD/2K 10GbE IP/SDI Waveform Monitor/Analyzer - Eye/Jitter - V-mount

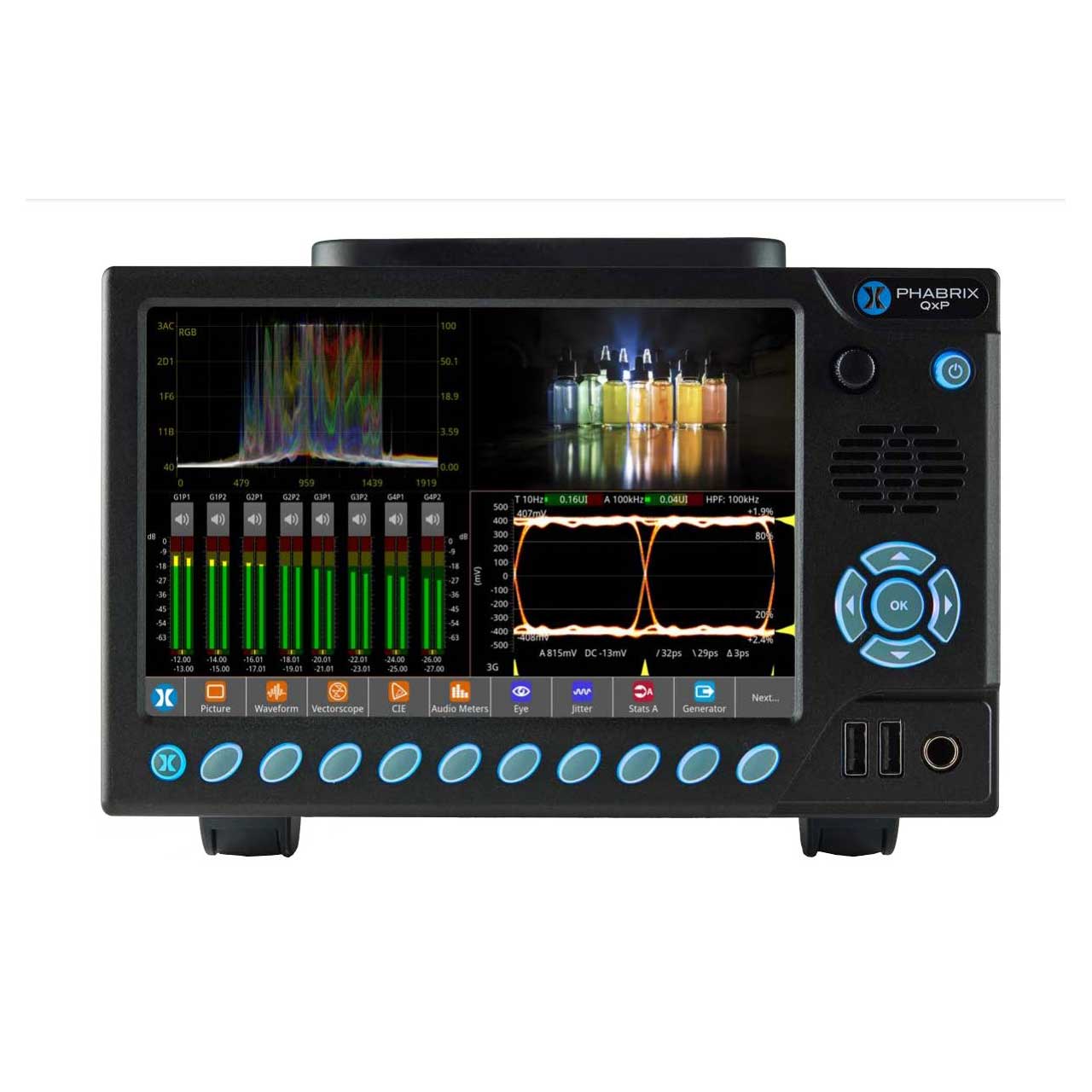

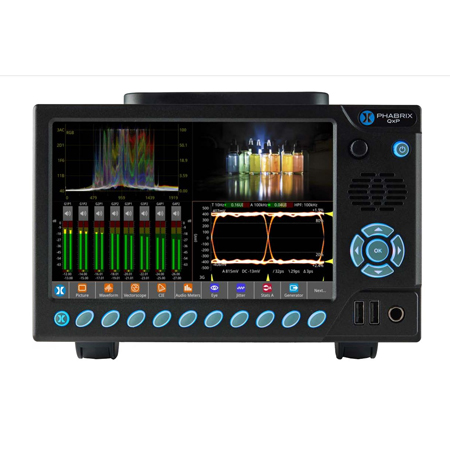

PHABRIX is pleased to present its first example of a traditional ‘Waveform Monitor’ - but with a twist. Inheriting all of the class leading features and flexibility of the QxL Rasterizer the QxP features an integral 3RU multitouch LCD screen and an integral V-Mount or G-Mount battery plate, integral mains PSU and 12v external DC input. You now have 12G SDI and 25G ST 2110 compliance monitoring in a portable form factor using industry standard Camera Batteries*.
With its class-leading Waveforms, the QxP is equally at home on-set in SDR or HDR Productions, Grading, Shading, or QC, MCR, Engineering and R&D environments. The user is free to use the integral screen, or plug in an external HDMI monitor and use the flexible tool layout to view up to 16 instruments simultaneously. A rich set of remote access options including NoVNC and the UI as a 2110-20 flow provides all of the ‘headless’ operational flexibility of a conventional Rasterizer.
The QxP includes SMPTE ST 2110, 2022-6 and a wide range of formats as standard. In-field upgrades are available for a rich set of options: UHD/4K, IP-MEAS, HDR, Dolby E decode, PCAP capture, EUHD and extensive AV-ANC test signal generation. Factory-fitted options provide SDI interfaces or RTE™ real-time SDI eye and jitter analysis, with an engineering grade data view and an optional, advanced SDI-STRESS toolset.
For real-time IP workflows the QxP supports simultaneous Generation and Analysis of HD/3G/UHD/EUHD 2110 payloads on generic SFP28/25 GbE interfaces, with ST 2022-7 Seamless IP Protection Switching (SIPS) and independent PTP followers on both media ports for fully-redundant media network operation - all with AMWA NMOS IS-04 and IS-05.
Whether working in HD, UHD, SDR, HDR, SDI or IP, conventional or remote production, the QxP combines the user-configurability and advanced tools required for full operational flexibility when transitioning to next generation workflows.
*Batteries not included
